Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

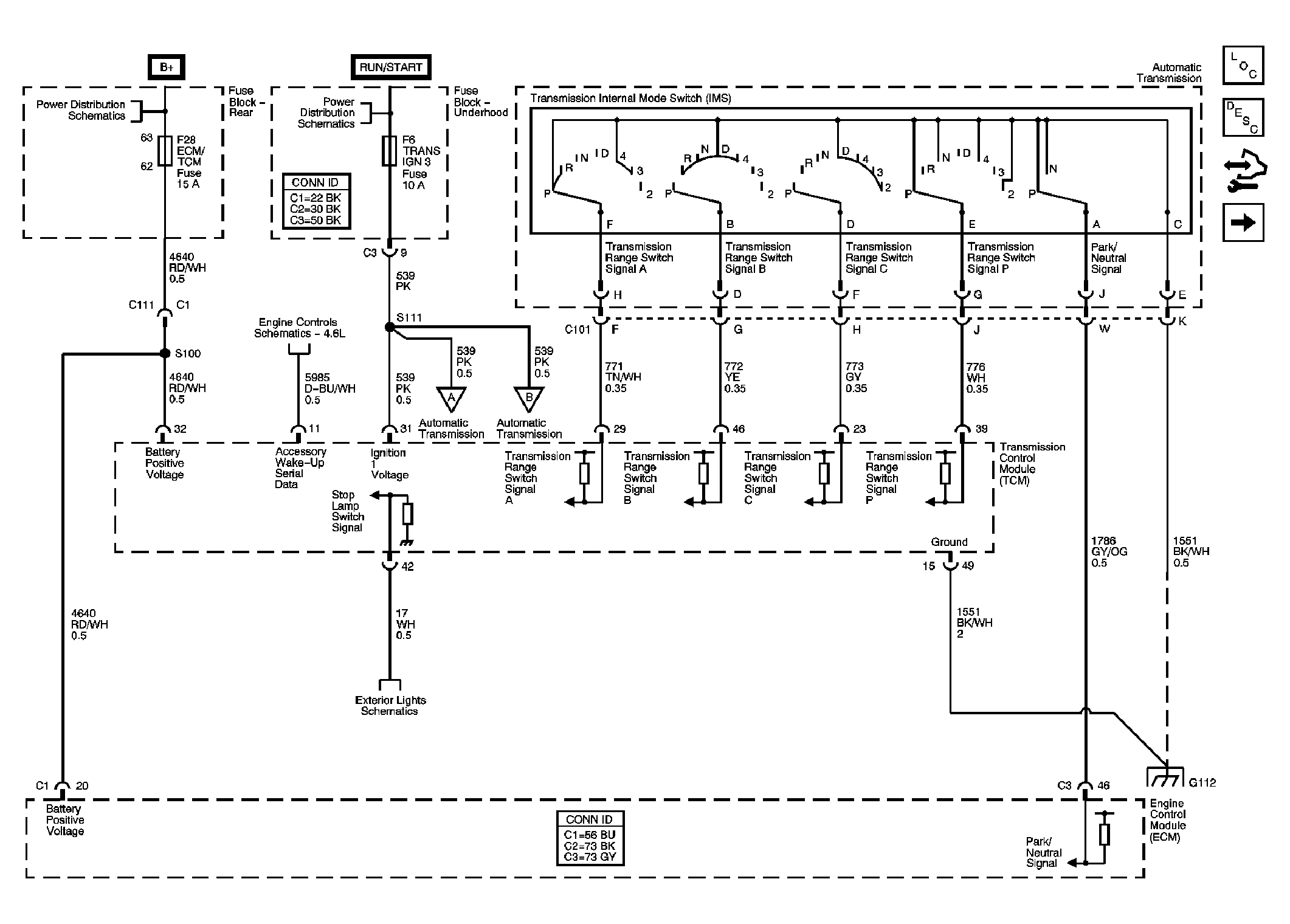

Fig 1: TCM Power Ground
GM1792057Courtesy of GENERAL MOTORS CORP.

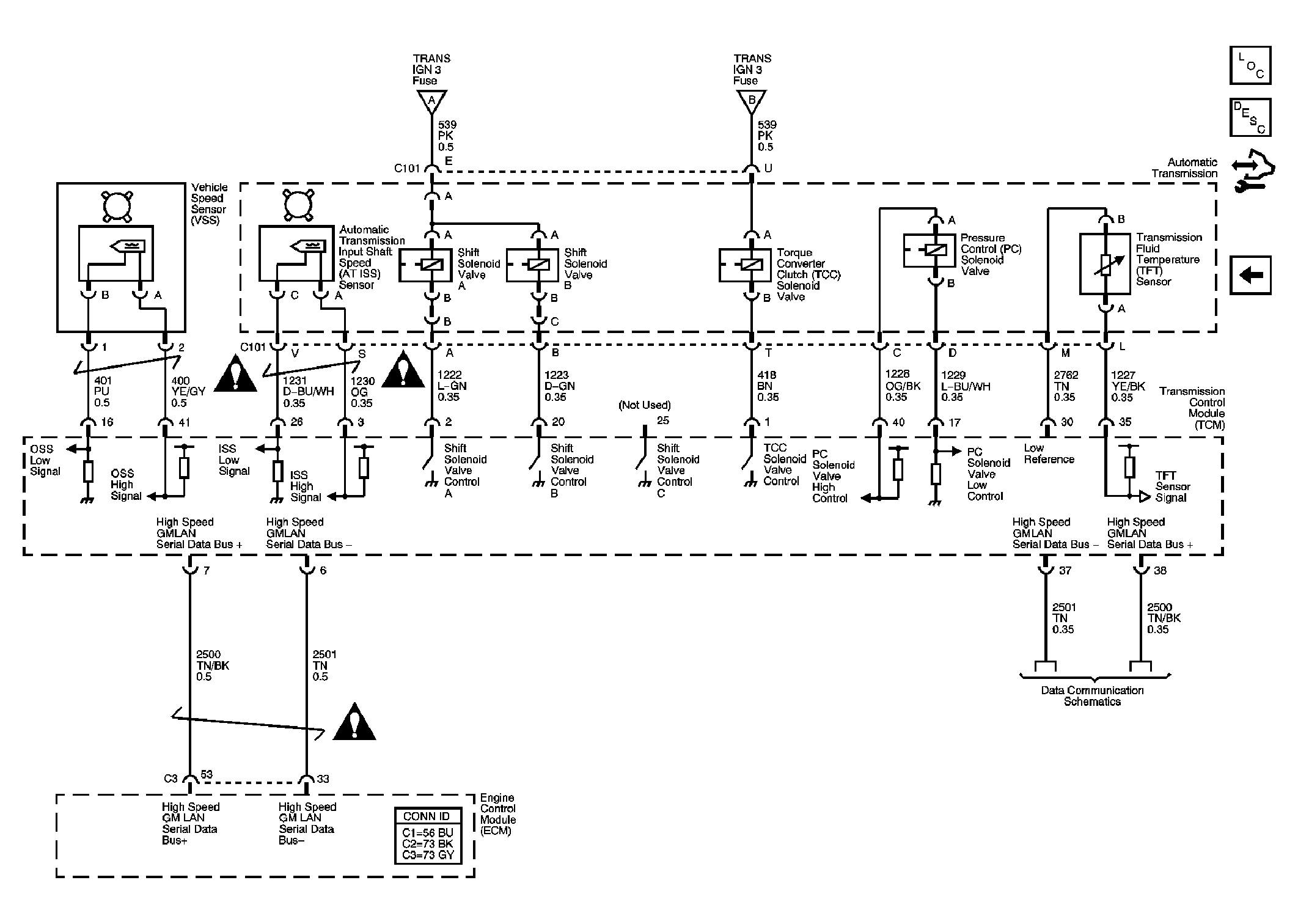

Fig 2: Transmission Solenoids and VSS
GM1792073Courtesy of GENERAL MOTORS CORP.
