Transaxle Brace Replacement (Transmission to Engine Head)

WARNING: This page is about a different variant/trim than selected.

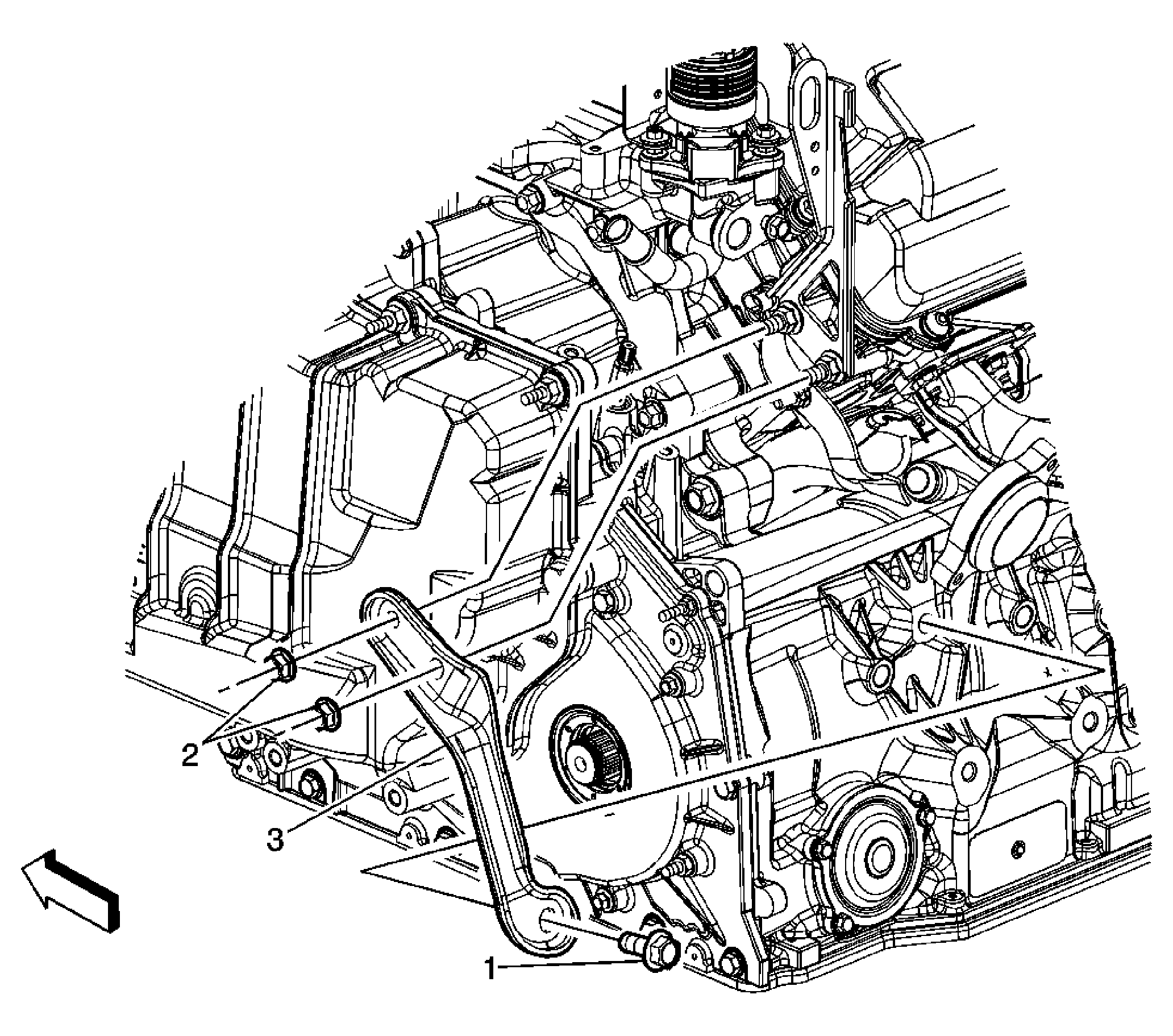

Fig 1: Identifying Transmission-To-Engine Head Brace
GM1684593Courtesy of GENERAL MOTORS CORP.
Transaxle Brace Replacement (Transmission to Engine Head)

Callout Component Name
Preliminary Procedures:
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement in the 4.6L engine.
1 Transaxle Brace Bolt
Tip:  Raise vehicle for better access to bolt. Refer to Lifting and Jacking the Vehicle .
NOTE: Refer to Fastener Notice .

Tighten:  120 N.m (89 lb ft)
2 Transaxle Brace Nuts (Qty: 2)

Tighten:  50 N.m (37 lb ft)
3 Transaxle Brace
