Second Clutch Plates and Reverse Clutch Removal

WARNING: This page is about a different variant/trim than selected.

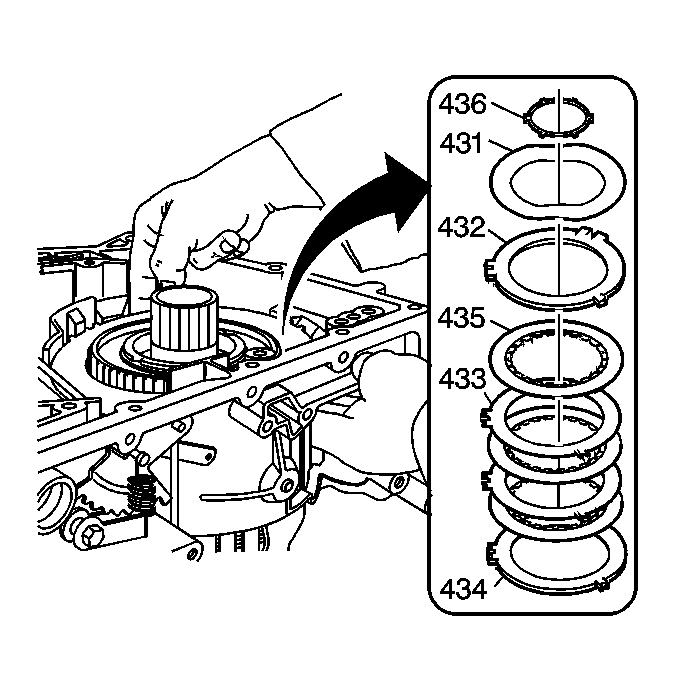

    Fig 1: View Of Second Clutch Plates
    GM11867Courtesy of GENERAL MOTORS CORP.
  1. Remove the second clutch steel assembly (431-435). Push up near the scavenge tube channel and the bottom pan side.
  2. Remove the reverse clutch support thrust washer (436).
