Overdrive Range, Second Gear - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

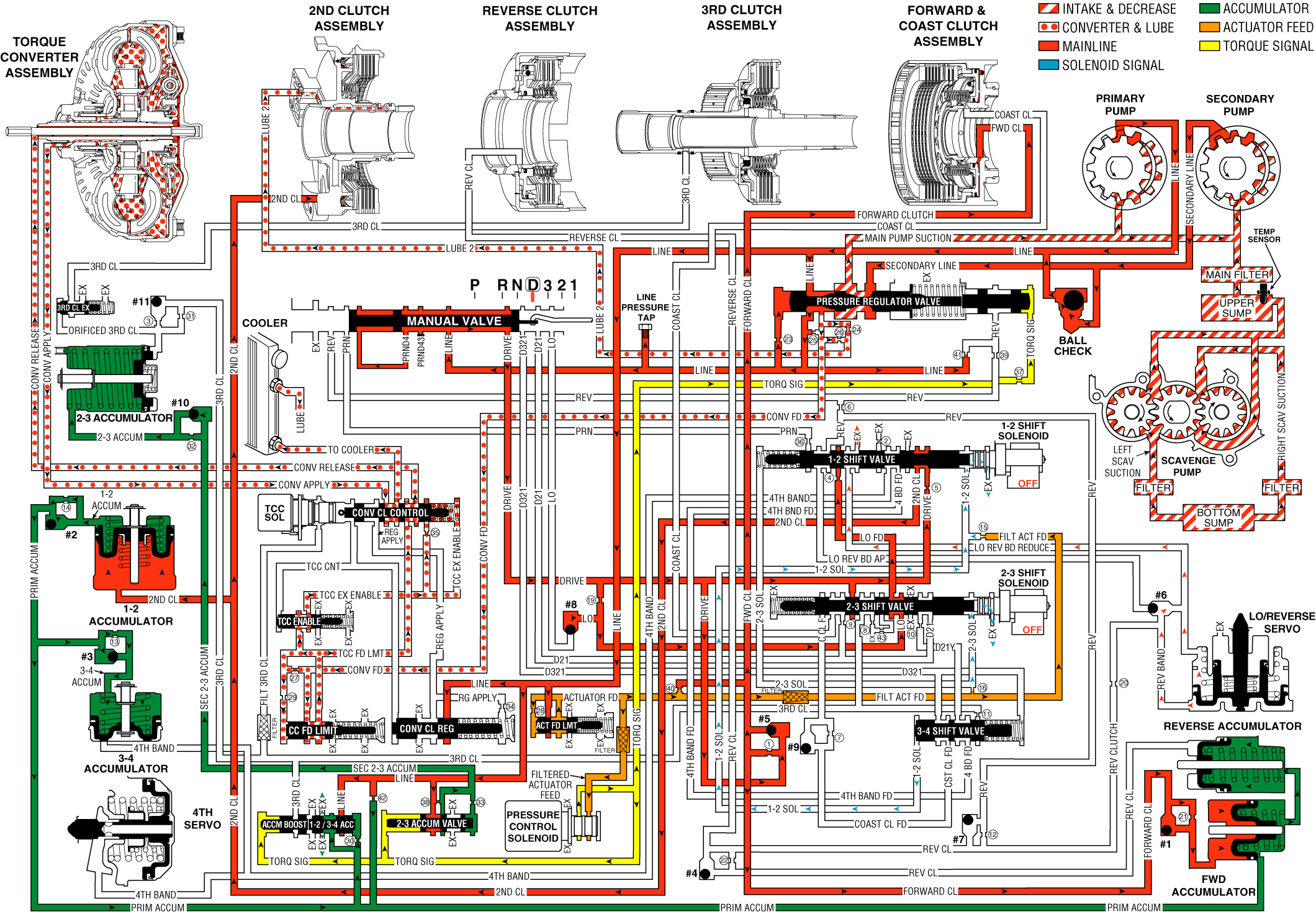

Fig 1: Overdrive Range, Second Gear Fluid Flow Diagram
GM1217587Courtesy of GENERAL MOTORS CORP.
