Section 2 (Automatic Transaxle - 4T80-E - Introduction (2 Of 2))
>>
Description and Operation
>>
Automatic Transmission Hydraulic Diagrams
>>
Manual First Gear
>>
Manual First Gear - A/T System Hydraulic Diagram
Manual First Gear - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.

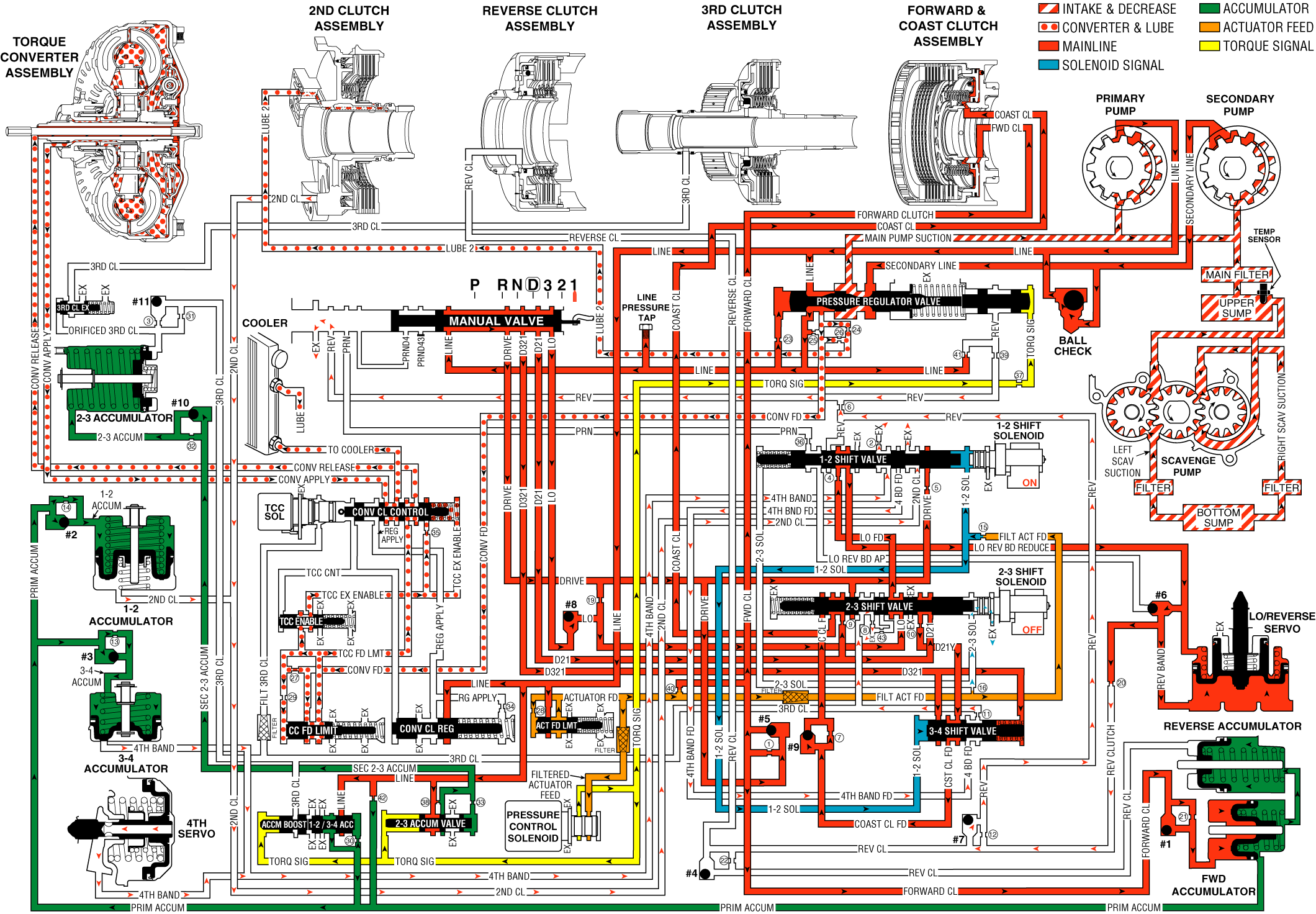

Fig 1: Manual First Gear Fluid Flow Diagram
Courtesy of GENERAL MOTORS CORP.
