Exhaust Manifold Installation - Left Side (With RPO NC1 or NF7)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Left Side Coolant Heater
    GM350279Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. If the engine is equipped with coolant heaters, install the left side (1) heater as follows:
    1. Place the coolant heater (1) in position on the cylinder block.
    2. Install the coolant heater bolt.

      Tighten:  Tighten the coolant heater bolt to 10 N.m (89 lb in).

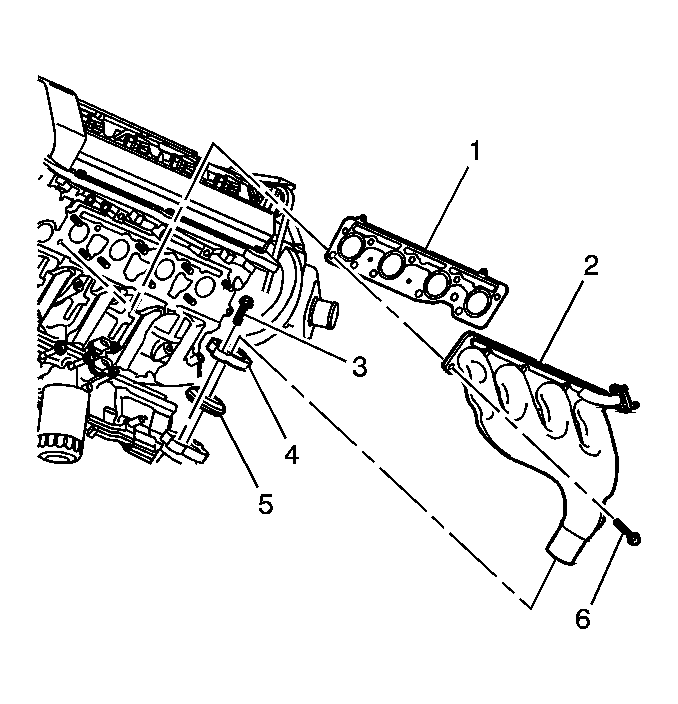

    2. Fig 2: View of Exhaust Manifold And Crossover Pipe Bolts
    GM871664Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT reuse the exhaust manifold gasket.
  2. With the manifold still on the bench, position a new manifold gasket (1) in place on the manifold sealing surface.
  3. Install 2 outer manifold bolts (6) in the manifold to retain the gasket.
  4. Install a new manifold to intermediate pipe flange gasket (5).
  5. Using 2 hands, place the manifold (2) in the intermediate pipe and onto the cylinder head.
  6. Install new manifold flange bolts (3) for maximum joint integrity. Hand tighten. Do not torque the flange bolts to specification until the engine is mounted in the vehicle.
  7. Hand tighten the 2 outer manifold bolts.
  8. Install the remaining manifold bolts.

    Tighten:  Tighten the exhaust manifold bolts (6) to 25 N.m (18 lb ft).

    9. Fig 3: Identifying Oxygen Sensor
    GM331274Courtesy of GENERAL MOTORS CORP.
  9. Coat the oxygen sensor threads with high temperature anti-seize, GM P/N 12377953 or equivalent.
  10. Install the oxygen sensor (1).

    Tighten:  Tighten the oxygen sensor to 40 N.m (30 lb ft).

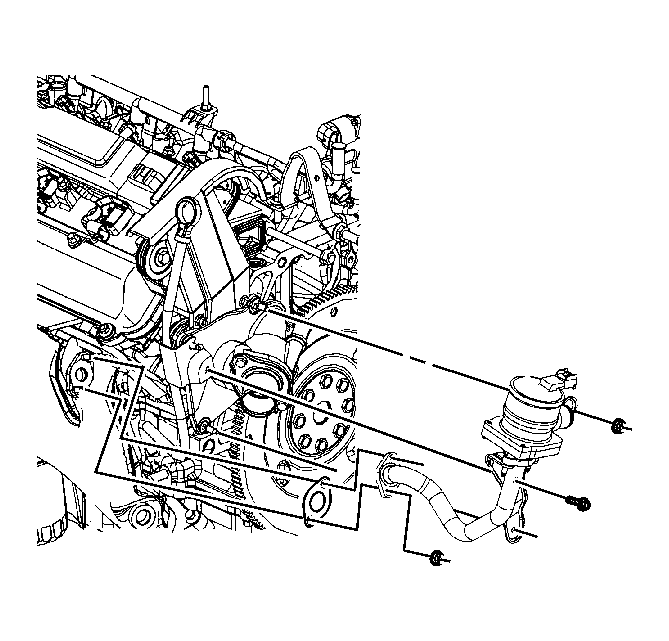

    11. Fig 4: View of Secondary Air Injection Valve
    GM1207116Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT reuse the old secondary air injection (AIR) valve pipe gasket.
  11. Install the NEW AIR valve pipe gasket.
  12. Install the AIR valve.
  13. Install the AIR valve nuts to the mounting bracket.

    Tighten:  Tighten the AIR valve nuts to 9 N.m (80 lb in).

  14. Install the AIR valve bolt through the mounting bracket.

    Tighten:  Tighten the AIR valve bolt to 9 N.m (80 lb in).

  15. Install the AIR valve pipe nuts to the exhaust manifold.

    Tighten:  Tighten the AIR valve pipe nuts to 9 N.m (80 lb in).
