Camshaft Cover Removal - Left Side

Tools Required

• J 38825  Power Steering and Water Pump Pulley Remover
• J 39946  Crankshaft Socket - 4.0L and 4.6L
• J 44212  Camshaft Holding Tool. See Special Tools .

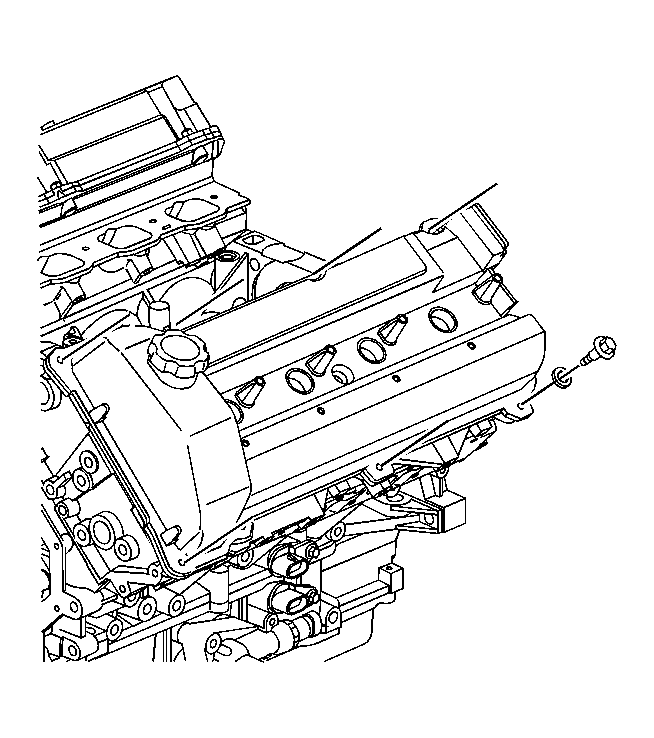

Fig 1: Identifying Left Camshaft Cover Ignition Coil Ground Strap Bolt
Courtesy of GENERAL MOTORS CORP.
1. Remove the left camshaft cover ignition coil ground strap bolt.
2. Remove the left cylinder head ignition coil ground strap bolt.
3. Remove the left ignition coil ground strap.
Fig 2: Identifying Intake Camshaft End Cap
Courtesy of GENERAL MOTORS CORP.
4. Align the crankshaft to top dead center (TDC) using the J 39946  .
5. Remove the end cap from the intake camshaft.
Fig 3: View of J 38825
Courtesy of GENERAL MOTORS CORP.
6. Remove the water pump drive pulley from the intake camshaft using the J 38825  .
Fig 4: Identifying Camshaft Seal Screws
Courtesy of GENERAL MOTORS CORP.
7. Remove the camshaft seal screws.
Fig 5: View of Camshaft Seal
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: DO NOT reuse the camshaft seal.
8. Slide the seal off the end of the camshaft.
Fig 6: Identifying Camshaft Cover Bolts
Courtesy of GENERAL MOTORS CORP.
9. Loosen the camshaft cover bolts.
Fig 7: Lifting Cover
Courtesy of GENERAL MOTORS CORP.
10. Lift up the front of the cover approximately 250 mm (10 in).
Fig 8: Removing Front of Cover
Courtesy of GENERAL MOTORS CORP.
11. Swing the front of the cover over the intake manifold while sliding the entire cover over the end of the camshaft.
12. The camshaft cover seals, perimeter and sparkplug, should be reused unless they are damaged or if the perimeter seal is pulled from its groove during removal.
Fig 9: Using Camshaft Holding Tool
Courtesy of GENERAL MOTORS CORP.
13. Install the J 44212  to the left cylinder head camshafts. See Special Tools .
