Crankshaft Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View of Crankshaft Sprocket Drive Pin
    GM685375Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft sprocket drive pin (1).
    2. Fig 2: Ensuring Proper Pin Height
    GM685378Courtesy of GENERAL MOTORS CORP.
  2. Ensure pin height (1) is 1.75-3.25 mm (0.0689-0.1280 in).

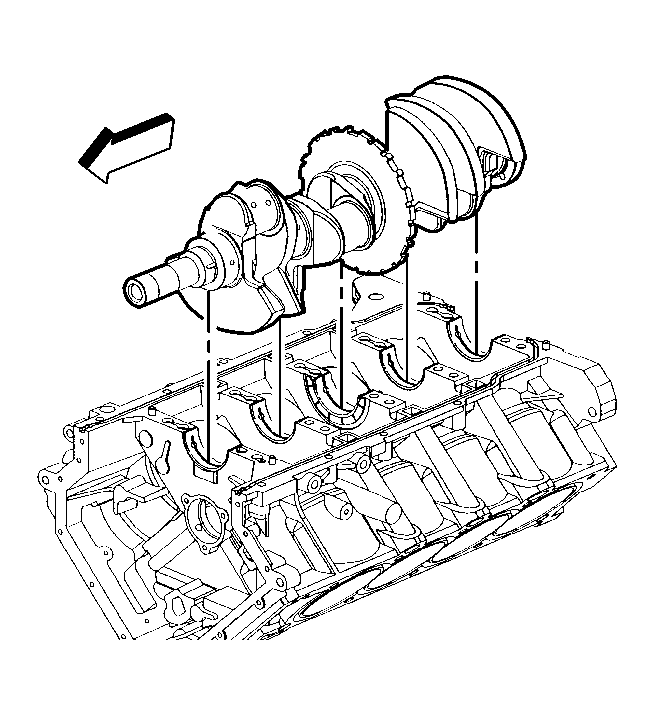

    3. Fig 3: View of Crankshaft
    GM204793Courtesy of GENERAL MOTORS CORP.
  3. Gently lower the crankshaft into position in the cylinder block.
  4. Make sure the crankshaft turns without binding or noise.
