Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

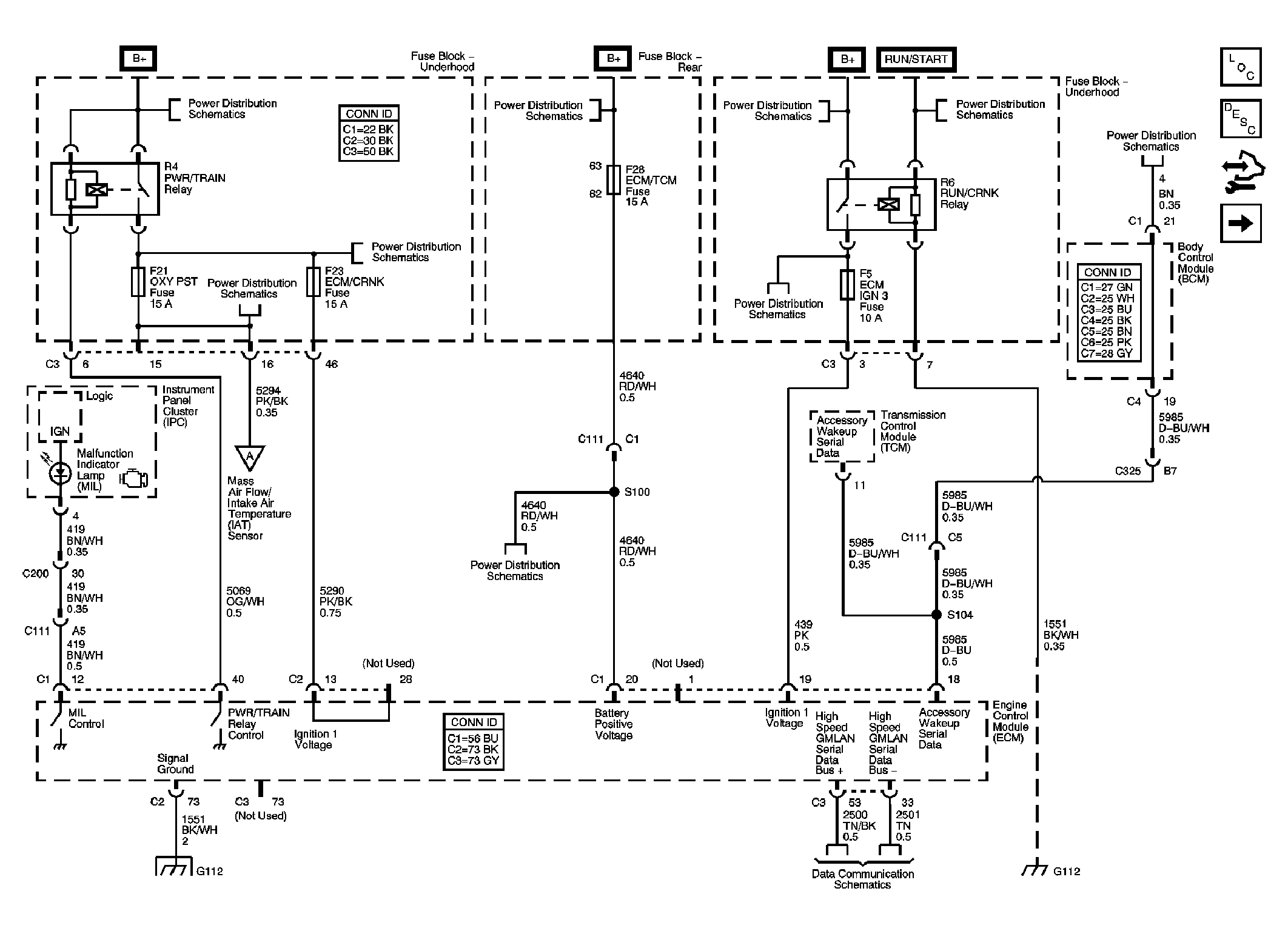

Fig 1: Power, Ground, MIL and DLC

Courtesy of GENERAL MOTORS CORP.

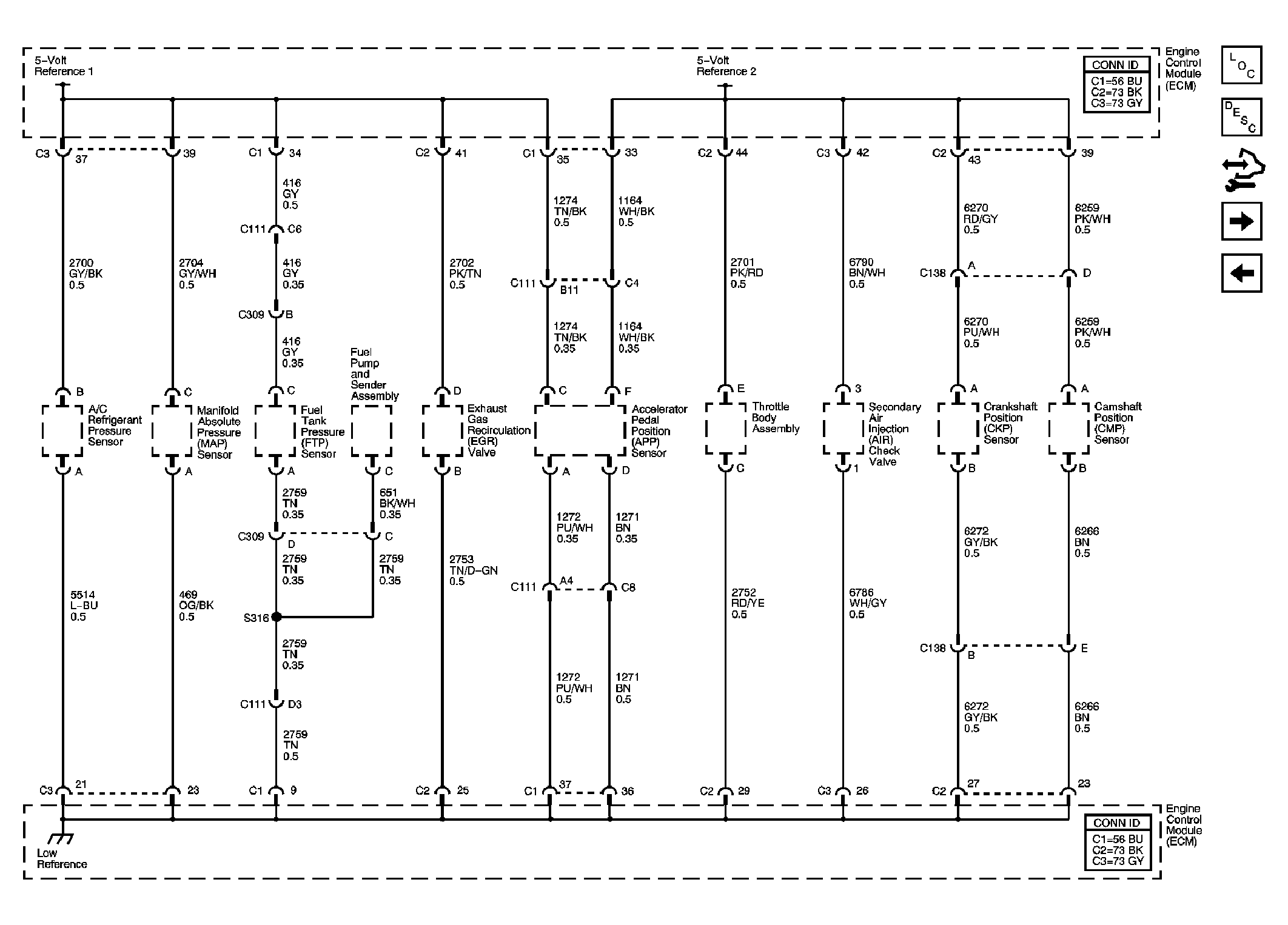

Fig 2: Engine Data Sensors, 5-Volt Reference Bussing

Courtesy of GENERAL MOTORS CORP.

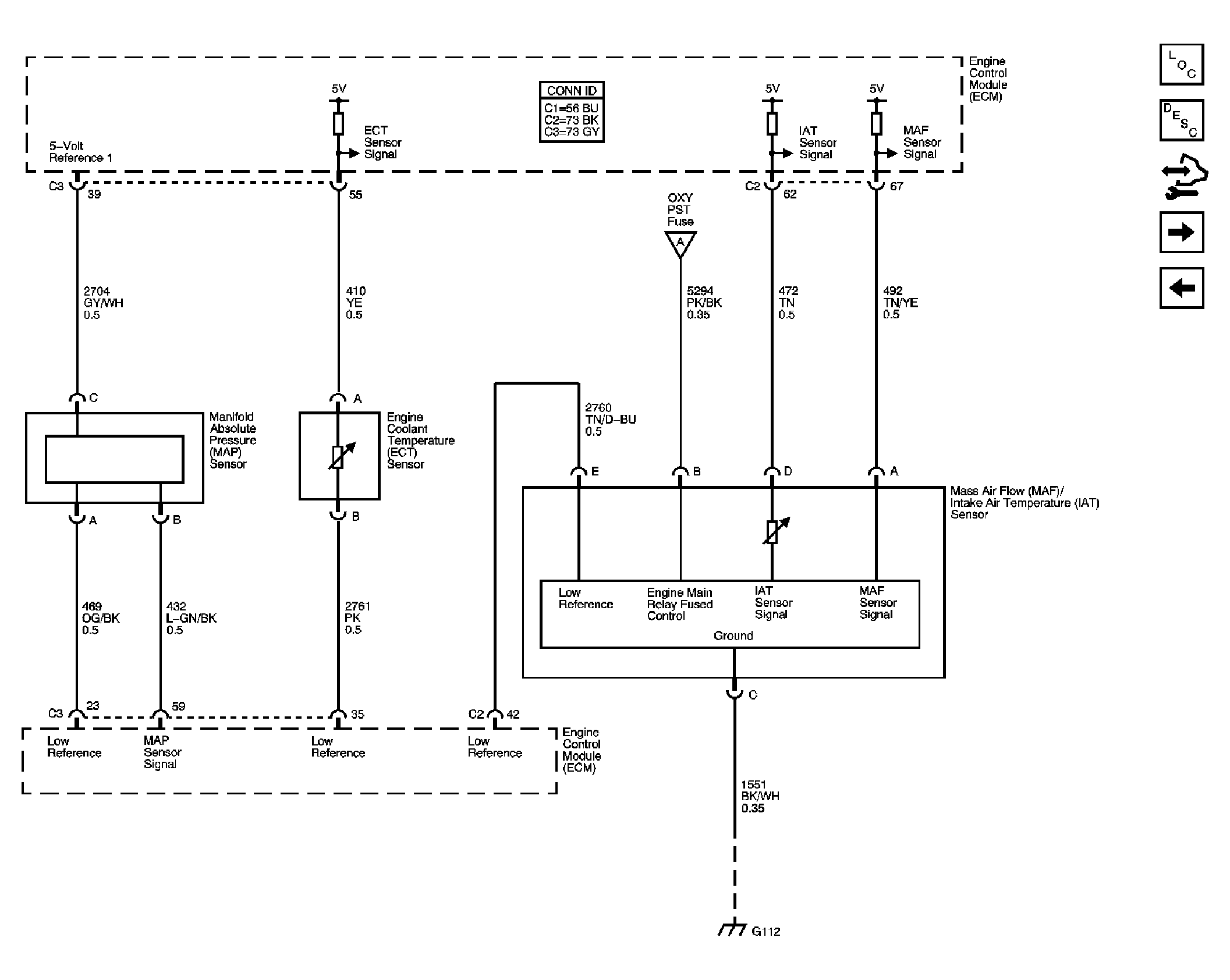

Fig 3: Engine Data Sensors - Pressure, Temp and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

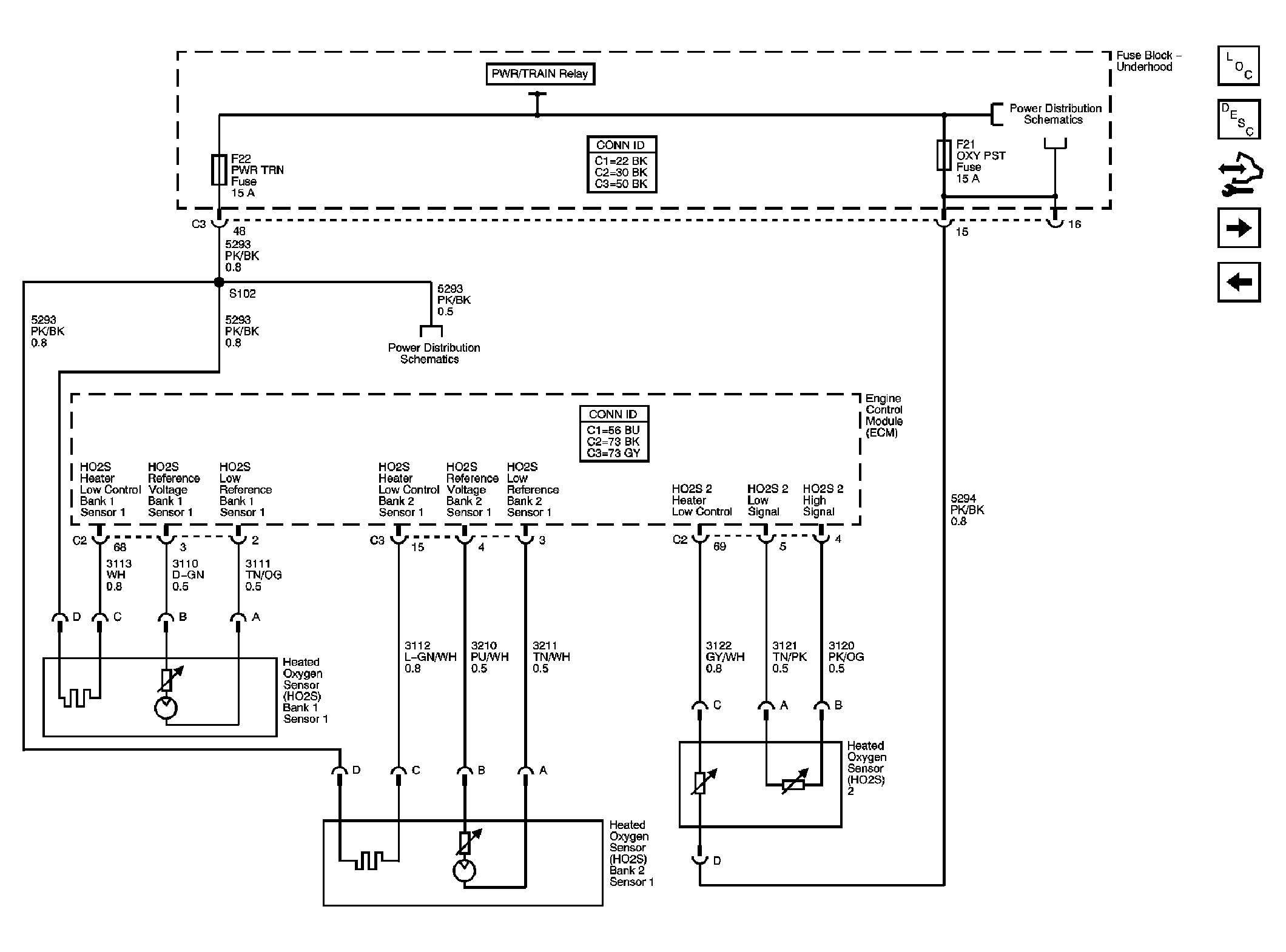

Fig 4: Engine Data Sensors, HO2S

Courtesy of GENERAL MOTORS CORP.

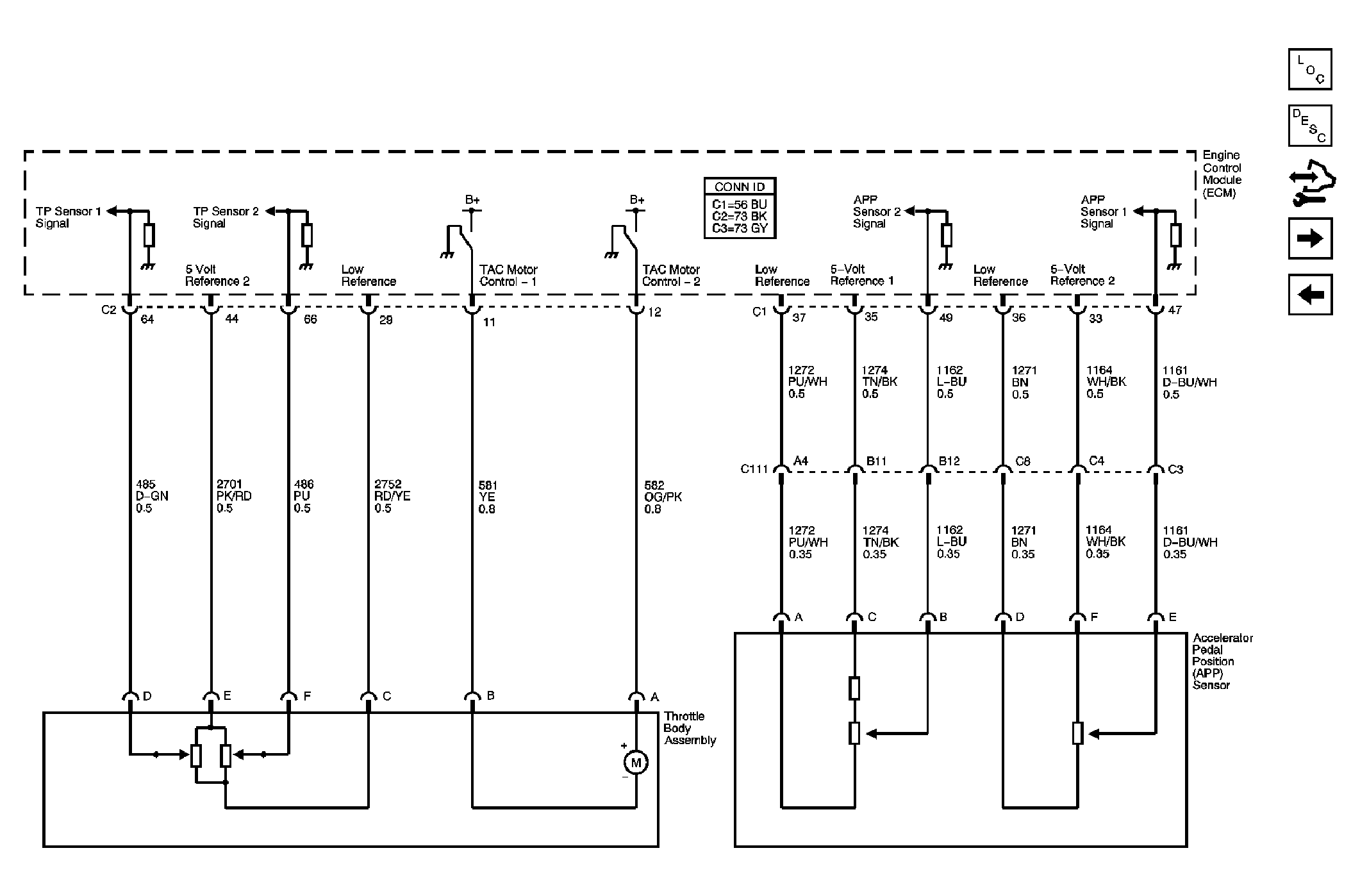

Fig 5: Engine Data Sensors, APP and Throttle Body Assembly

Courtesy of GENERAL MOTORS CORP.

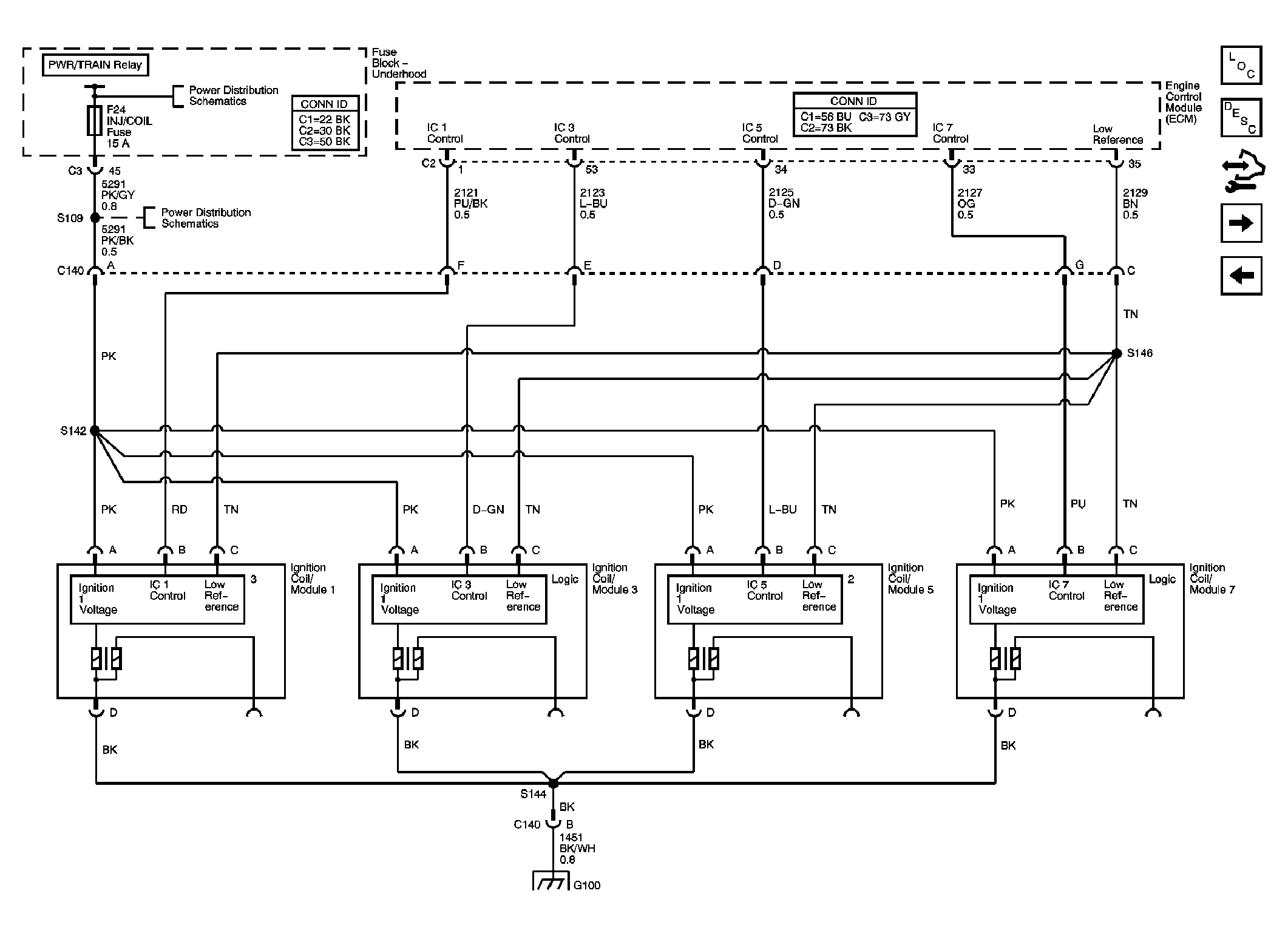

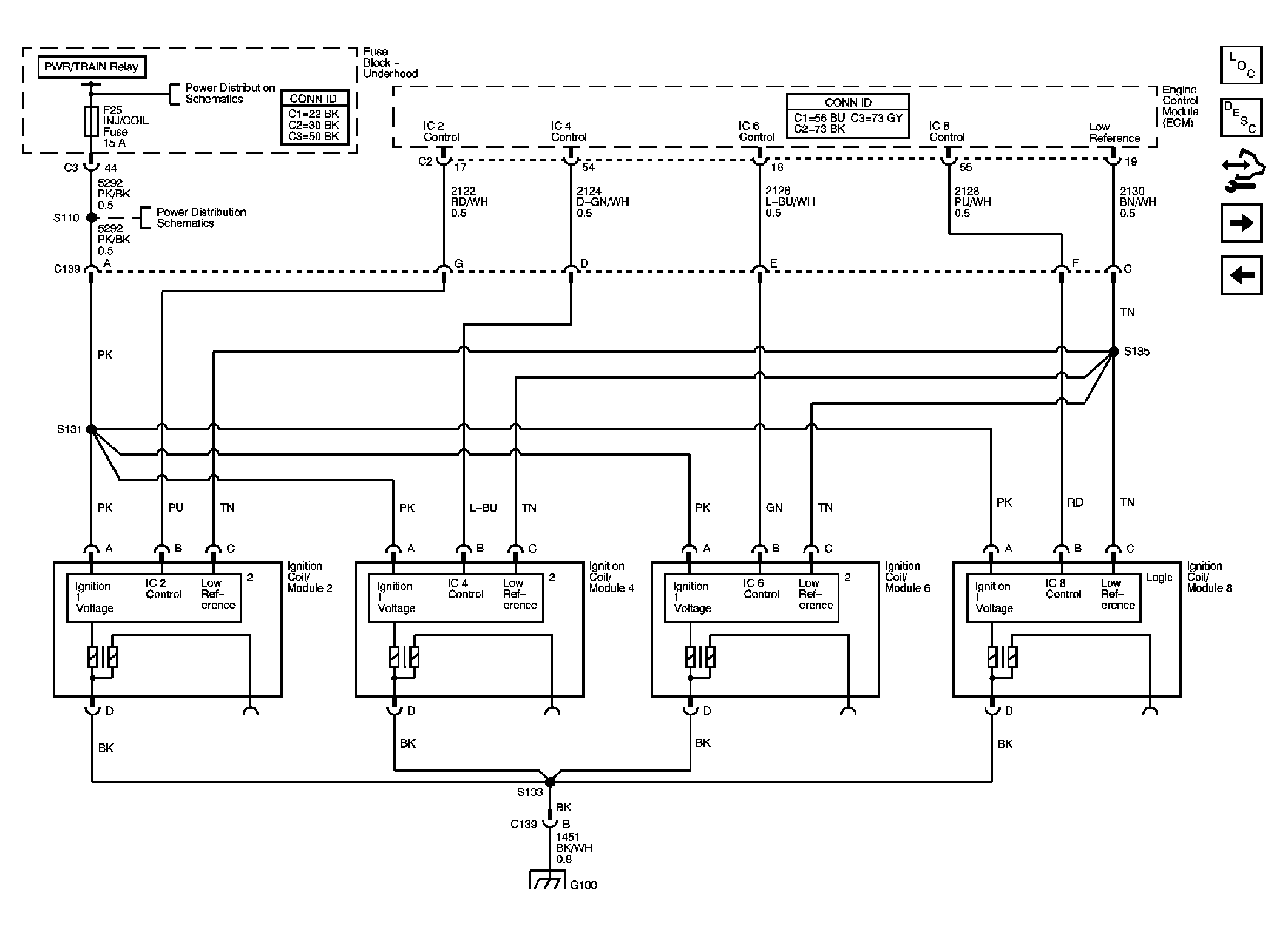

Fig 6: Ignition Controls - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - 2 of 2

Courtesy of GENERAL MOTORS CORP.

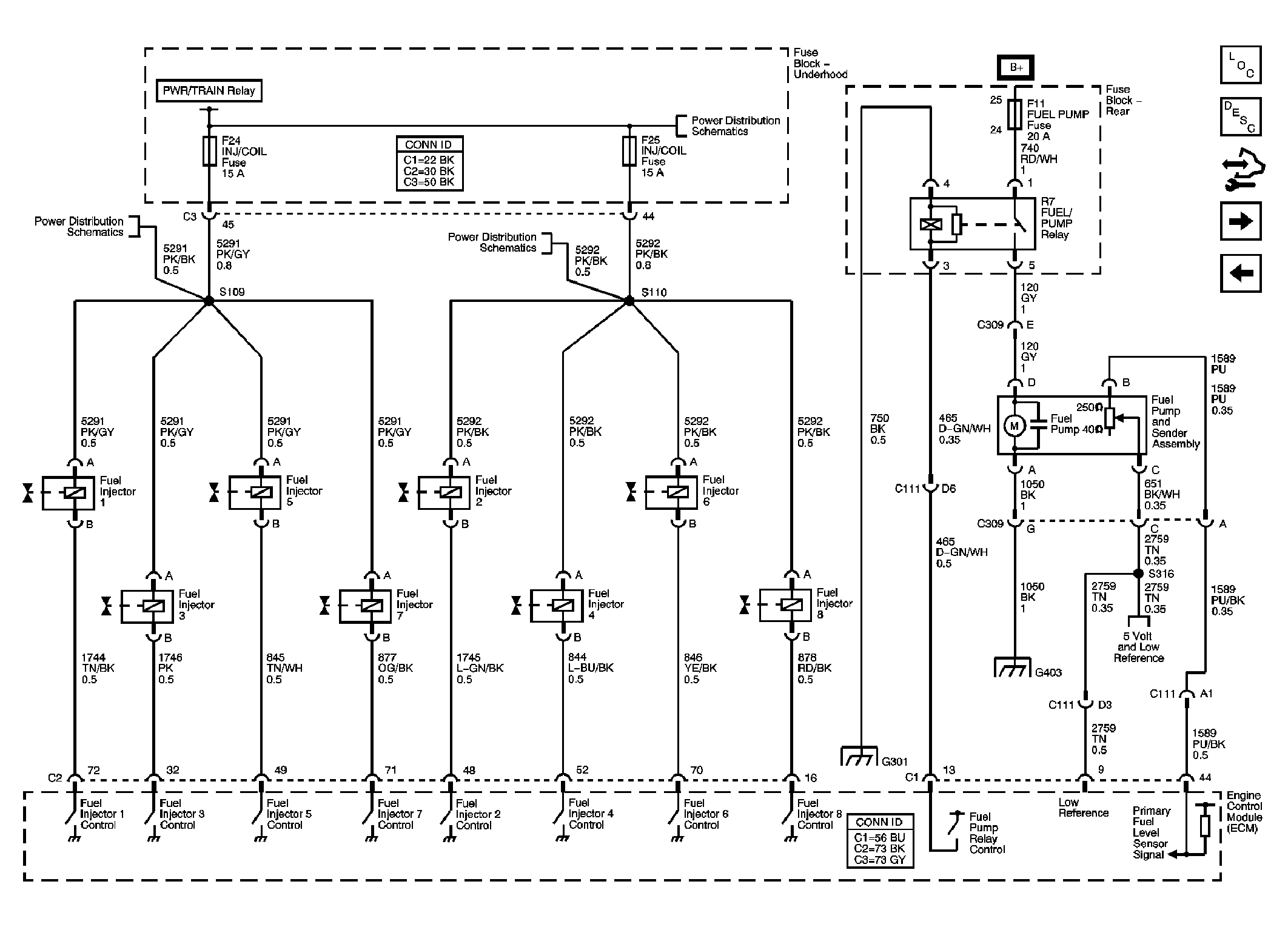

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

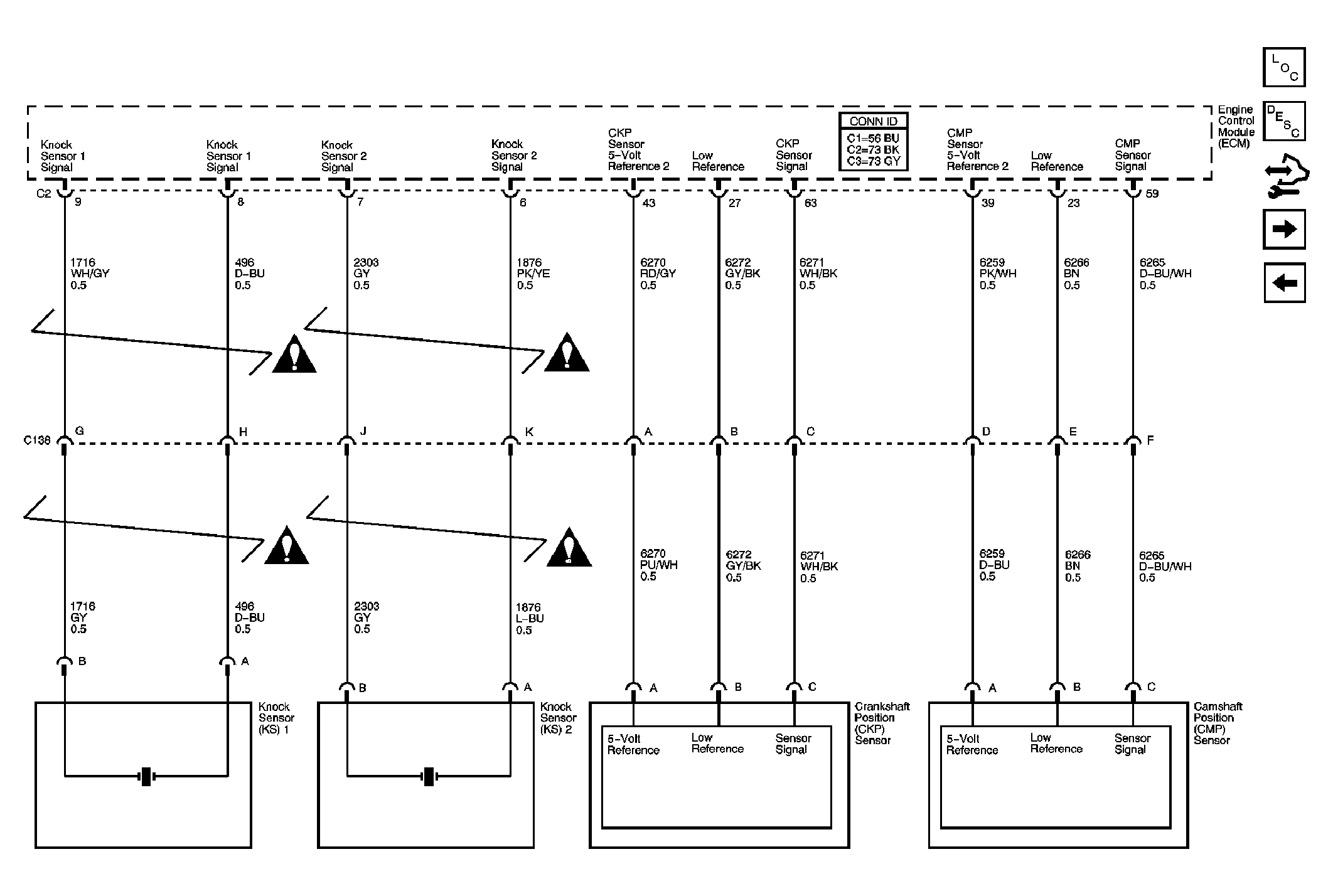

Fig 9: CKP, CMP, Knock Sensors

Courtesy of GENERAL MOTORS CORP.

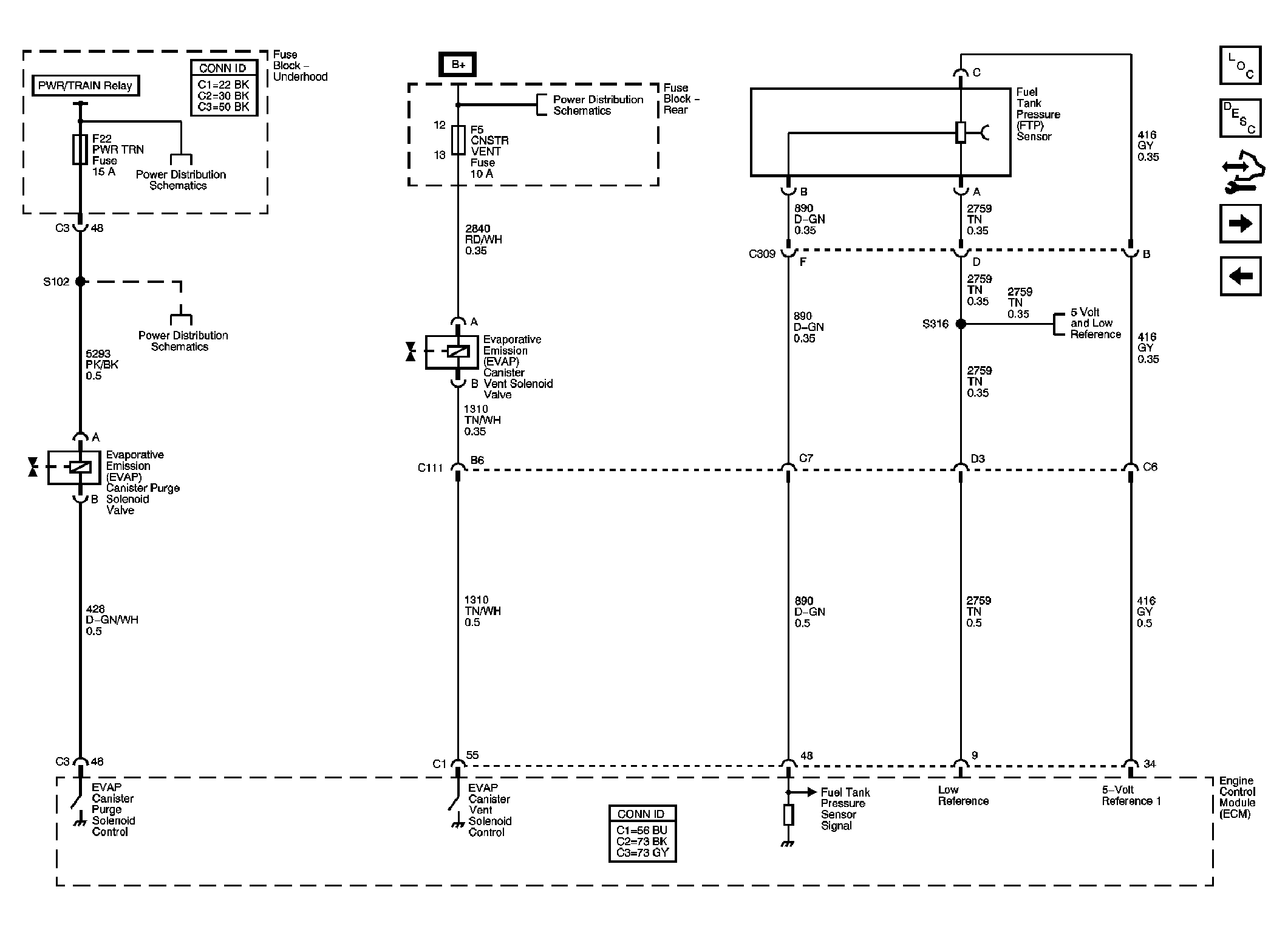

Fig 10: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

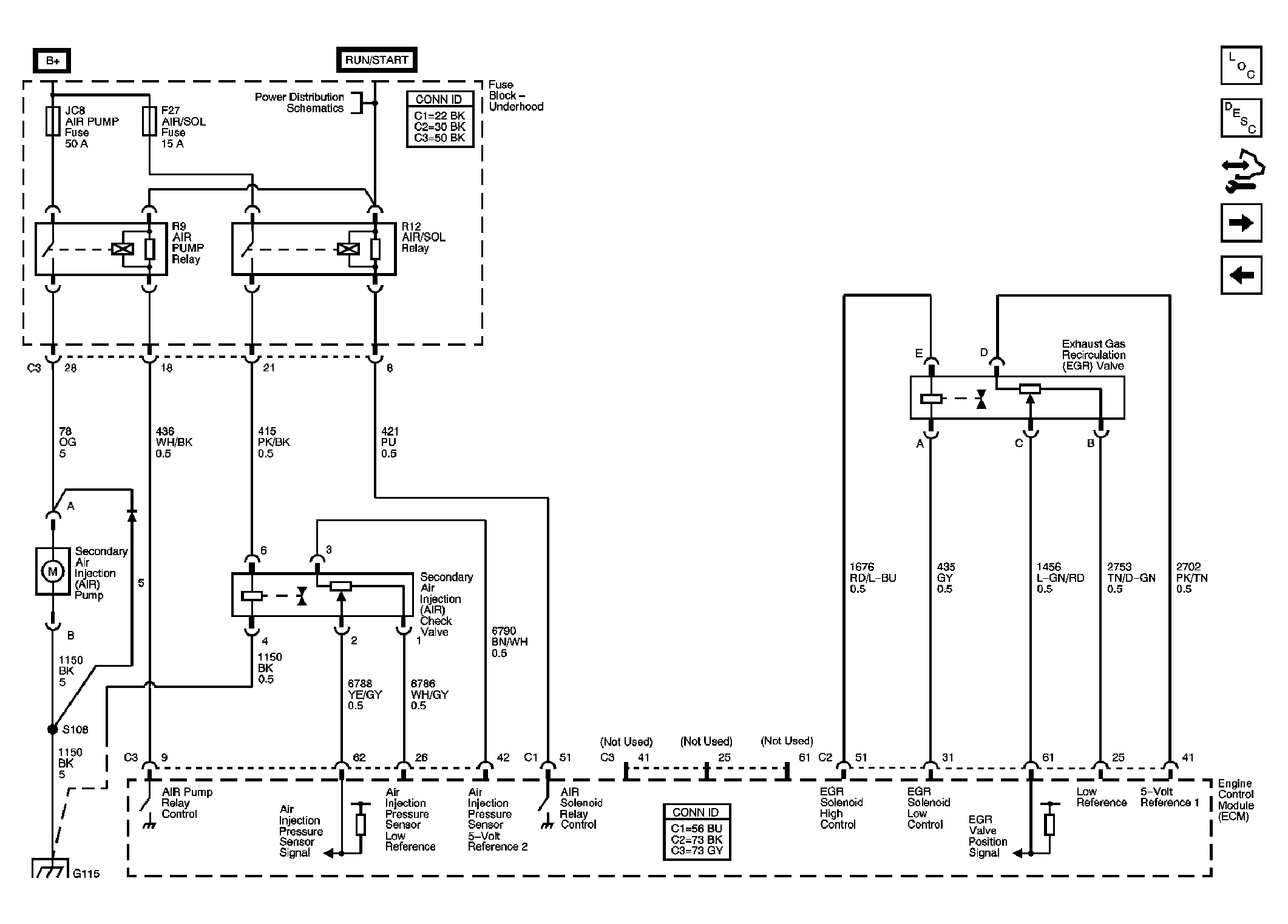

Fig 11: EGR, Secondary Air Injection (AIR)

Courtesy of GENERAL MOTORS CORP.

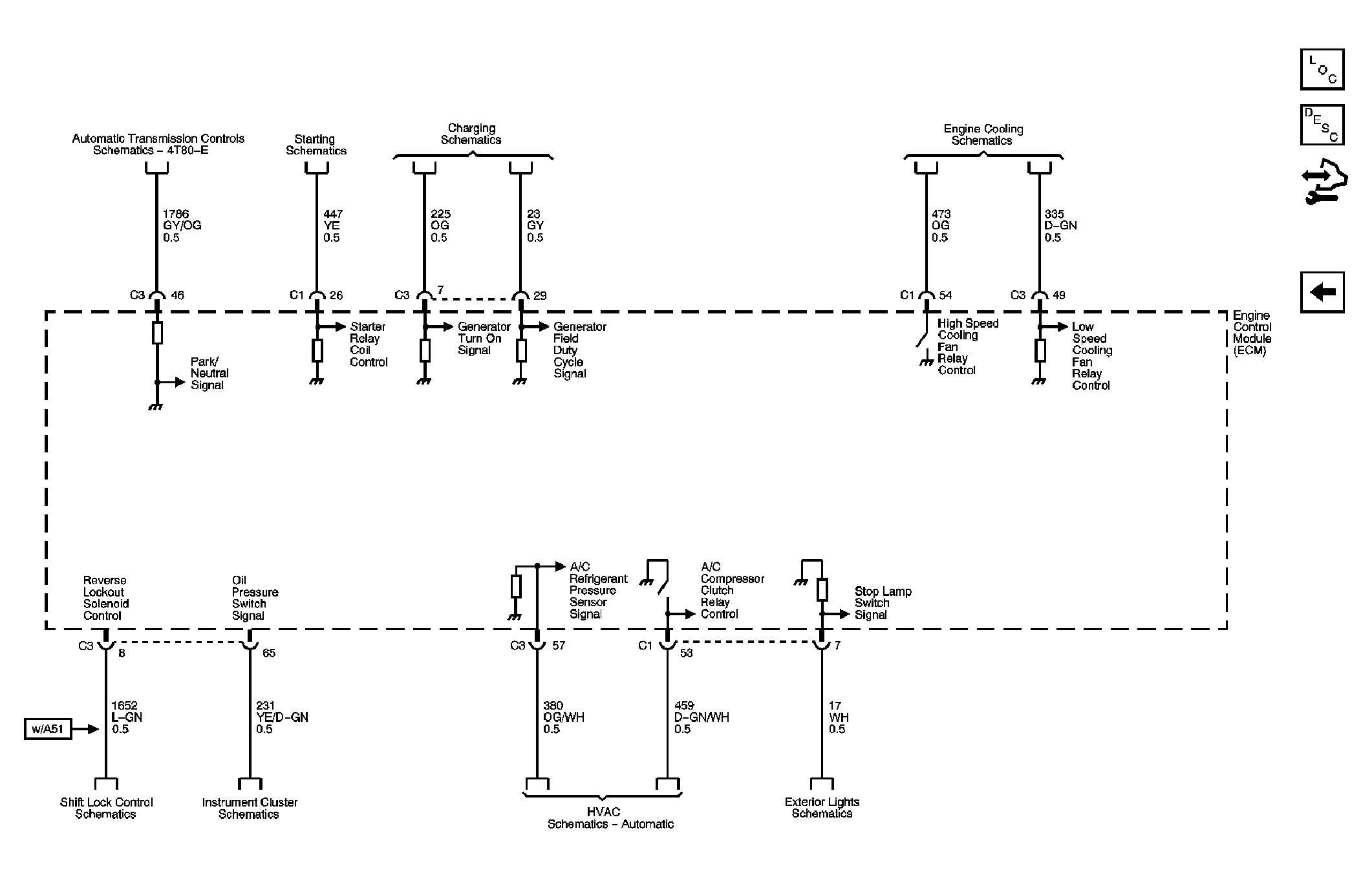

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
