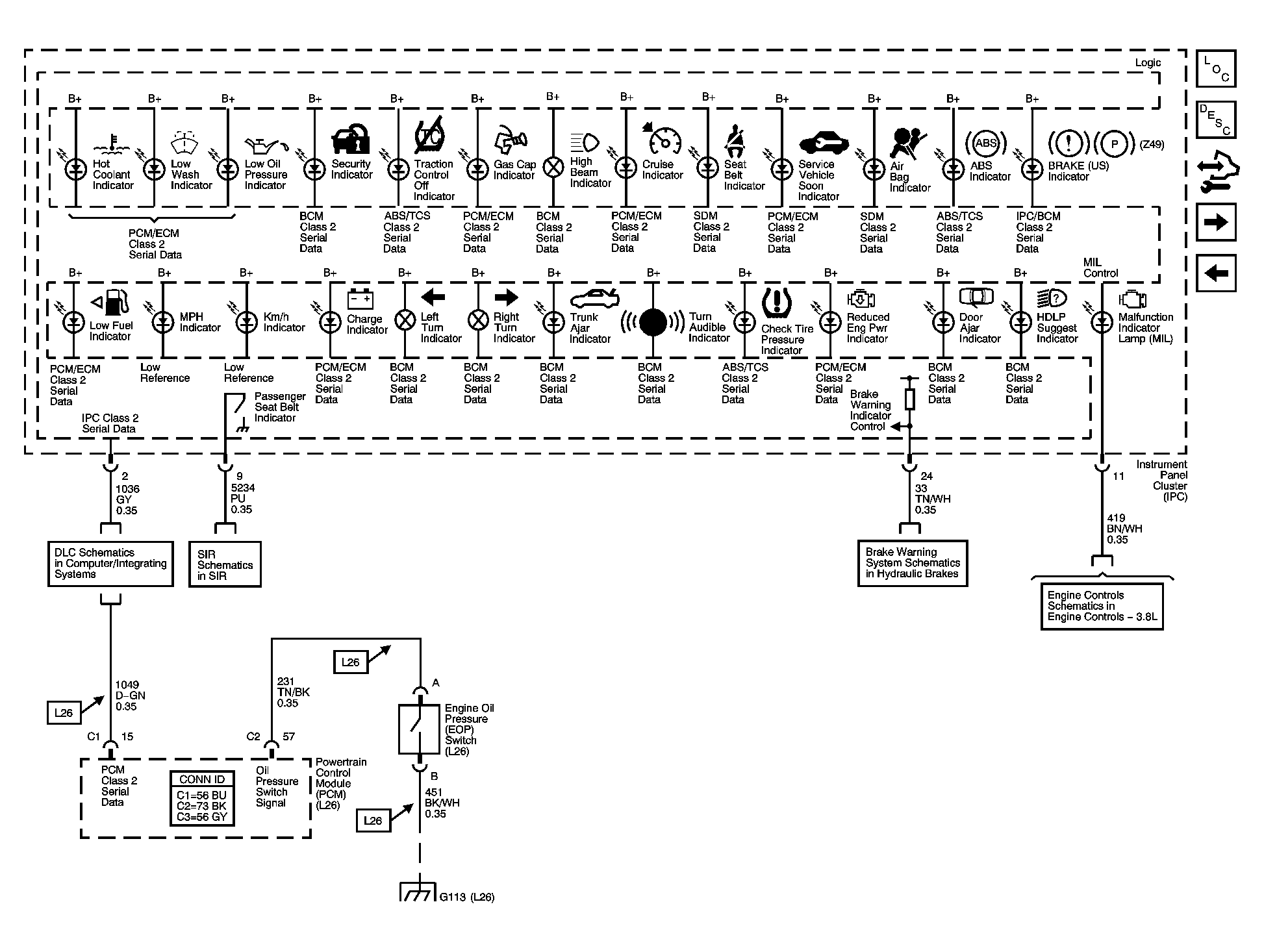

Fig 1: Power, Ground, Serial Data & Gages (L26) Schematic
Courtesy of GENERAL MOTORS CORP.

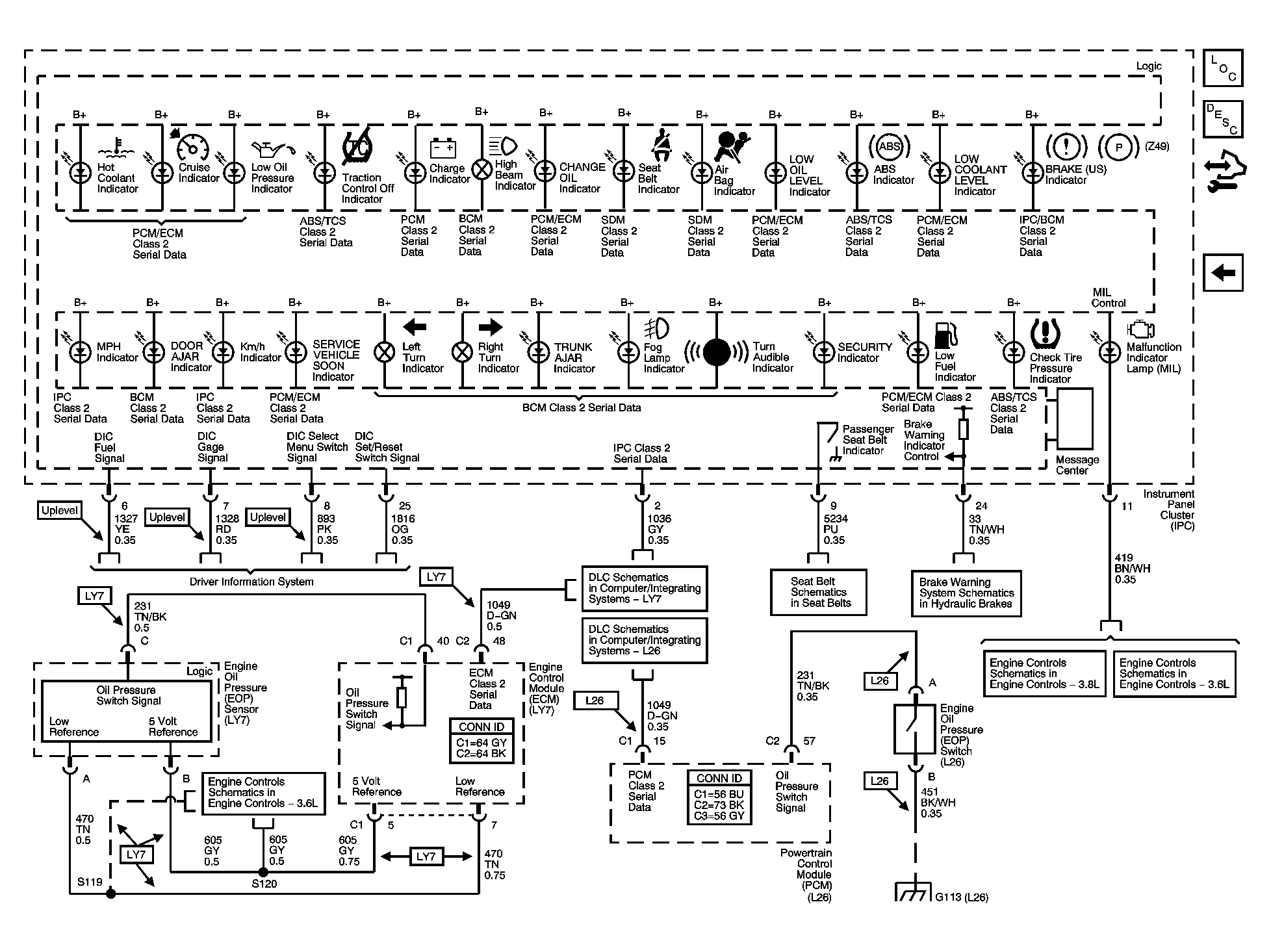

Fig 2: Power, Ground, Serial Data & Gages (LY7) Schematic
Courtesy of GENERAL MOTORS CORP.

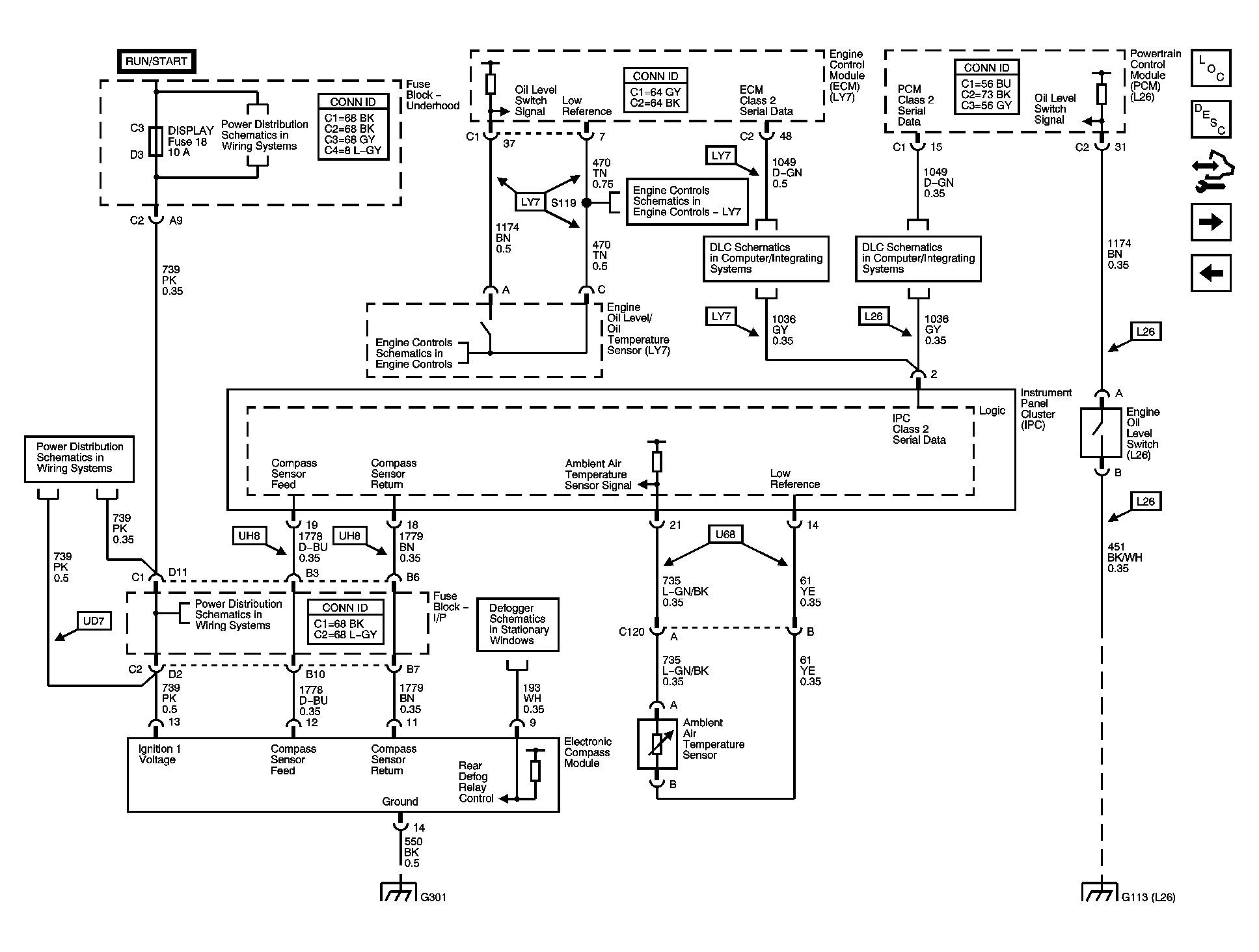

Fig 3: Indicators (U2E) Schematic
Courtesy of GENERAL MOTORS CORP.

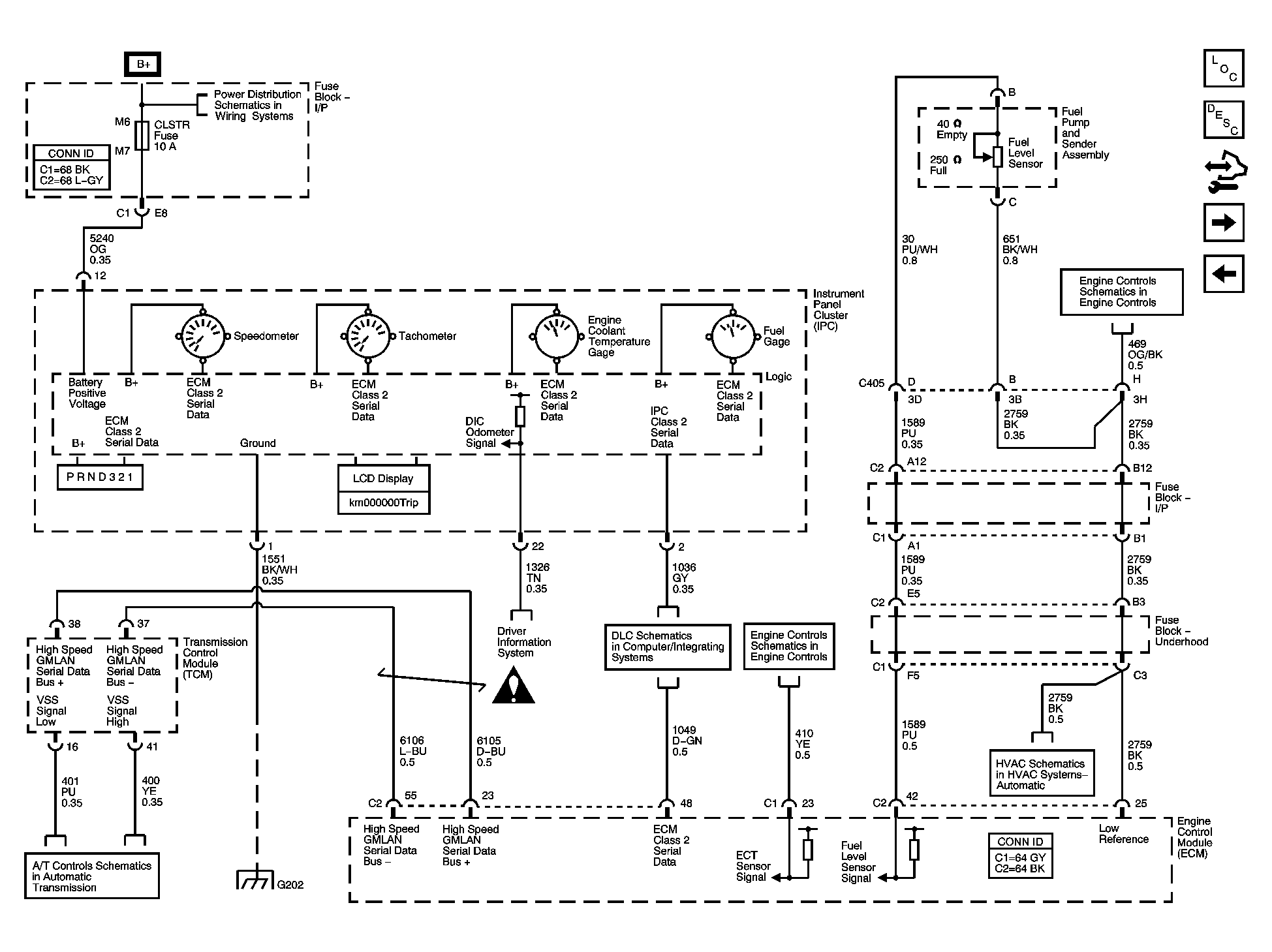

Fig 4: Indicators (UH8) Schematic
Courtesy of GENERAL MOTORS CORP.

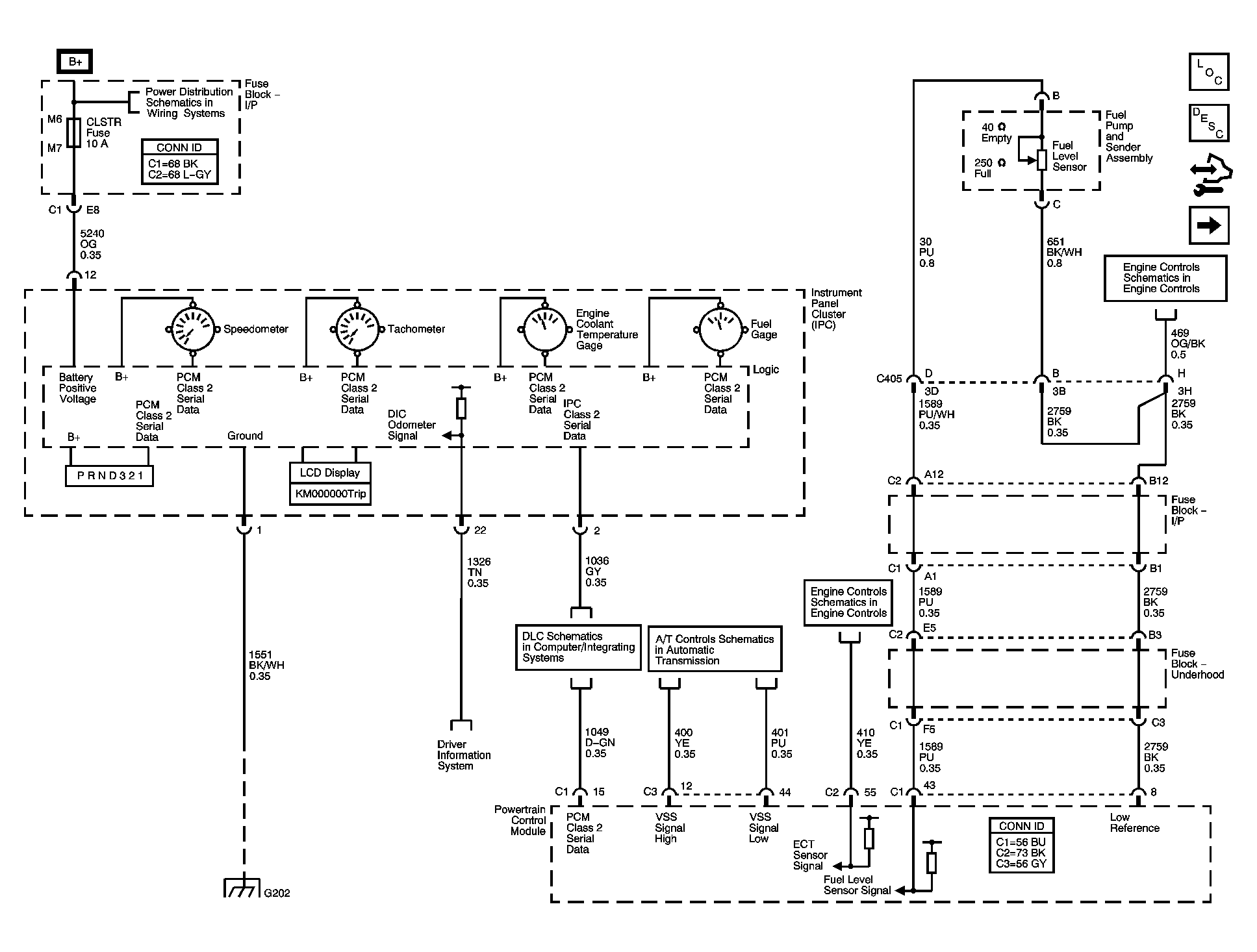

Fig 5: Ambient Air Temperature Sensor, Electronic Compass Module & Oil Level Switch Schematic
