Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

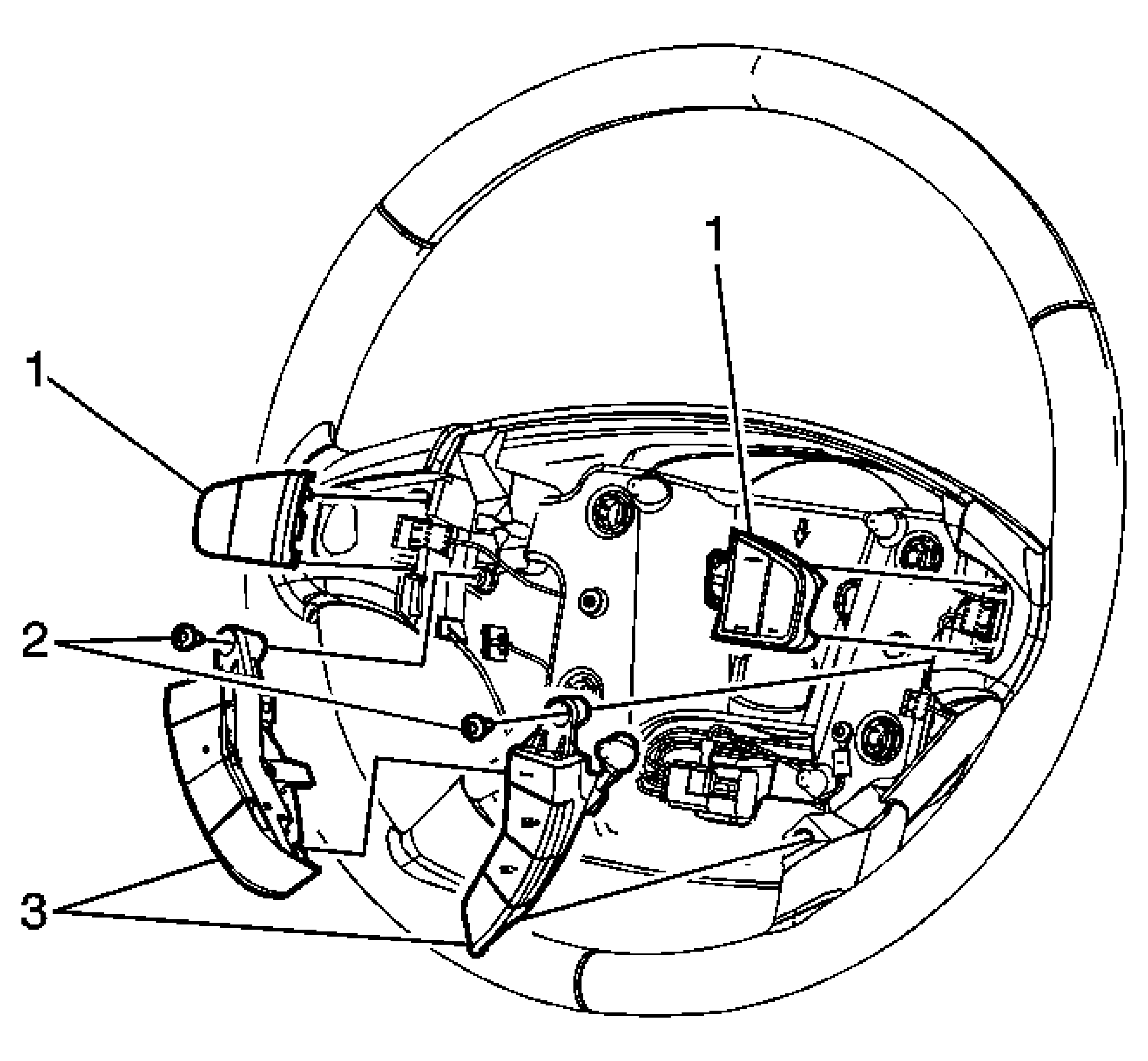

Fig 1: Replacing Steering Wheel Control Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Upper Steering Wheel Control Switch (Qty: 2) Tip: Use a flat-bladed tool to remove the switch from the steering wheel. Disconnect the electrical connector from the switch.
2	Lower Steering Wheel Control Switch Screw (Qty: 2), Tighten: 2 N.m (18 lb in)
3	Lower Steering Wheel Control Switch (Qty: 2) Tip: Disconnect the electrical from the switch.
