Removal Procedure

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the door window to the full up position.

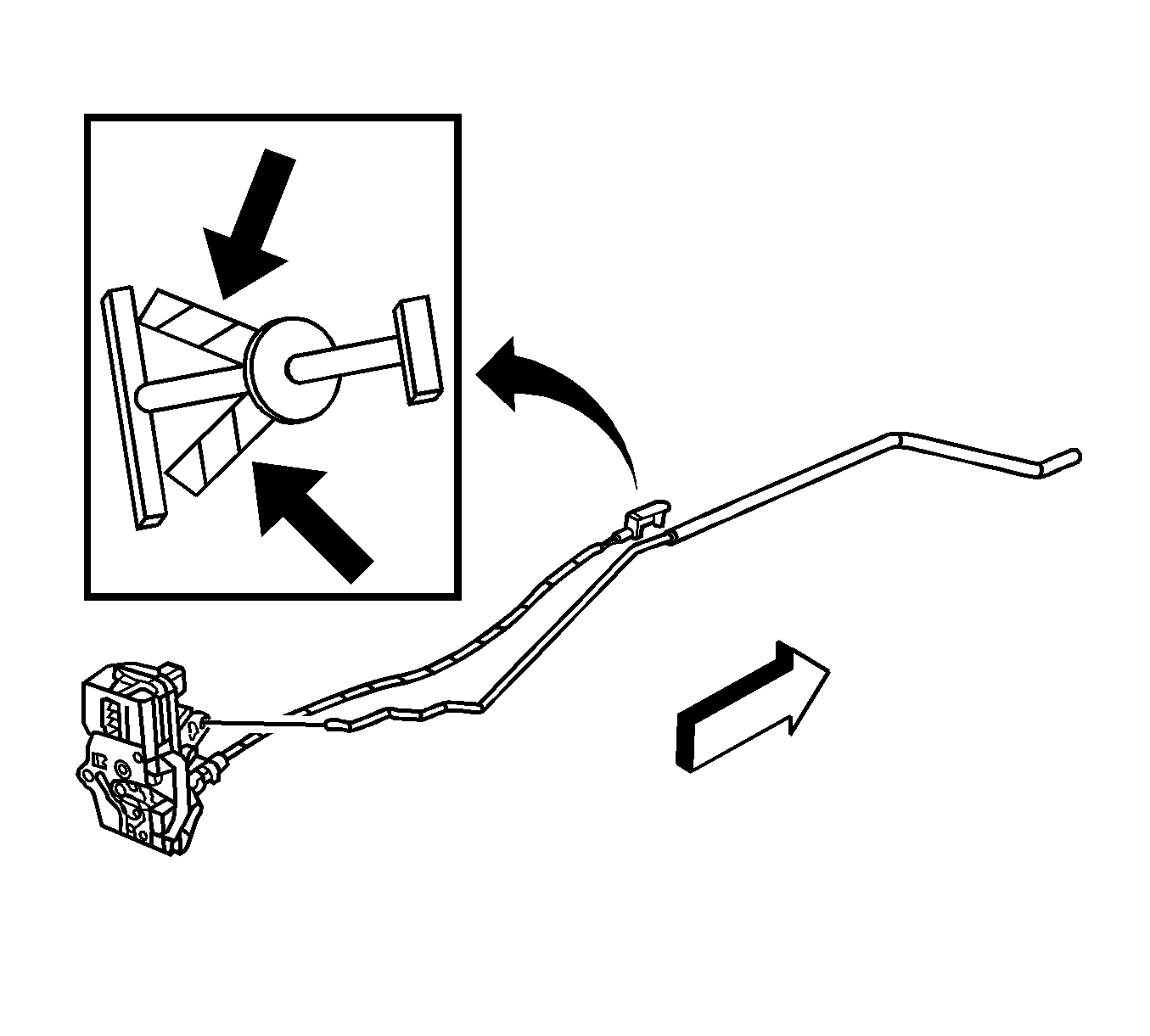

    2. Fig 1: View Of Inside Door Handle Cable
    GM1363751Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The latch or cable is not serviceable separately. It must be replaced as an assembly.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the front door lock. Refer to Lock Replacement - Front Door .
  5. Remove the lock and cable through the opening in the inner door panel.
