Ground Distribution Schematics

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

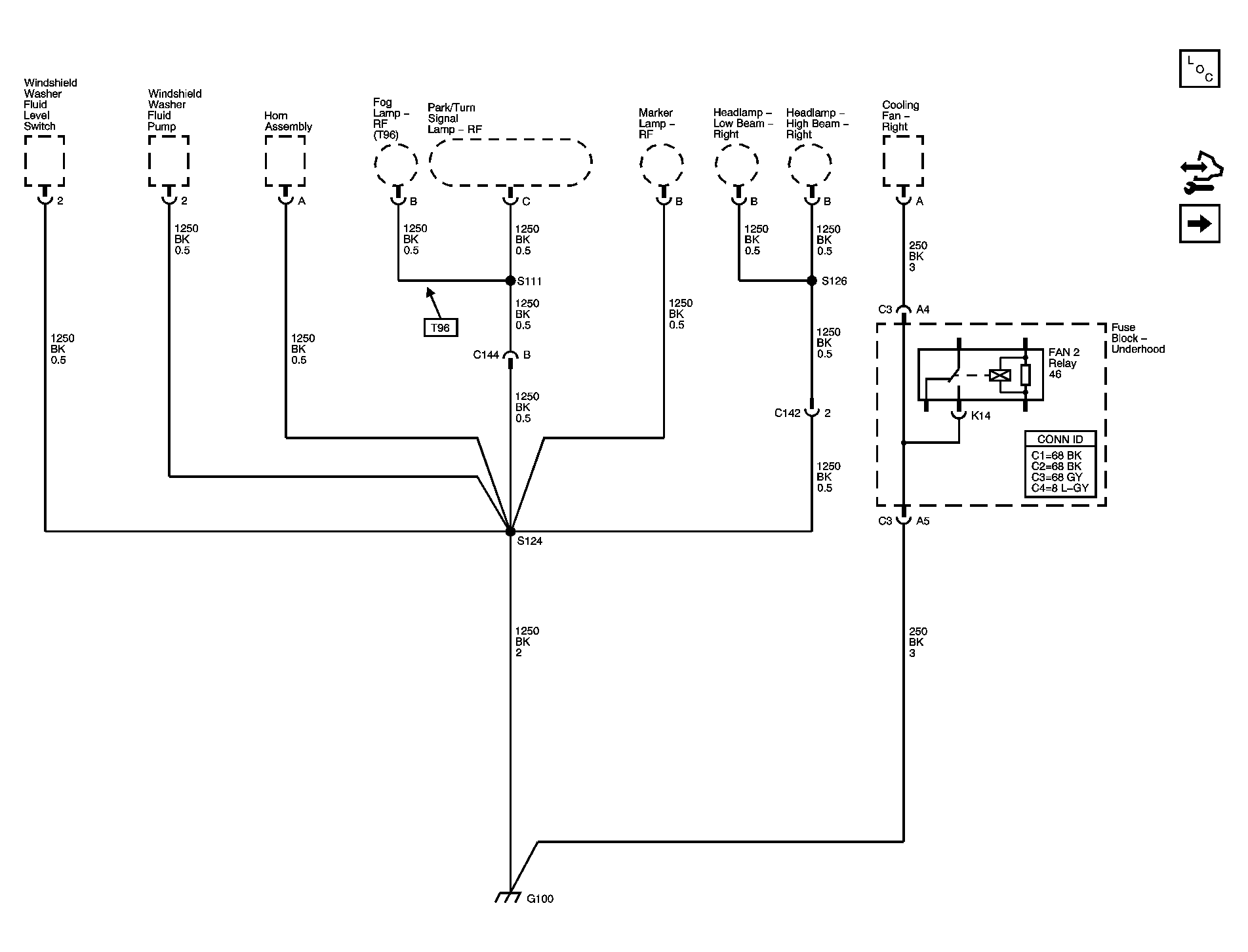

Fig 1: G100 Schematic

Courtesy of GENERAL MOTORS CORP.

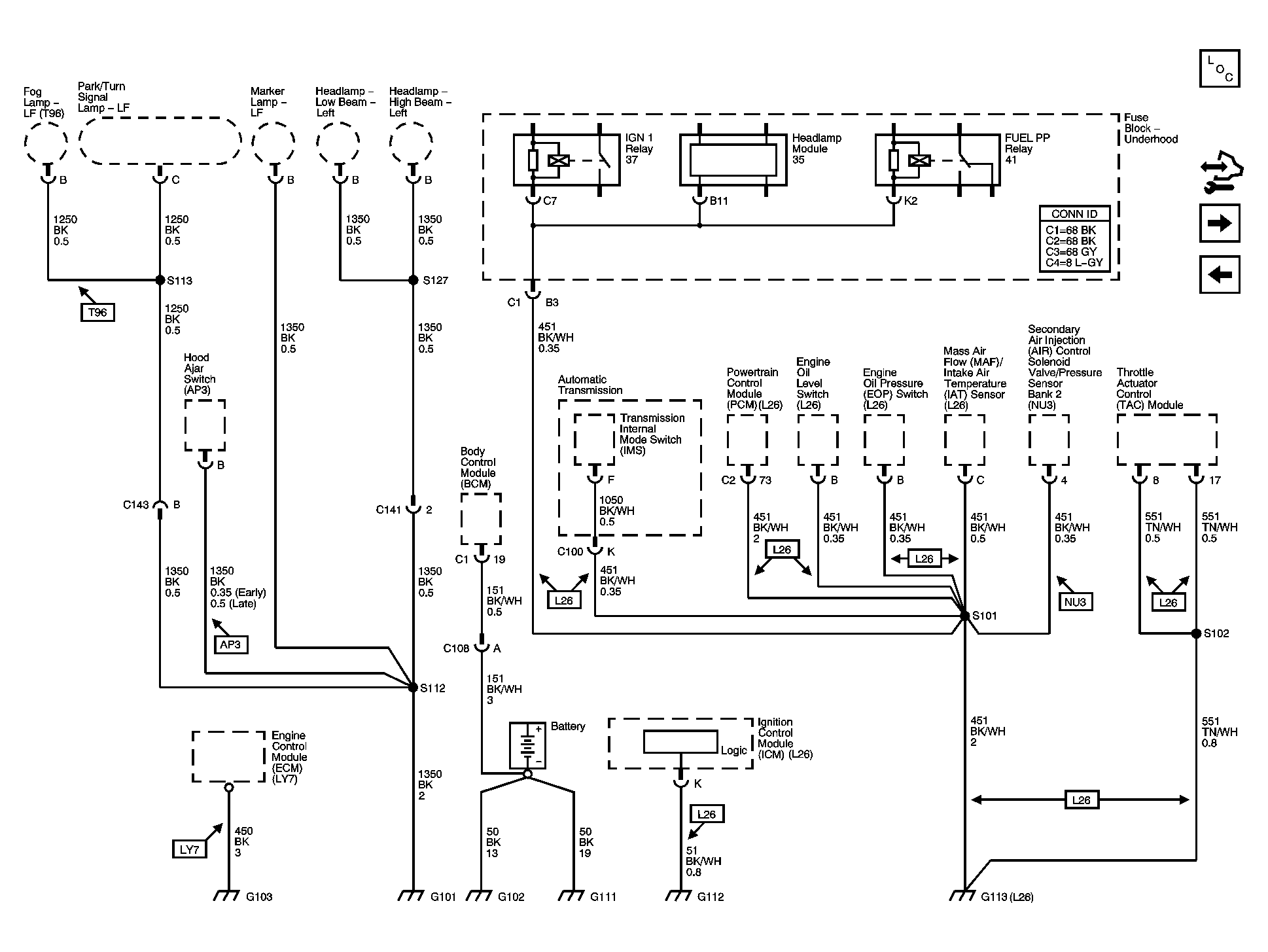

Fig 2: G101, G102, G103, G111, G11 & G113 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: G115 (L26) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: G115 (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

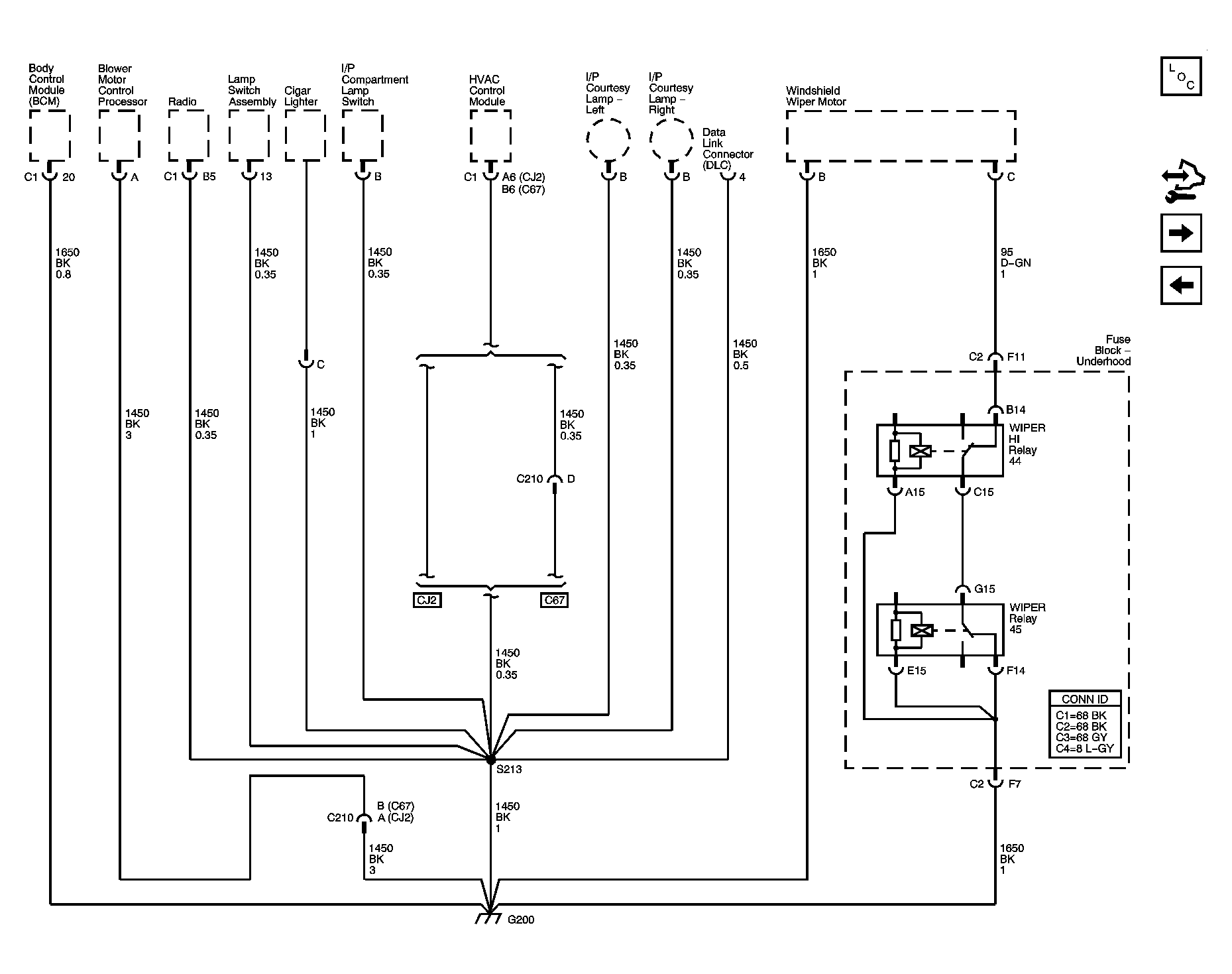

Fig 5: G200 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: G201 Schematic

Courtesy of GENERAL MOTORS CORP.

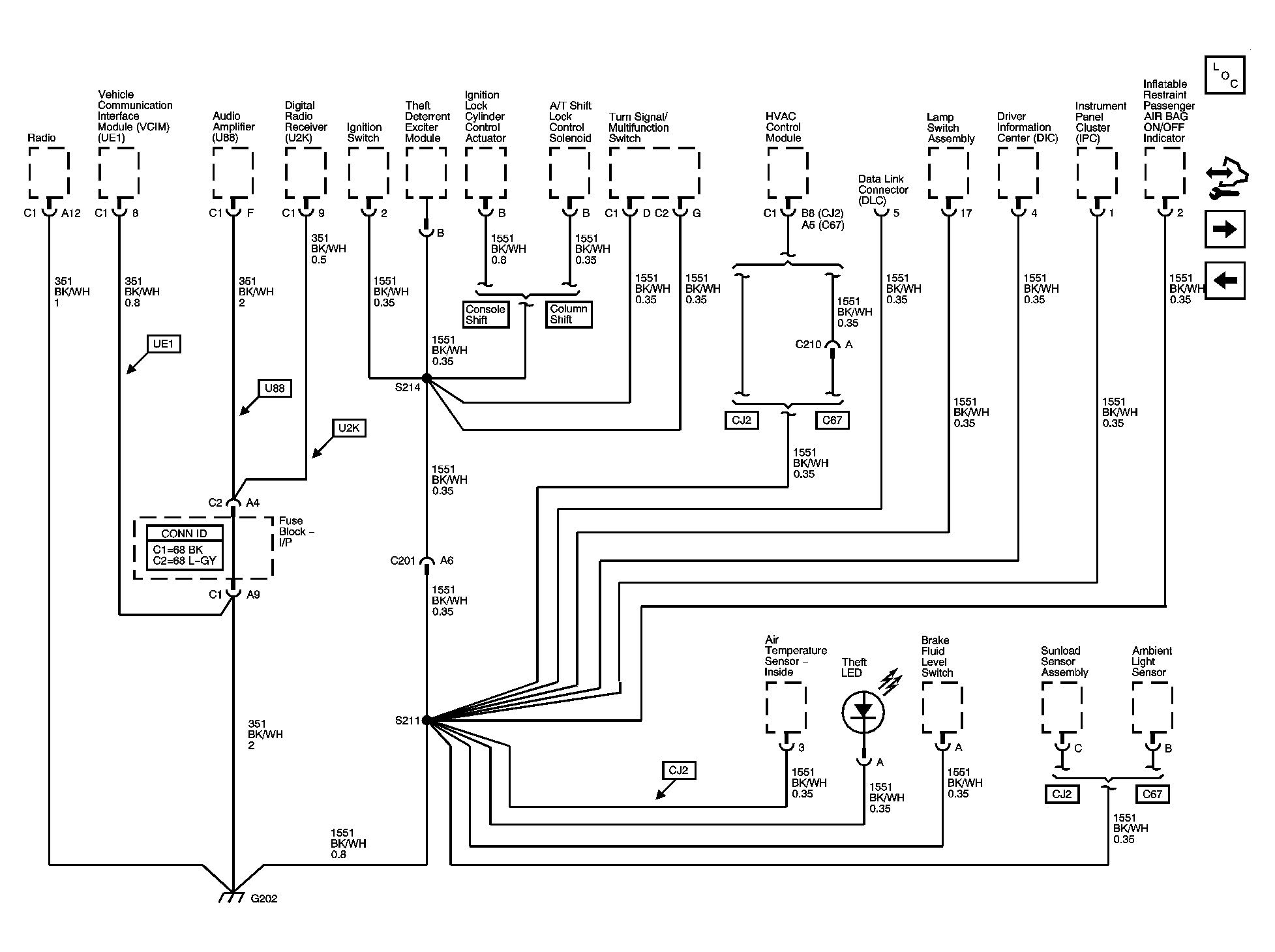

Fig 7: G202 Schematic

Courtesy of GENERAL MOTORS CORP.

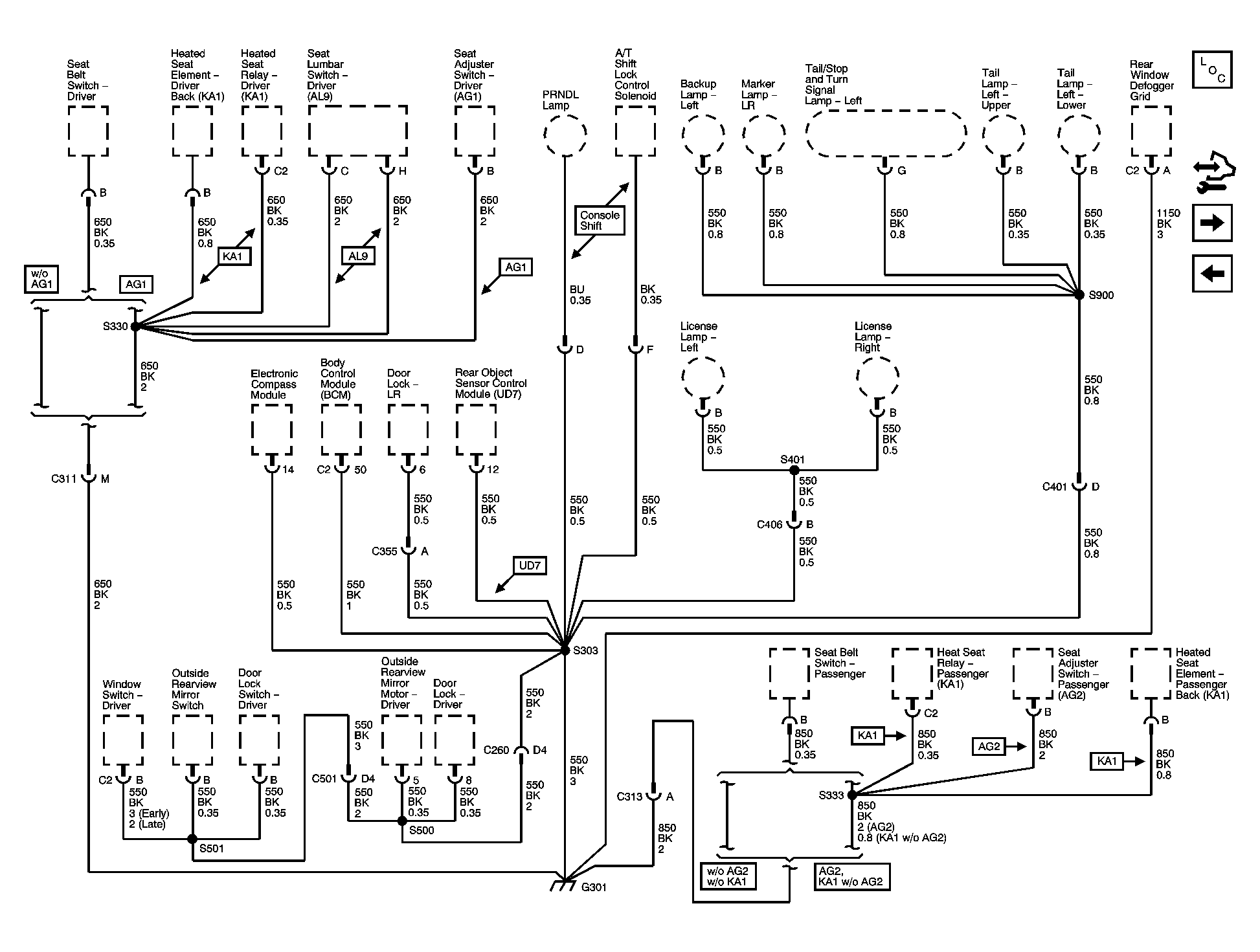

Fig 8: G301 Schematic

Courtesy of GENERAL MOTORS CORP.

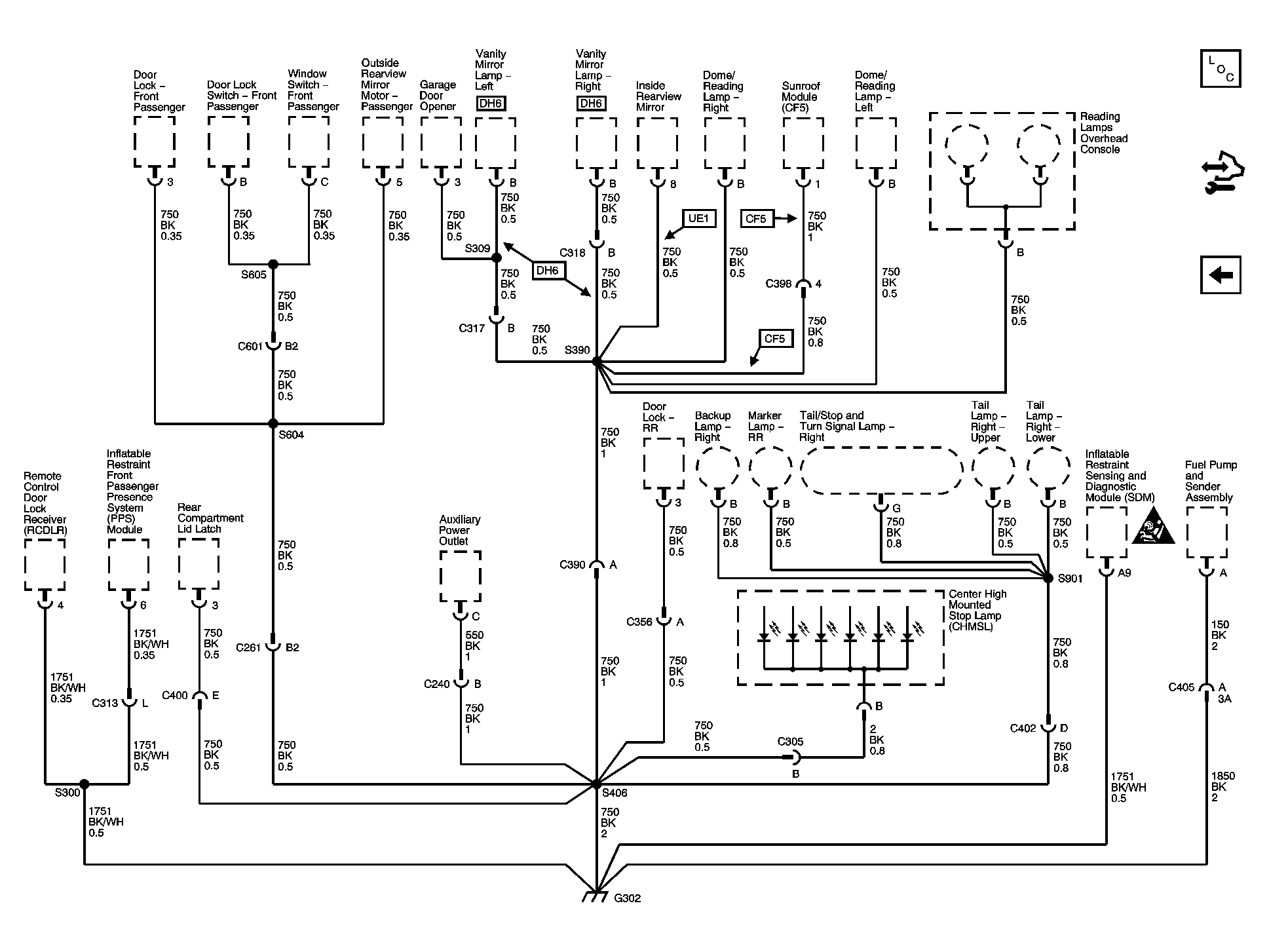

Fig 9: G302 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: G130, G131 - LY7 Schematic

Courtesy of GENERAL MOTORS CORP.
