Exhaust Manifold Replacement - Right (LY7)
WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Exhaust Manifold Replacement - Right (LY7)

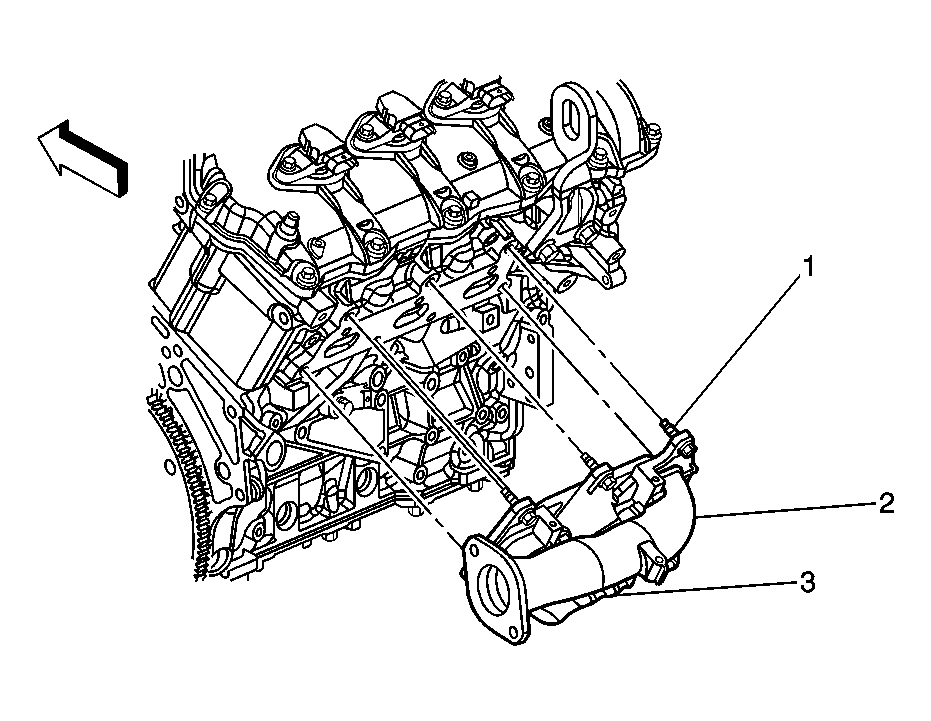

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure Remove the exhaust crossover pipe. Refer to Exhaust Crossover Pipe Replacement (RPOs L26/L32) or Exhaust Crossover Pipe Replacement (RPO LY7) . |
|
| 1 | Bolts, Exhaust Manifold (Qty: 7) Tighten: 20 N.m (15 lb ft) |
| 2 | Manifold, Right Rear Exhaust |
| 3 | Gasket, Right Rear Exhaust Manifold |
