Thermostat Housing Replacement (LY7)

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

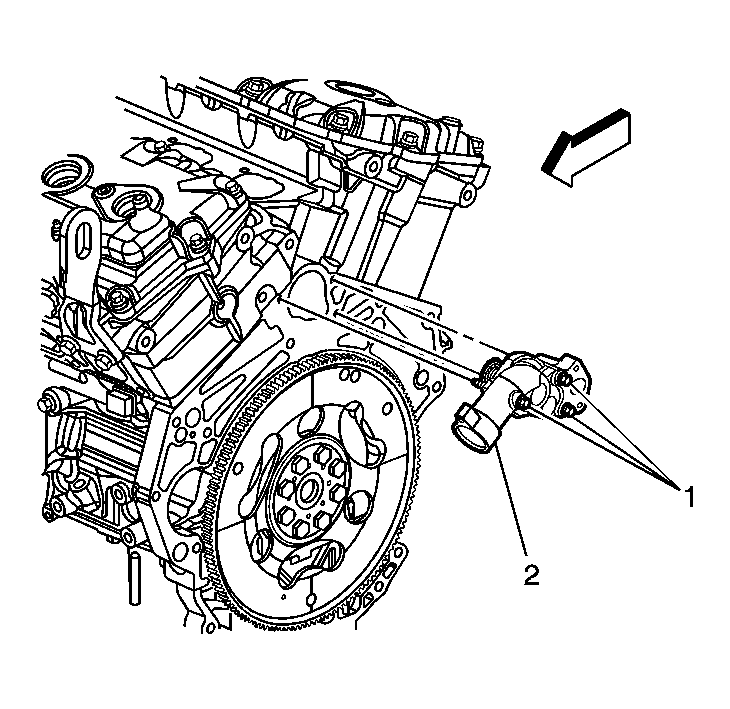

Fig 1: Thermostat Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the heater hoses. Refer to Heater Hoses Replacement (LY7) . Remove the throttle body. Refer to Throttle Body Assembly Replacement . Remove the radiator water pipe outlet. Refer to Radiator Pipe Replacement - Outlet .
1	Bolt, Thermostat Housing (Qty: 3)
2	Housing, Thermostat Tip: The thermostat and thermostat housing are serviced as a unit. They are not serviced separately.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the heater hoses. Refer to Heater Hoses Replacement (LY7) .
Remove the throttle body. Refer to Throttle Body Assembly Replacement .
Remove the radiator water pipe outlet. Refer to Radiator Pipe Replacement - Outlet .

Bolt, Thermostat Housing (Qty: 3)

Housing, Thermostat
Tip: The thermostat and thermostat housing are serviced as a unit. They are not serviced separately.
