Inside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

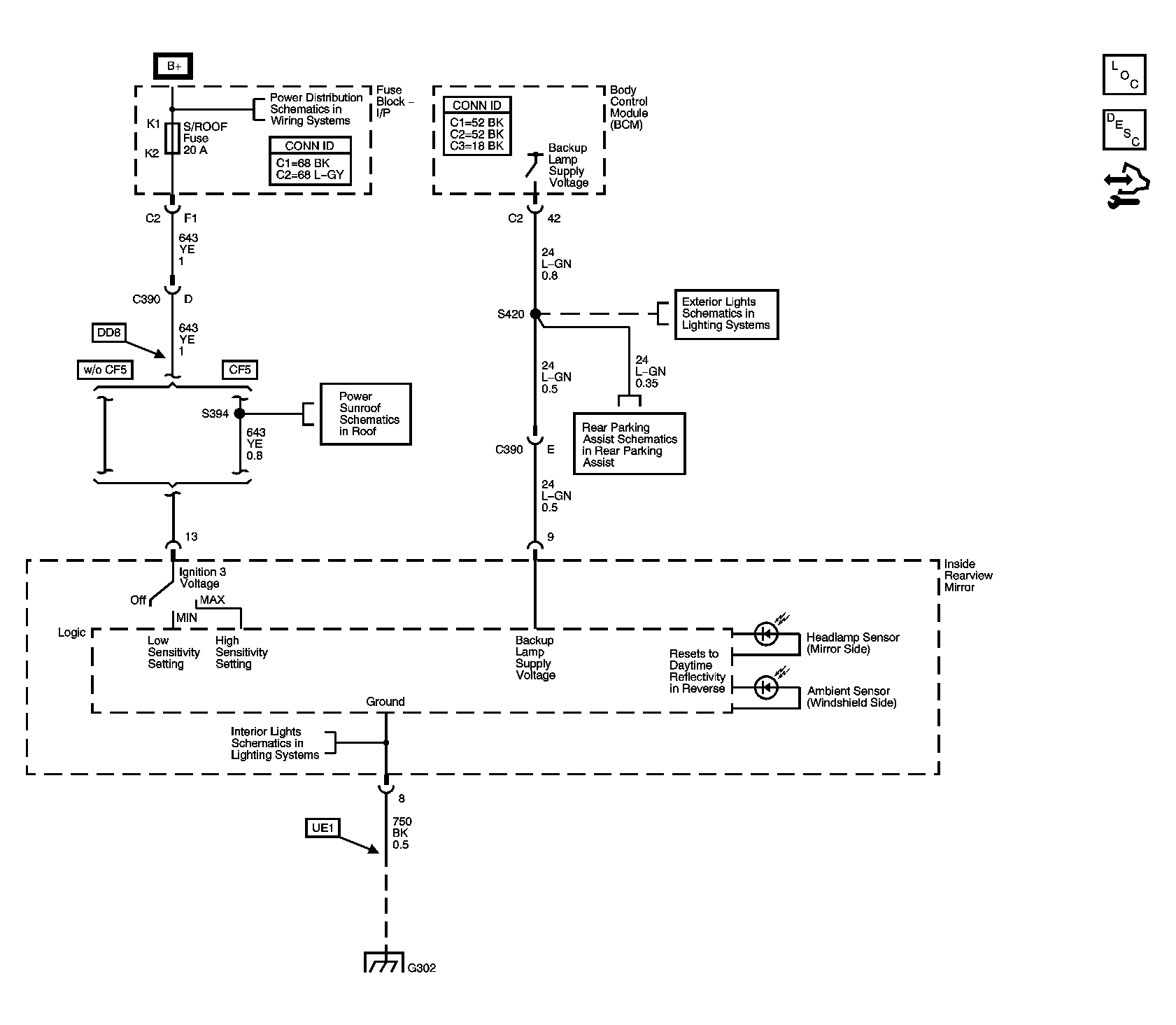

Fig 1: Inside Rearview Mirror Schematic
GM1485889Courtesy of GENERAL MOTORS CORP.
