Hood, Hinge, Rod, Stud Replacement - Hood
WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Hood, Hinge, Rod, Stud Replacement - Hood

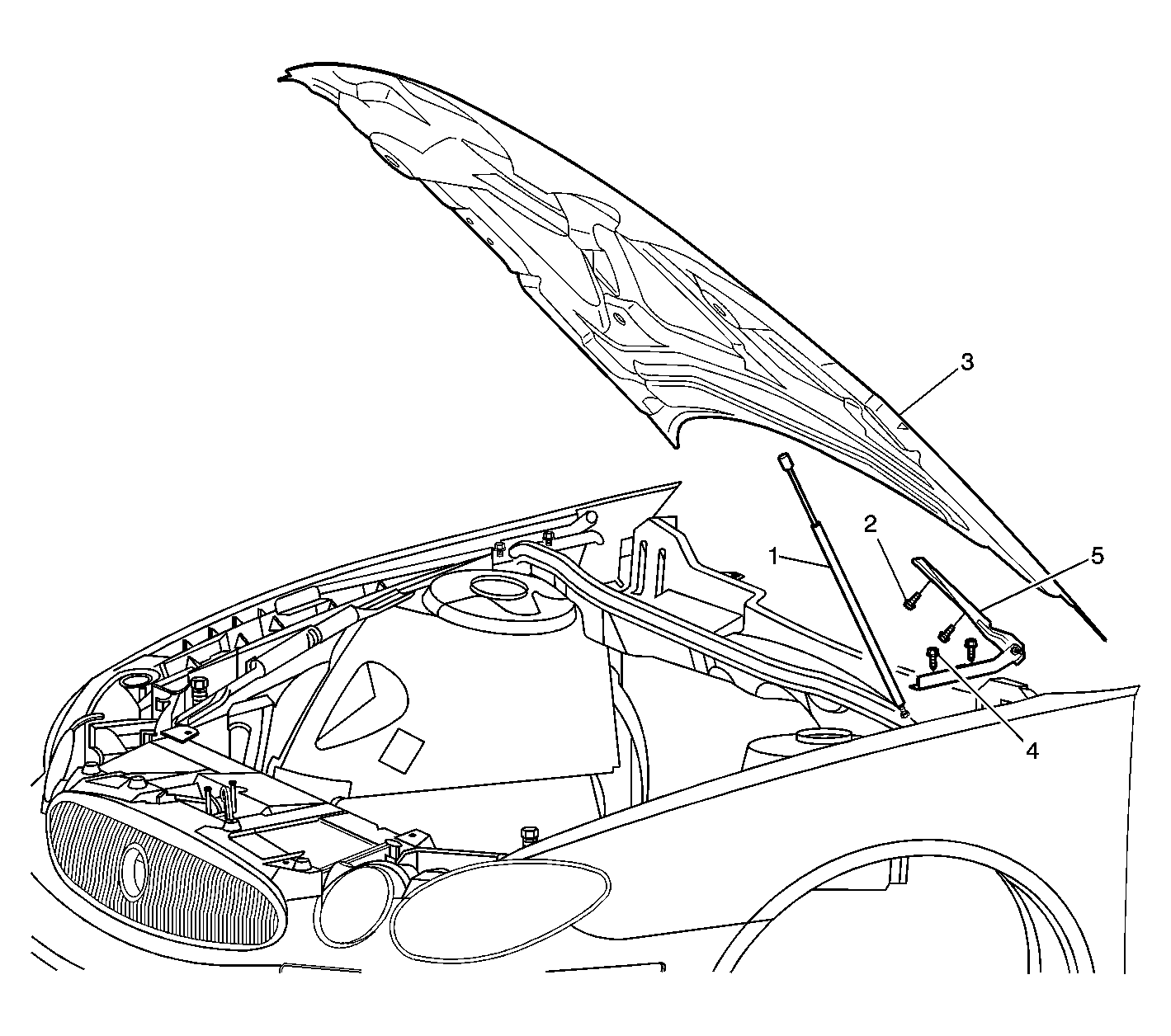

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Hood Open Assist Rod Assembly Replacement | |
| 1 | Rod Assembly, Hood Open Assist (Qty: 2)
CAUTION:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
NOTE:
Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip: Remove the metal clip at the ends of the assist rod, then pull away from stud. |
| Hood Replacement | |
| 1 | Rod Assembly, Hood Open Assist (Qty: 2)
CAUTION:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
NOTE:
Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip:
|
| 2 | Bolt, Hood Hinge (Qty: 4) Tighten: 24 N.m (18 lb ft) |
| 3 | Hood Assembly |
| Hood Hinge Replacement | |
| 1 | Rod Assembly, Hood Open Assist (Qty: 2)
CAUTION:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
NOTE:
Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip: Remove the metal clip at the ends of the assist rod, then pull away from stud. |
| 2 | Bolt, Hood Hinge (Qty: 4) Tighten: 24 N.m (18 lb ft) |
| 3 | Hood Assembly |
| 2 | Bolt, Hood Hinge (Qty: 4) Tighten: 24 N.m (18 lb ft) |
| 4 | Bolt, Hood Hinge Lower (Qty: 4) Tighten: 24 N.m (18 lb ft) |
| 5 | Hood Hinge (Qty: 2) |
