Assembly Procedure

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2006 Saturn Relay, 2006 Pontiac Montana SV6, 2006 Pontiac Grand Prix, 2006 Pontiac G6, and 2006 Chevrolet Uplander. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying 2-1 Manual Band Servo Assembly
    GM13033Courtesy of GENERAL MOTORS CORP.
  1. Install the 2-1 manual band servo cover seal (105) into the case. Lubricate the 2-1 manual band servo cover seal (105) with automatic transmission fluid.
    2. NOTE: Do not damage the 2-1 manual band servo exhaust screen on installation.
  2. Install the 2-1 manual band servo assembly (106-116) into the case. Make sure that the 2-1 manual band servo pin engages the 2-1 manual band assembly.

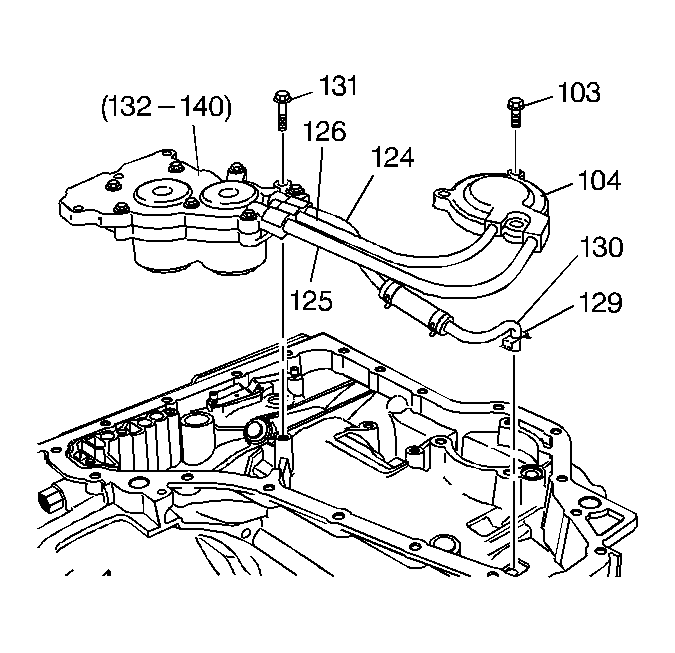

    3. Fig 2: Installing Accumulator And 2-1 Manual Band Servo Cover Assembly
    GM13034Courtesy of GENERAL MOTORS CORP.
  3. Install the accumulator (132-140) and 2-1 manual band servo cover assembly (104) into the case.
  4. Install the lube oil pipe and washer assembly (130) through the case and into the lube hole in the differential carrier internal gear.
  5. Use a screwdriver in order to lock the lube oil pipe retainer (129) into the case.
    6. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the three 2-1 manual band servo cover bolts (103).

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  7. Install the four accumulator cover bolts (131).

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).
