Removal Procedure

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2006 Saturn Relay, 2006 Pontiac Montana SV6, 2006 Pontiac Grand Prix, 2006 Pontiac G6, and 2006 Chevrolet Uplander. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing Accumulator Cover & Manual 2-1 Band Servo Cover Bolts
    GM29358Courtesy of GENERAL MOTORS CORP.
  1. Remove the four indicated accumulator cover bolts (131) from the 1-2 and 2-3 accumulator cover (132).
  2. Remove the three indicated bolts (103) from the manual 2-1 band servo cover (104).
    3. Fig 2: Prying Out Lube Oil Pipe Retainer
    GM10497Courtesy of GENERAL MOTORS CORP.
  3. Use a large screwdriver in order to gently pry the lube oil pipe retainer (129) from the case.
  4. Remove the lube oil pipe (130) from the front differential carrier internal gear lube hole.

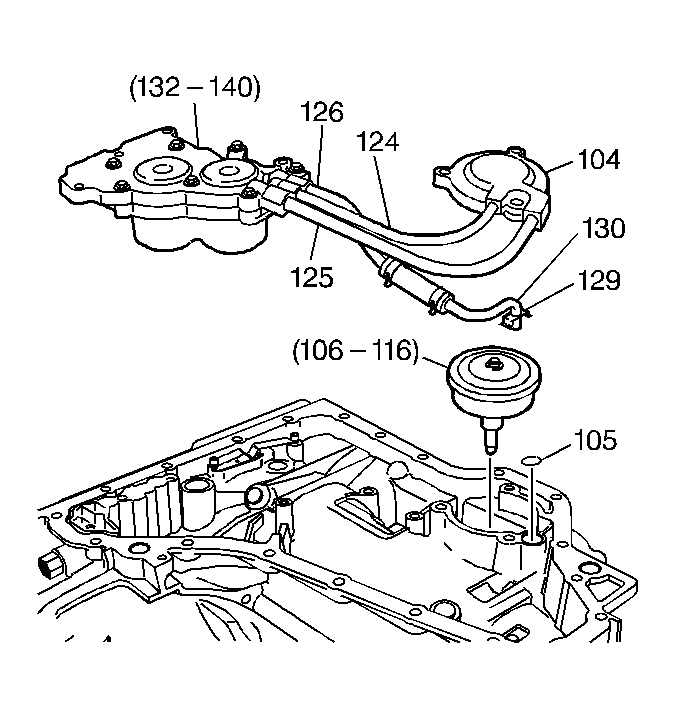

    5. Fig 3: Disconnecting 1-2 & 2-3 Accumulator Assembly & Manual 2-1 Band Servo Assembly
    GM10498Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not twist or damage the pipe assembly when removing the pipe assembly.
  5. Remove the 1-2 and 2-3 accumulator assembly (132-140), the pipe assembly (124-126) and the manual 2-1 band servo cover (104).
  6. Remove the manual 2-1 band servo assembly (106-116) out of the case at the same time.
  7. Remove the cover seal (105) from the manual 2-1 band servo assembly.
