Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the muffler heat shield.
  2. Position the heat shield to the underbody, if equipped with a LWB.
    3. Fig 1: Identifying Muffler Heat Shield Rivets
    GM1681514Courtesy of GENERAL MOTORS CORP.
  3. Install NEW rivets attaching the muffler heat shield to the underbody.
  4. Position the heat shield to the underbody.

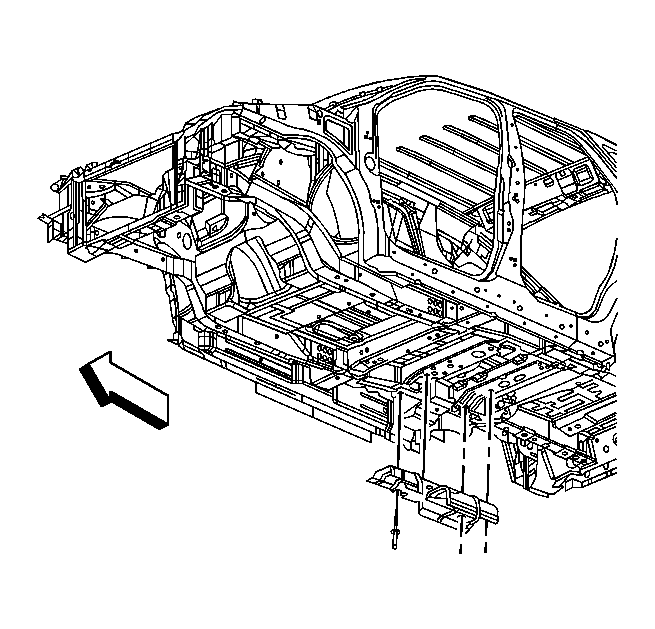

    5. Fig 2: Identifying Exhaust Muffler Heat Shield Rivets
    GM1681511Courtesy of GENERAL MOTORS CORP.
  5. Install NEW rivets attaching the muffler heat shield to the underbody.
  6. Install muffler. Refer to Muffler Replacement .
