Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: View Of Oil Drain Plug
    GM1556785Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan drain plug
  3. Drain the crankcase.
  4. Reinstall the oil pan drain plug.

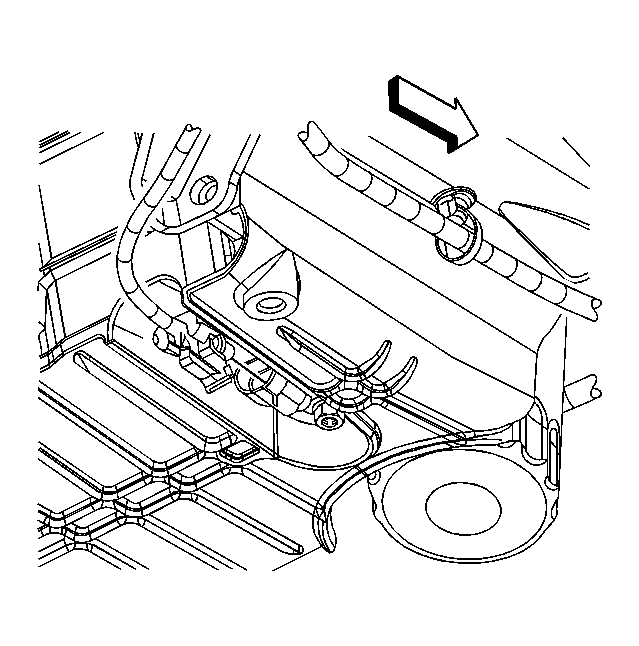

    5. Fig 2: Identifying Engine Harness & Clips
    GM1677214Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the engine oil level sensor electrical connector.
  6. Remove the engine oil level sensor bolt and sensor
