Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

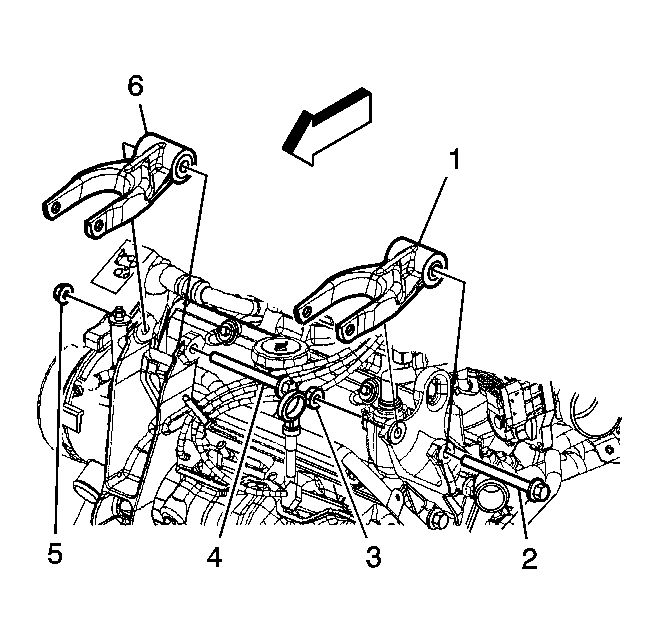

    Fig 1: Identifying Engine Mount Strut Bracket
    GM1675028Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut (6).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install and tighten the engine mount strut to engine mount strut bracket through bolt (4) and nut (5).

    Tighten:  Tighten the bolt/nut to 48 N.m (36 lb ft).

  3. Install intake manifold cover. Refer to Intake Manifold Cover Replacement .
    4. Fig 2: Identifying Engine Mount Strut Bracket Through Bolt & Nut
    GM1675030Courtesy of GENERAL MOTORS CORP.
  4. Install and tighten the engine mount strut to engine mount strut bracket through bolt (3) and nut (4).

    Tighten:  Tighten the bolt/nut to 48 N.m (36 lb ft).
