Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

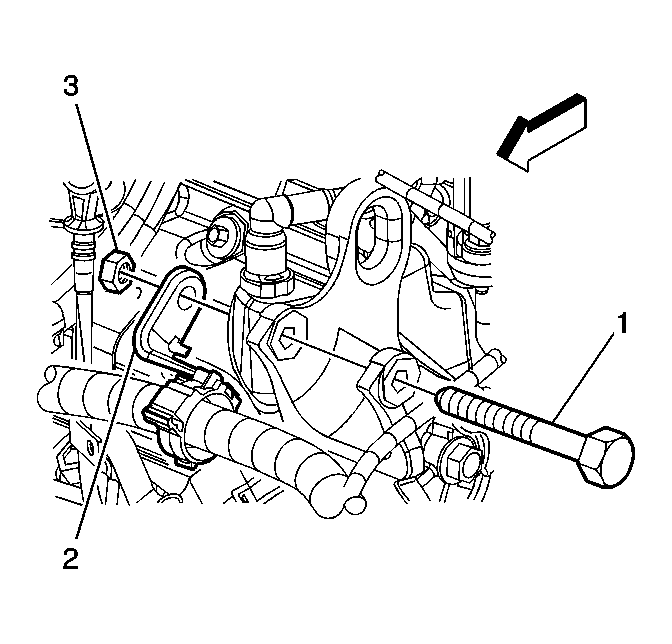

    2. Fig 1: Identifying Engine Mount Strut Bracket Through Bolt
    GM1675188Courtesy of GENERAL MOTORS CORP.
  2. Loosen the engine mount strut to engine mount strut bracket through bolt (1) and nut (3).
  3. Remove the engine mount strut bracket through bolt nut (3).
  4. Remove the engine harness clip (2) from the through bolt.
    5. Fig 2: Identifying Engine Mount Strut Bracket Through Bolt & Nut
    GM1675030Courtesy of GENERAL MOTORS CORP.
  5. Loosen and remove the engine mount strut to engine mount strut bracket through bolt (1) and nut (2).
    6. Fig 3: Identifying Engine Mount Strut Bracket
    GM1675028Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine mount strut to engine mount strut bracket through bolt (2).
  7. Remove the engine mount strut (1).
  8. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
