Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

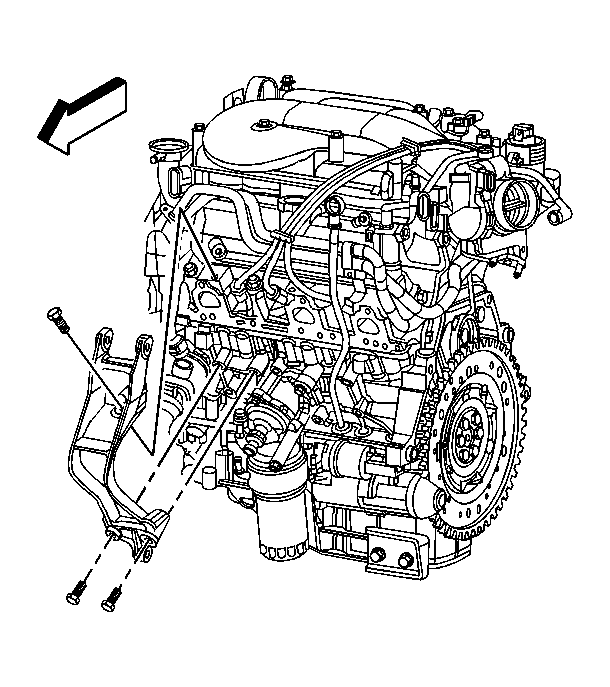

Fig 1: Identifying Engine Mount Strut Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Position the engine mount strut bracket to the engine.
Install the upper engine mount strut bracket bolt.
Raise the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lower engine mount strut bracket bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).

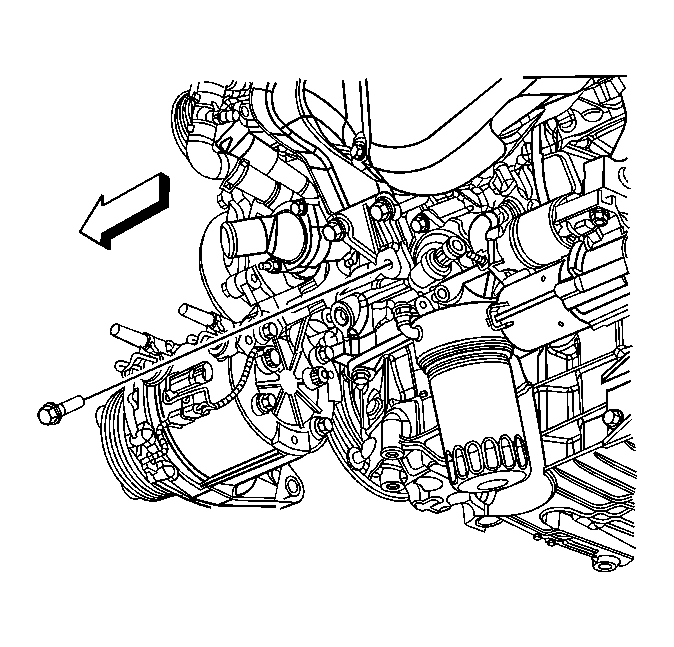

Fig 2: Identifying A/C Compressor Rear Bolt

Courtesy of GENERAL MOTORS CORP.

Position and install the A/C compressor onto the stud.
Install the A/C compressor rear bolt.
Tighten: Tighten the bolt to 50 N.m (37 lb ft).

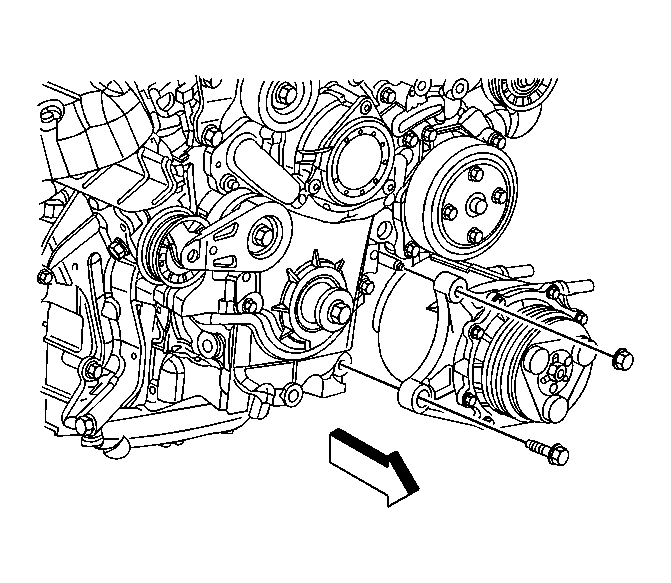

Fig 3: Identifying A/C Compressor Front Bolt & Nut

Courtesy of GENERAL MOTORS CORP.

Install the A/C compressor front bolt and nut.
Tighten: Tighten the bolt/nut to 50 N.m (37 lb ft).
Install the drive belt. Refer to Drive Belt Replacement .
Install right front engine splash shield. Refer to Splash Shield Replacement - Engine .
Remove the radiator air baffle. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS .

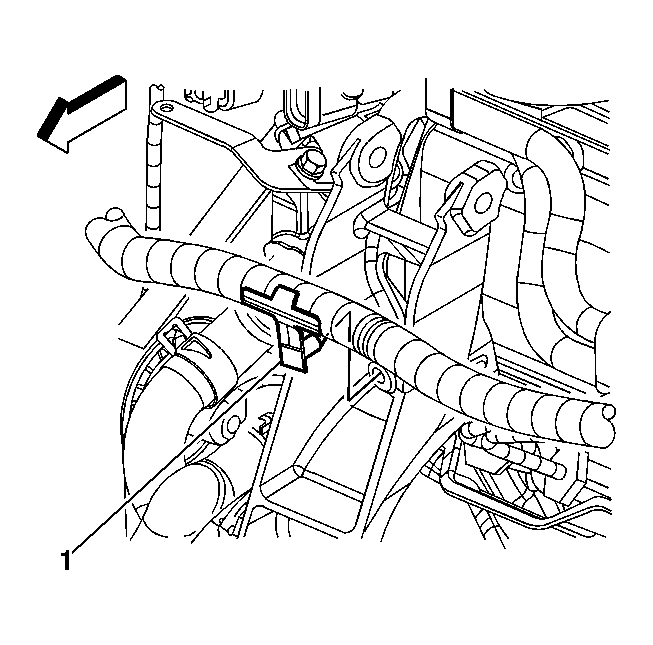

Fig 4: Identifying Engine Harness Clip

Courtesy of GENERAL MOTORS CORP.

Install the engine harness clip (1) to the engine mount strut bracket.

Fig 5: Identifying Engine Mount Strut Bracket

Courtesy of GENERAL MOTORS CORP.

Rotate the engine mount strut into position.
Install and tighten the engine mount strut to engine mount strut bracket through bolt (4) and nut (5).
Tighten: Tighten the bolt/nut to 48 N.m (36 lb ft).
Install intake manifold cover. Refer to Intake Manifold Cover Replacement .
