Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

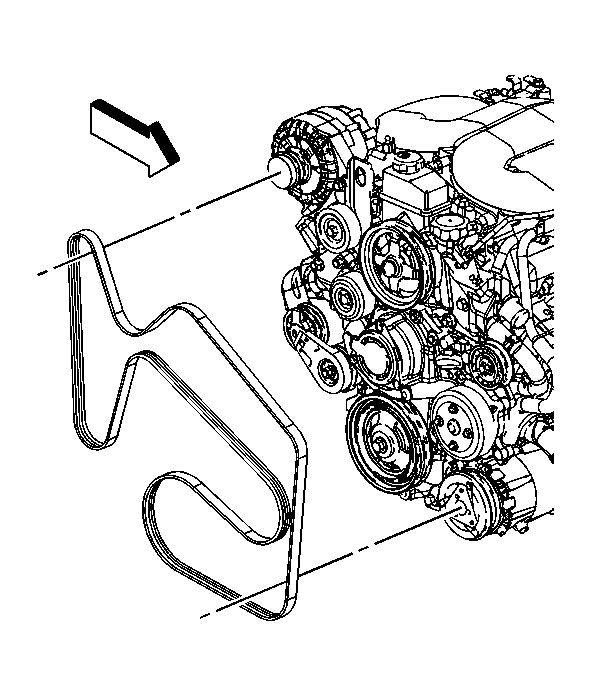

    Fig 1: Drive Belt 3.9L
    GM1581764Courtesy of GENERAL MOTORS CORP.
  1. Rotate the drive belt tensioner counterclockwise in order to release the tensioner spring tension.
  2. Remove the drive belt (1), if equipped with electric power steering.
  3. Remove the drive belt (2), if equipped with hydraulic power steering.
