Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

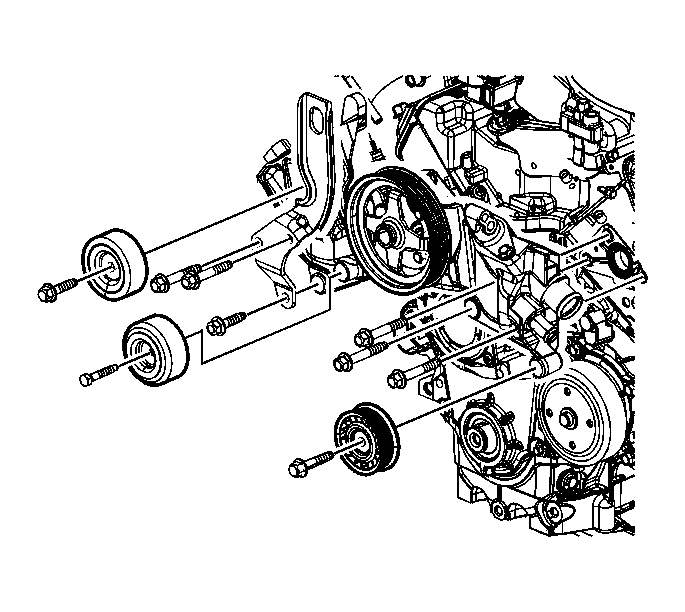

    Fig 1: View Of Drive Belt Idler Pulley
    GM1556796Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the drive belt idler pulley.
  2. Tighten the required drive belt idler pulley bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .
