Installation Procedure
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
- Install the upper intake manifold gaskets and manifold.
- Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the upper intake manifold bolt threads.
- Install the upper intake manifold bolts, stud and MAP sensor bracket.
Tighten: Tighten the upper intake manifold bolts and stud to 25 N.m (18 lb ft).

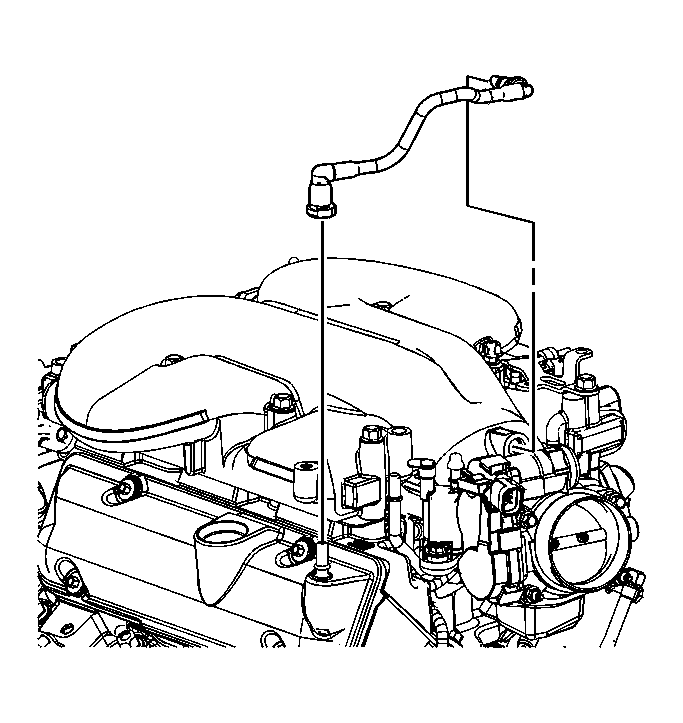

- Install the foul air PCV tube.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
