Passenger Seat Schematics

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

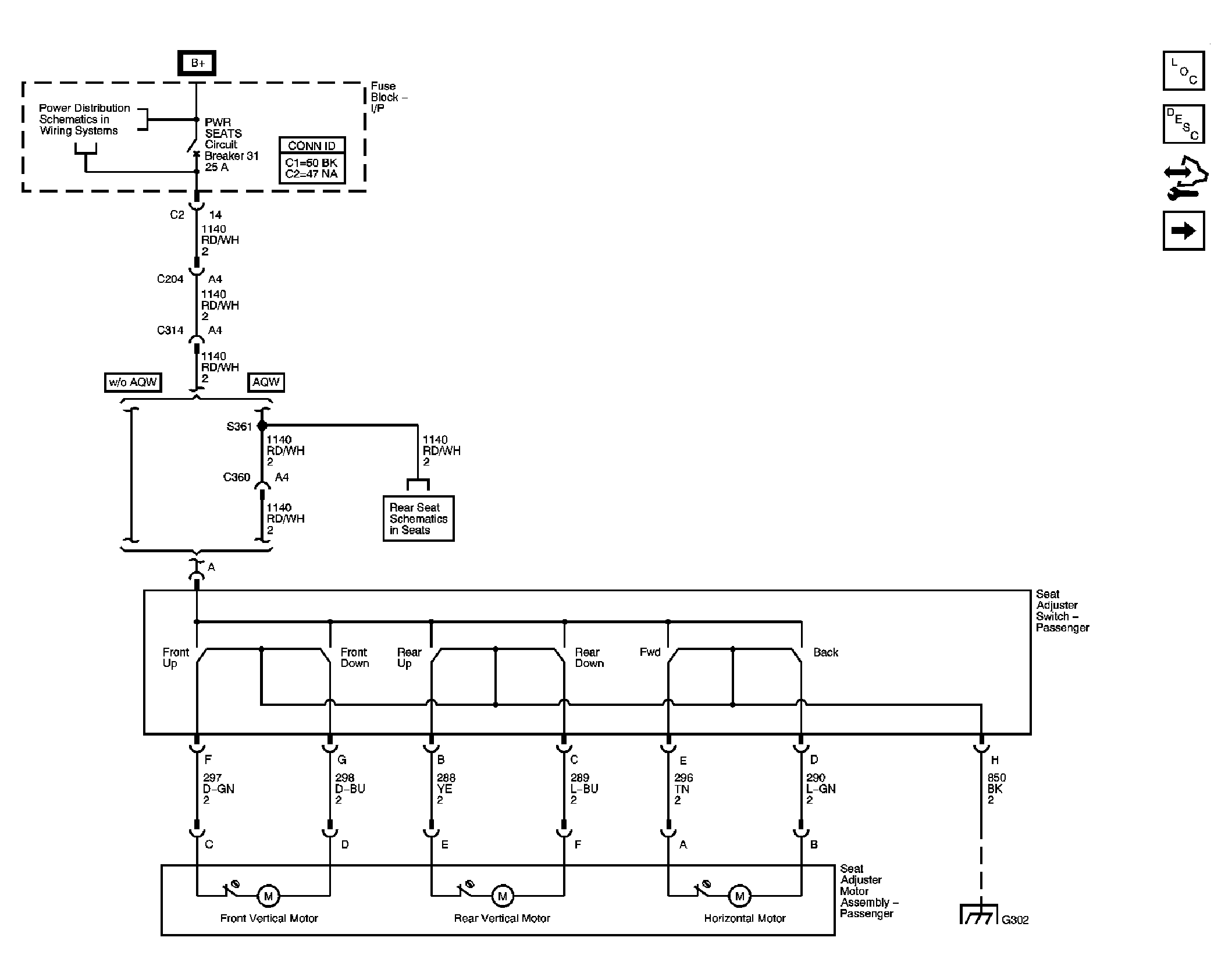

Fig 1: 6-Way Power Seat Schematic

Courtesy of GENERAL MOTORS CORP.

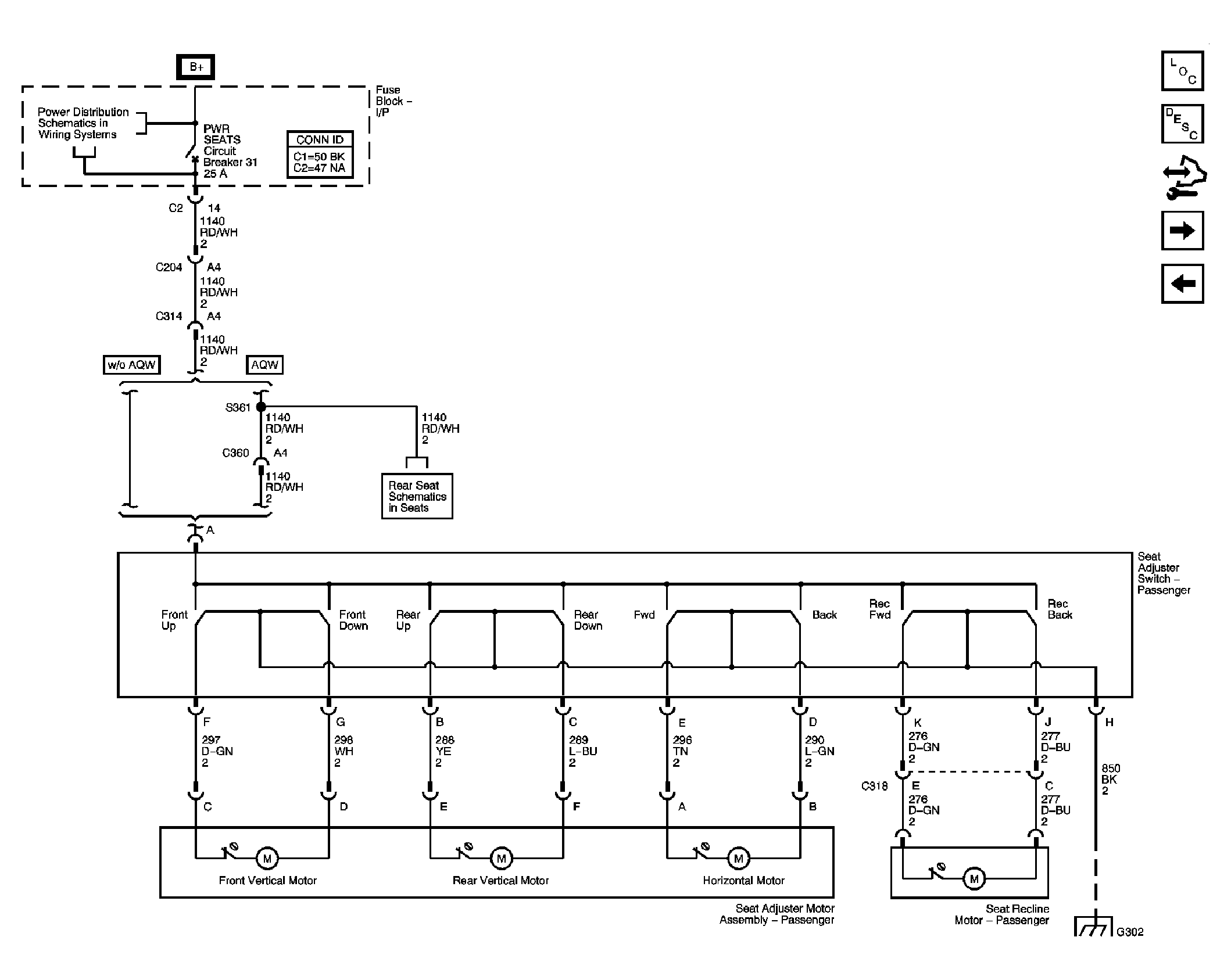

Fig 2: 8-Way Power Seat Schematic

Courtesy of GENERAL MOTORS CORP.

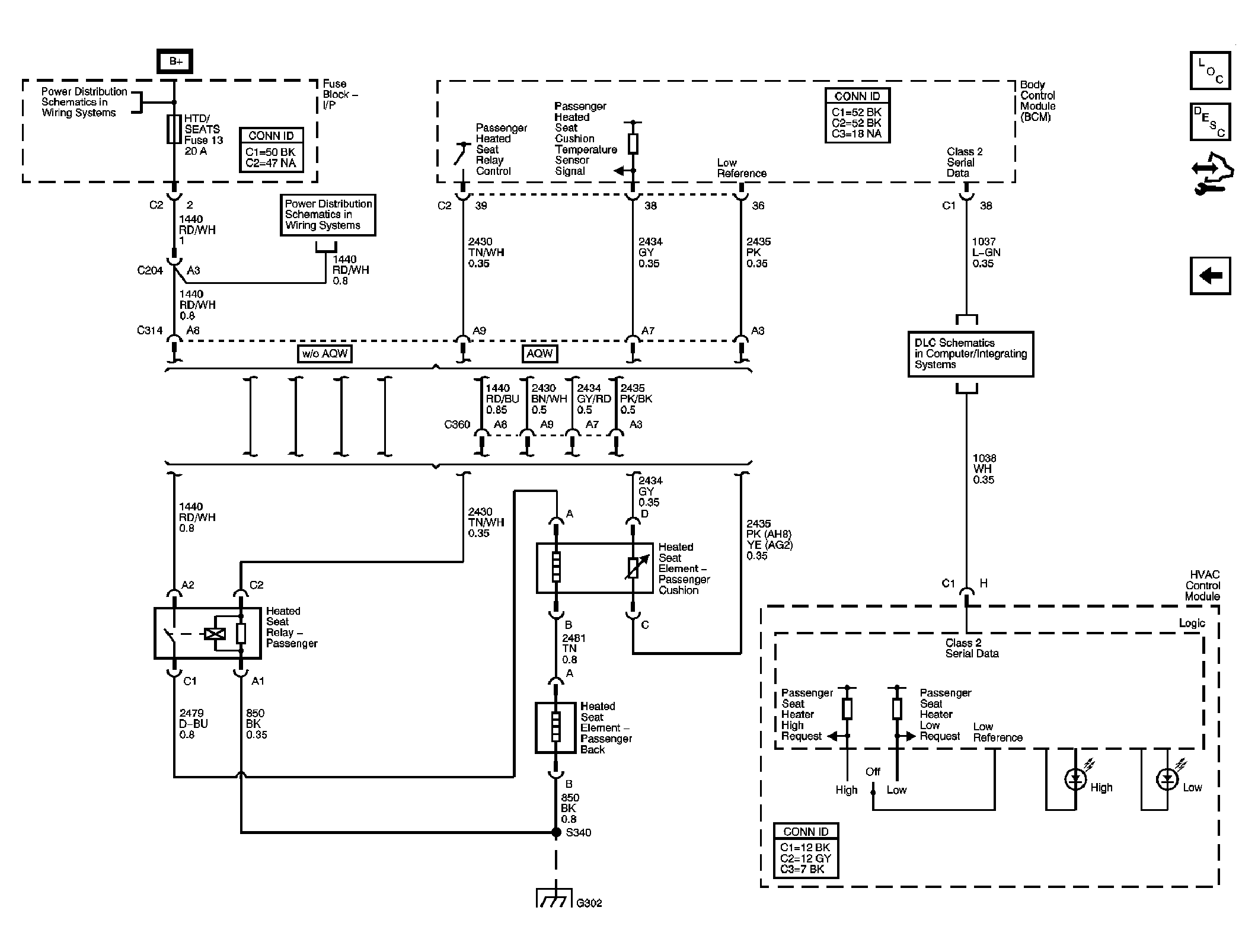

Fig 3: Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.
