Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Cap or tape the open air conditioning (A/C) components immediately in order to prevent system contamination.
    Fig 1: Identifying Suction & Discharge Hoses (w/C60 Compressor)
    GM1547616Courtesy of GENERAL MOTORS CORP.
  1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging .
  2. Remove the discharge hose to A/C condenser bolt (3).
  3. Remove the discharge hose from the A/C condenser.
  4. Remove and discard the sealing washer (2).
  5. Cap or tape the discharge port on the A/C condenser.

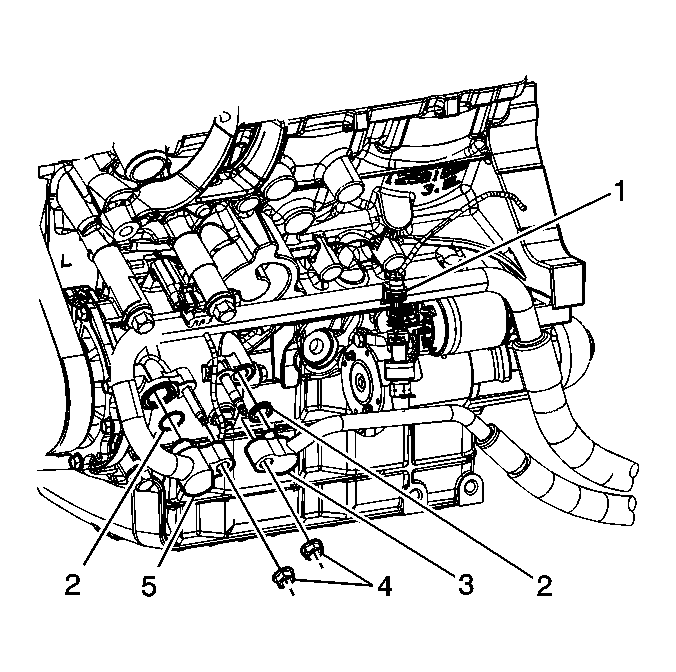

    6. Fig 2: Identifying Compressor Hoses & Mounting Equipment
    GM1547615Courtesy of GENERAL MOTORS CORP.
  6. Remove the discharge hose to A/C compressor nut.
  7. Remove the discharge hose (3) from the A/C compressor.
  8. Remove and discard the sealing washer (2).
  9. Cap or tape the A/C compressor discharge port.
  10. Remove the discharge hose.
