Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

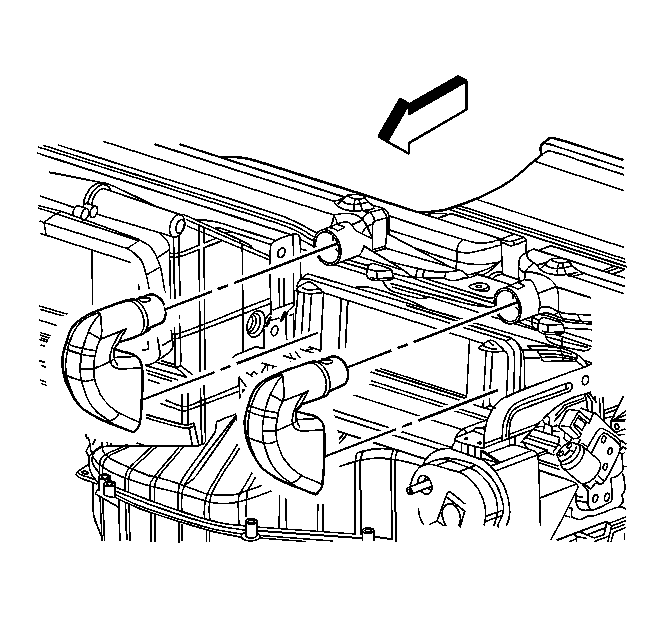

    Fig 1: Identifying Side Window Duct To Defroster Duct
    GM1547651Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel (I/P) assembly. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel, Gages and Console.
  2. Remove the side window duct from the I/P carrier.
  3. Remove side window duct from the defroster duct.
