Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

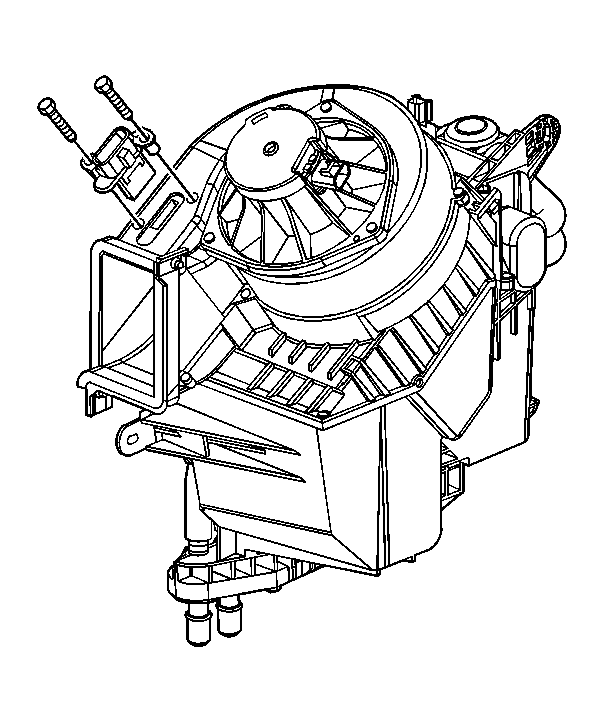

    Fig 1: View Of Auxiliary Blower Motor Resistor
    GM691782Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary blower motor resistor to the auxiliary HVAC module assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the auxiliary blower motor resistor screws.

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the auxiliary blower motor resistor electrical connector.
  4. Install the accessory panel from the left rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter - Left .
