Air Outlet Replacement - Instrument Panel

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

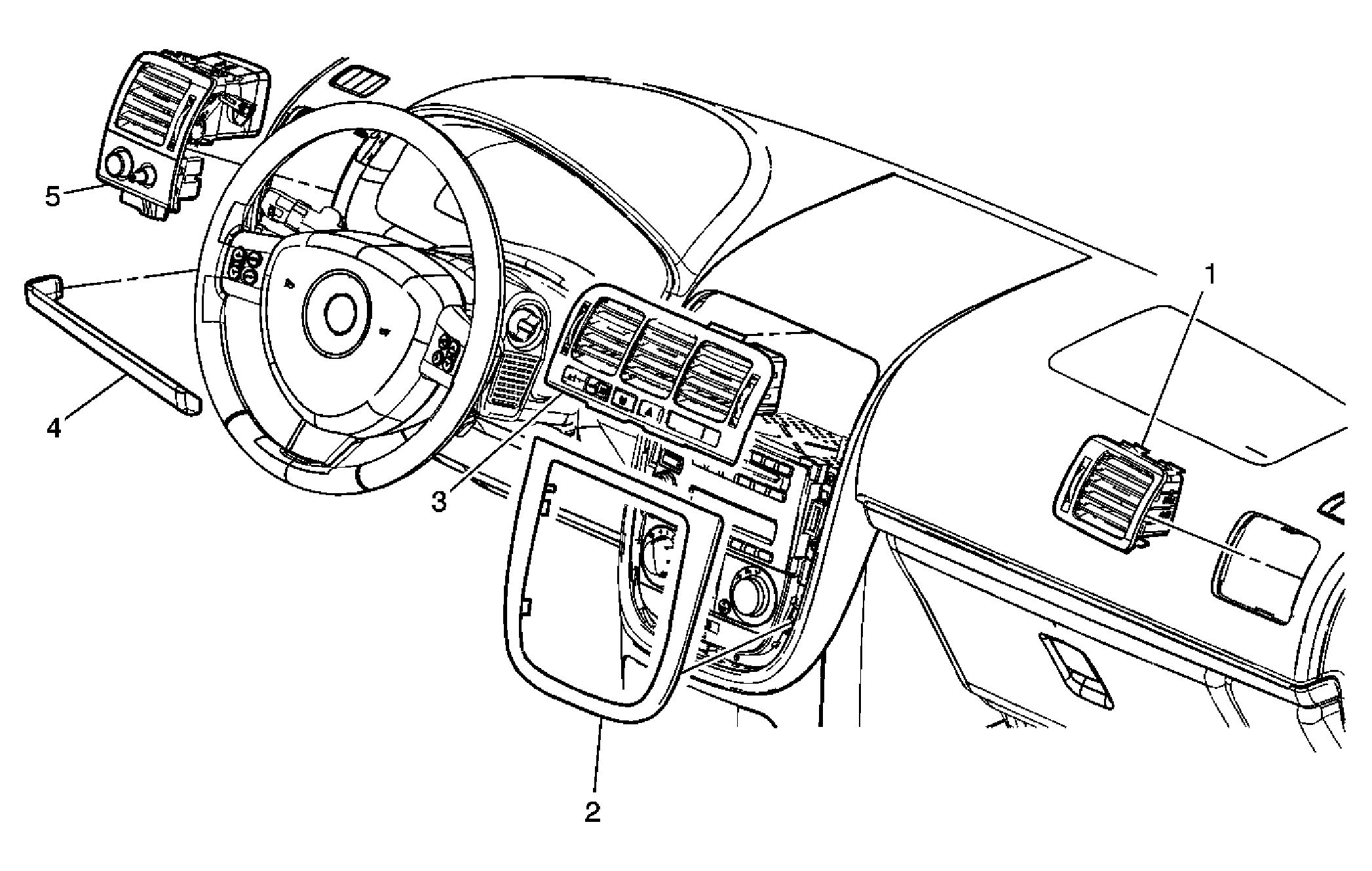

Fig 1: View Of Instrument Panel Air Outlet Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
I/P A/C Outlet Assembly Replacement - Right
1	Outlet Assembly, Instrument Panel (I/P) A/C Right
I/P A/C Outlet Assembly Replacement - Center
2	Panel, I/P Accessory Trim
3	Outlet Assembly, I/P A/C Center Tip: Pull rearward of the I/P to remove. Disconnect the electrical connectors from the switches. Remove the switches if replacing the outlet assembly.
I/P A/C Outlet Assembly Replacement - Left
4	Molding Assembly, I/P Steering Column Opening
5	Outlet Assembly, I/P A/C Left Tip: Pull rearward of the I/P to remove. Disconnect the electrical connector from the headlamp switch. Remove the headlamp switch if replacing the outlet assembly.
