Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Defroster Outlet Duct To I/P Carrier
    GM1547647Courtesy of GENERAL MOTORS CORP.
  1. Install the defroster outlet duct to the I/P carrier.

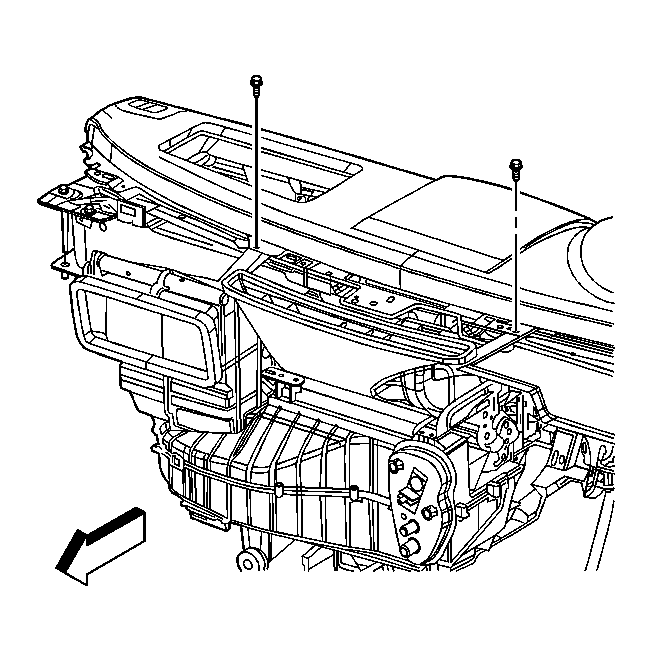

    2. Fig 2: Identifying Defroster Outlet Duct Bolts
    GM1547646Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the defroster outlet duct bolts.

    Tighten:  Tighten the bolts to 1.2 N.m (11 lb in).

  3. Install the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console.
