Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

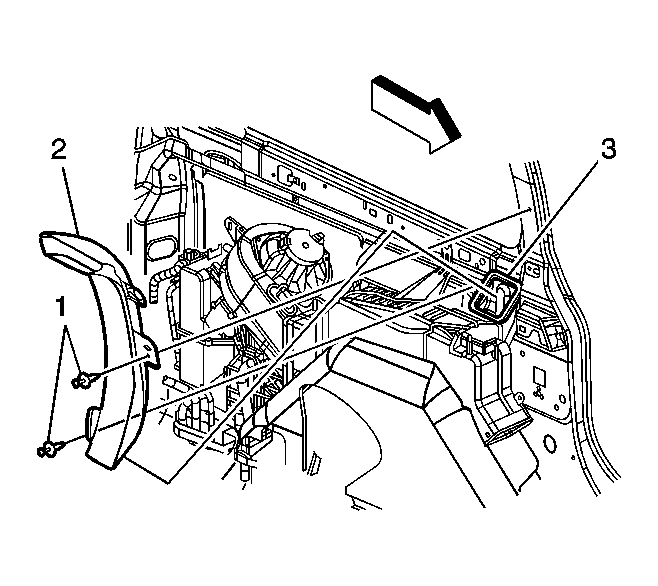

    Fig 1: Locating A/C Outlet Pillar Duct
    GM1548551Courtesy of GENERAL MOTORS CORP.
  1. Install the A/C outlet pillar duct (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear (auxiliary) A/C outlet pillar duct bolts (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Install the left side rear quarter trim panel.
