Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Right Side Air Temperature Actuator Levers
    GM1548535Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The actuator lever (2) can only be inserted into the door one way.
  1. Install the right side air temperature actuator levers, if necessary.
  2. Check and correct the engagement between the actuator levers (1, 2).
    1. Install the actuator lever (2).
    2. Align the primary tooth (4) of the actuator lever (1) with the gap (3) in the actuator lever (2).

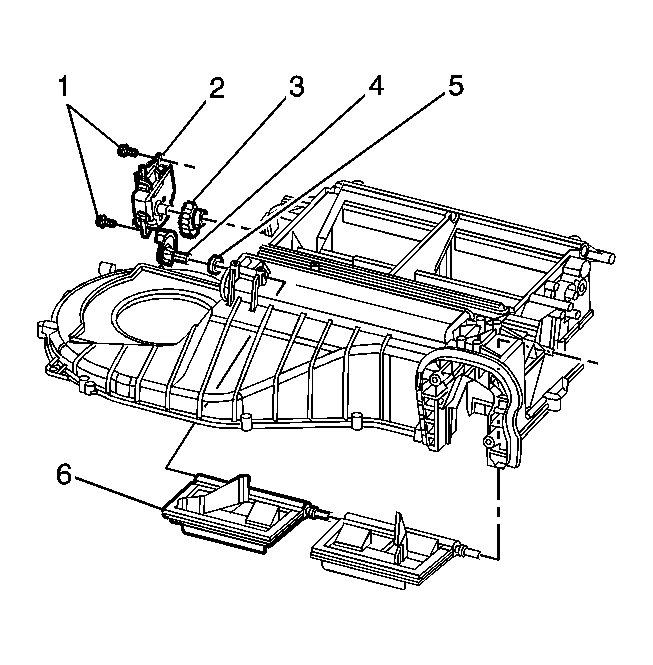

    3. Fig 2: Removing/Installing Air Temperature Actuator (Dual Zone)
    GM1548534Courtesy of GENERAL MOTORS CORP.
  3. Install the right side air temperature actuator (2).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the right side air temperature actuator bolts/screws.

    Tighten:  Tighten the bolts/screws to 1.2 N.m (11 lb in).

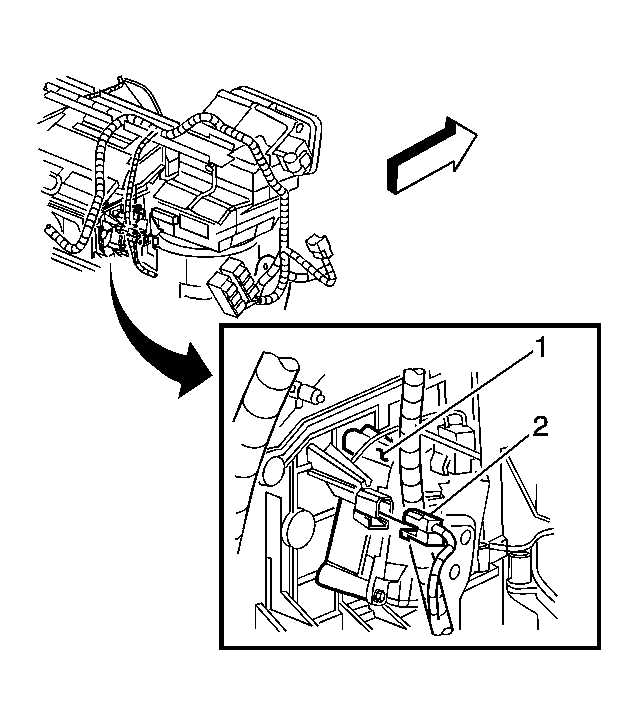

    5. Fig 3: Locating Air Temperature Actuator (Dual Zone)
    GM1548558Courtesy of GENERAL MOTORS CORP.
  5. Connect the right side air temperature actuator electrical connector (2).
    6. Fig 4: Locating Air Temperature Actuator Connector Clip (Dual Zone)
    GM1548544Courtesy of GENERAL MOTORS CORP.
  6. Ensure that the clip (1) on the connector is fully inserted to the holder on the case.
  7. Install the I/P compartment. Refer to Compartment Assembly, Door, Striker, Latch Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  8. Re-calibrate the actuators. Refer to Re-Calibrating Actuators .
