Seat Belt Schematics

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

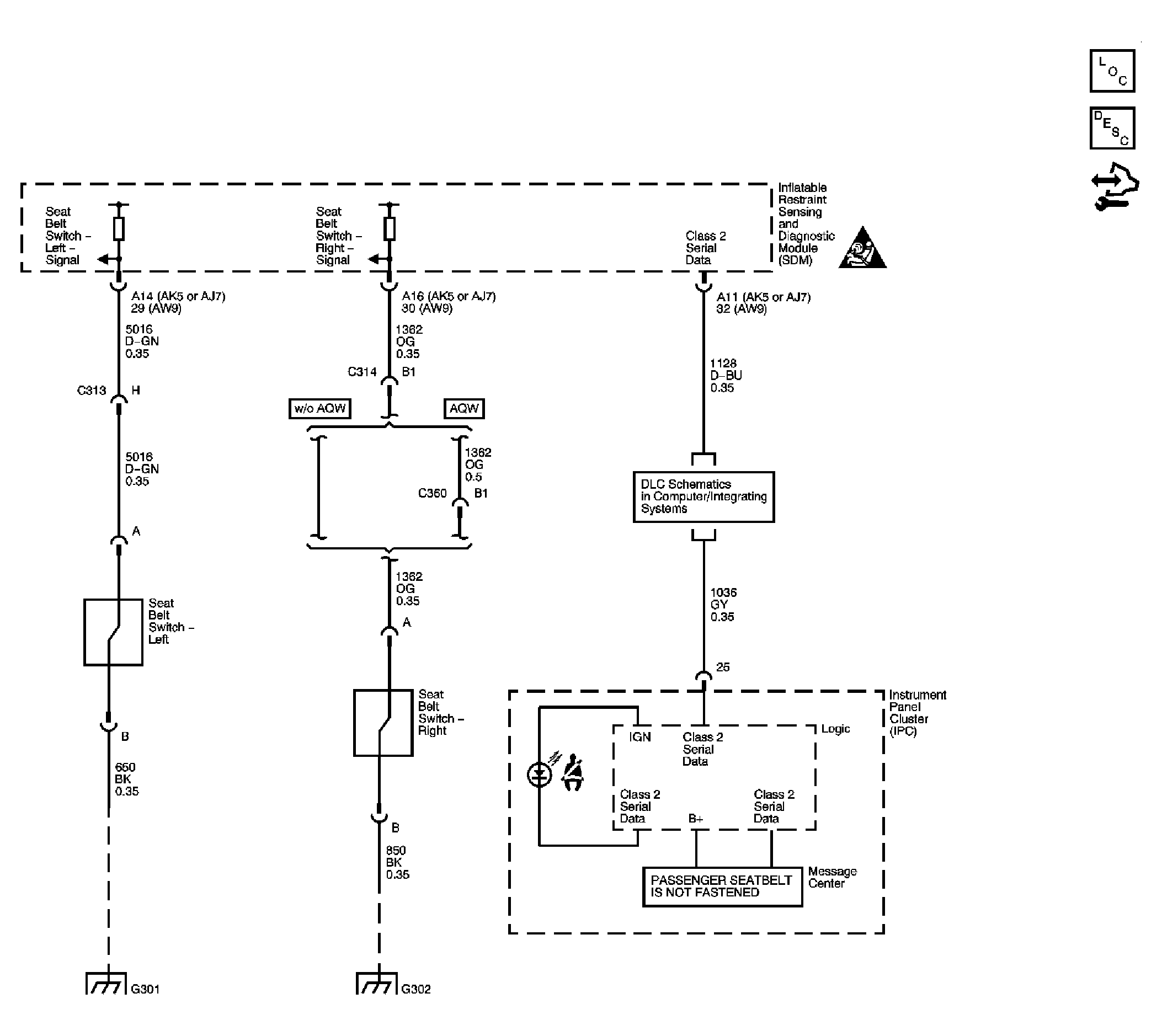

Fig 1: Seat Belt Schematic
GM1636971Courtesy of GENERAL MOTORS CORP.
