Shoulder Belt Guide Adjuster Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

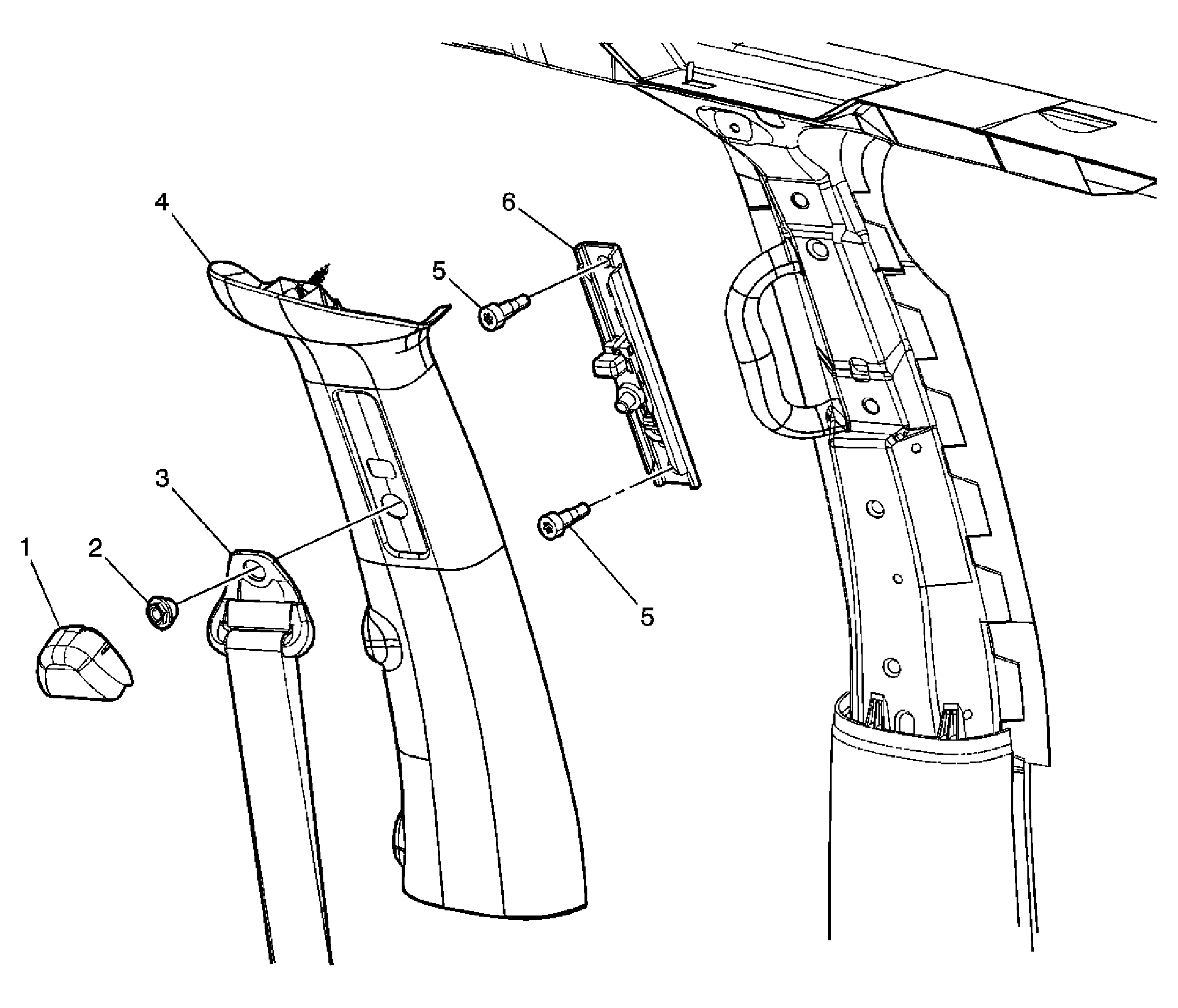

Fig 1: Identifying Front Shoulder Belt Guide Adjuster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cover, Shoulder Belt Guide Trim
2	Nut, Shoulder Belt Guide Tighten: 50 N.m (37 lb ft)
3	Guide, Shoulder Belt
4	Panel, Center Pillar Upper Trim Refer to Trim Panel Replacement - Upper Center Pillar .
5	Bolts, Shoulder Belt Guide Adjuster (Qty: 2) Tighten: 50 N.m (37 lb ft)
6	Adjuster, Shoulder Belt Guide Tip: Ensure that the release lever is at the top of the adjuster bracket in the full up position.
