Seat Belt Retractor Replacement - Left Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

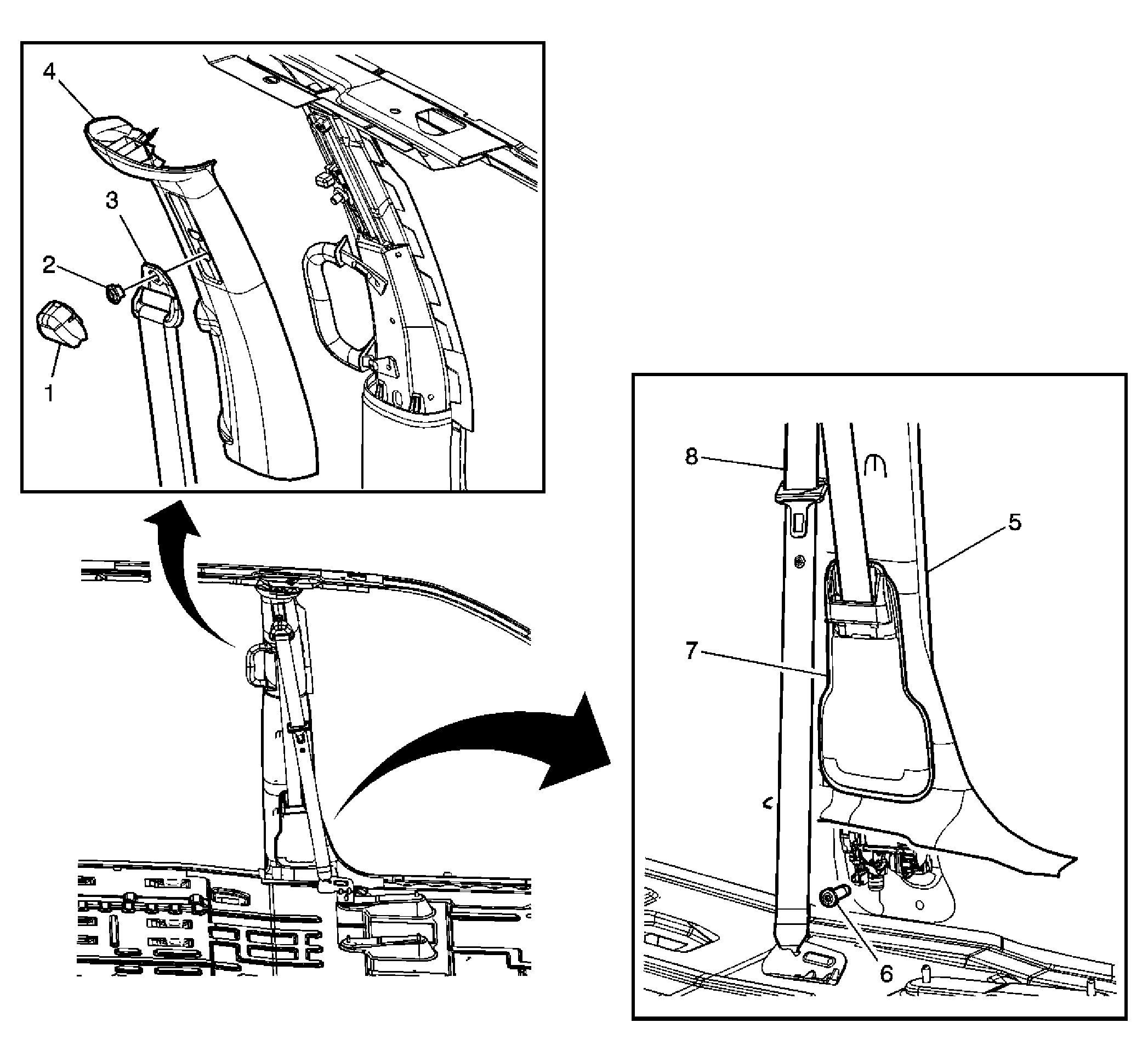

Fig 1: Identifying Left Front Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Cover, Shoulder Belt Guide Trim
2	Nut, Shoulder Belt Guide Tighten: 29 N.m (31 lb ft)
3	Guide, Shoulder Belt
4	Panel, Center Pillar Upper Trim Refer to Trim Panel Replacement - Upper Center Pillar .
5	Panel, Center Pillar Lower Trim Refer to Trim Panel Replacement - Lower Center Pillar . Tip: Lift the trim panel up enough to access the seat belt retractor bolt.
6	Bolt, Driver Seat Belt Retractor Tighten: 43 N.m (3 lb ft)
7	Bezel, Shoulder Belt Retractor
8	Belt Assembly, Driver Seat Tip: Remove the seat belt anchor from the seat stud. Remove the seat belt and lower trim panel as an assembly. Slide the bezel up and remove the belt from the lower trim panel.
