Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Adjusting Park Brake Tension At Equalizer Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the right rear wheel and tire. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Loosen the adjusting nut.

Fig 2: View Of Front Brake Cable Connected To Right Rear Cable

Courtesy of GENERAL MOTORS CORP.

Remove the right rear brake cable (1) from the connector (2).

Fig 3: View Of Inner Cable

Courtesy of GENERAL MOTORS CORP.

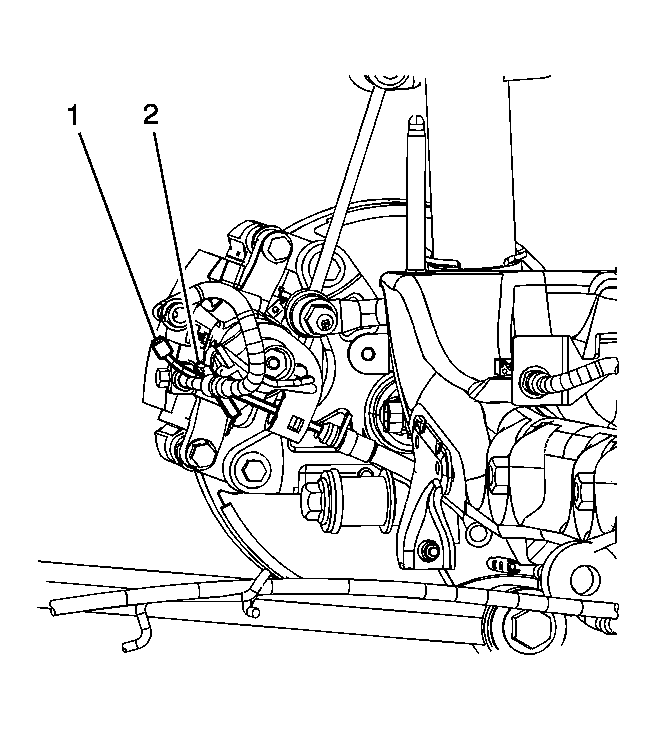

Remove the inner cable (1) from the brake caliper retaining bracket.

Fig 4: Pushing Inner Cable Forward

Courtesy of GENERAL MOTORS CORP.

Push the inner cable (1) as far forward as possible.
Rotate the tip of the inner cable toward the brake caliper and remove from the actuator (2).

Fig 5: View Of Cable Routing

Courtesy of GENERAL MOTORS CORP.

Remove the brake cable from the vehicle.
