Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Cable Routing

Courtesy of GENERAL MOTORS CORP.

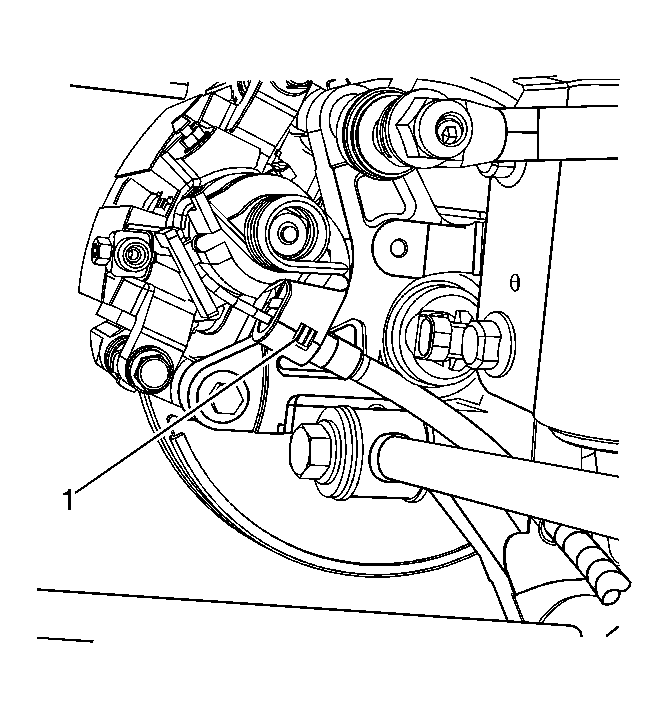

Install the brake cable in the brake caliper.

Fig 2: Pushing Inner Cable Forward

Courtesy of GENERAL MOTORS CORP.

Position the inner cable (1) in the actuator (2).

Fig 3: View Of Inner Cable

Courtesy of GENERAL MOTORS CORP.

Pull the inner cable (1) until the tip is seated in the actuator.

Fig 4: Brake Cable In The Retaining Bracket

Courtesy of GENERAL MOTORS CORP.

Install the brake cable in the retaining bracket (1) on the brake caliper.

Fig 5: Rear Park Brake Cable To Support Bracket Retainer (Z7U)

Courtesy of GENERAL MOTORS CORP.

Install the brake cable (1) in the mounting bracket.

Fig 6: View Of Front Brake Cable Connected To Right Rear Cable

Courtesy of GENERAL MOTORS CORP.

Install the brake cable (1) in the connector (2).

Fig 7: Adjusting Park Brake Tension At Equalizer Assembly

Courtesy of GENERAL MOTORS CORP.

Install the adjusting nut.
Adjust the park brakes. Refer to Park Brake Adjustment .
Install the right rear tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
