Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

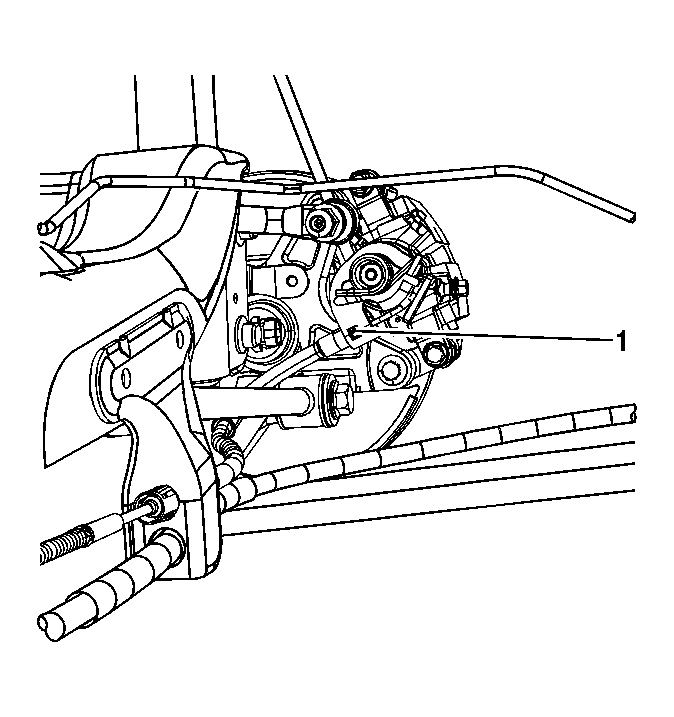

Fig 1: Removing/Installing Brake Cable From Vehicle

Courtesy of GENERAL MOTORS CORP.

Install the brake cable in the vehicle.

Fig 2: Removing/Installing Inner Cable

Courtesy of GENERAL MOTORS CORP.

Position the inner cable (1) in the brake caliper.
Rotate the end of the brake toward the brake caliper and position the cable in the actuator (2).

Fig 3: Installing Cable Into Actuator

Courtesy of GENERAL MOTORS CORP.

Pull the inner cable (1) until the end of the brake cable is seated in the actuator.

Fig 4: Removing/Installing Brake Cable

Courtesy of GENERAL MOTORS CORP.

Install the brake cable in the retaining bracket (1) on the brake caliper.
For vehicles equipped with ABS only, install the speed sensor harness to the trailing arm.

Fig 5: Rear Park Brake Cable To Support Bracket Retainer (Z7U)

Courtesy of GENERAL MOTORS CORP.

Install the brake cable (1) in the retaining bracket on the trailing arm.

Fig 6: Adjusting Park Brake Tension At Equalizer Assembly

Courtesy of GENERAL MOTORS CORP.

Install the adjusting nut.
Adjust the park brakes. Refer to Park Brake Adjustment .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
