Accessory Fill Valve Replacement
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Accessory Fill Valve Replacement

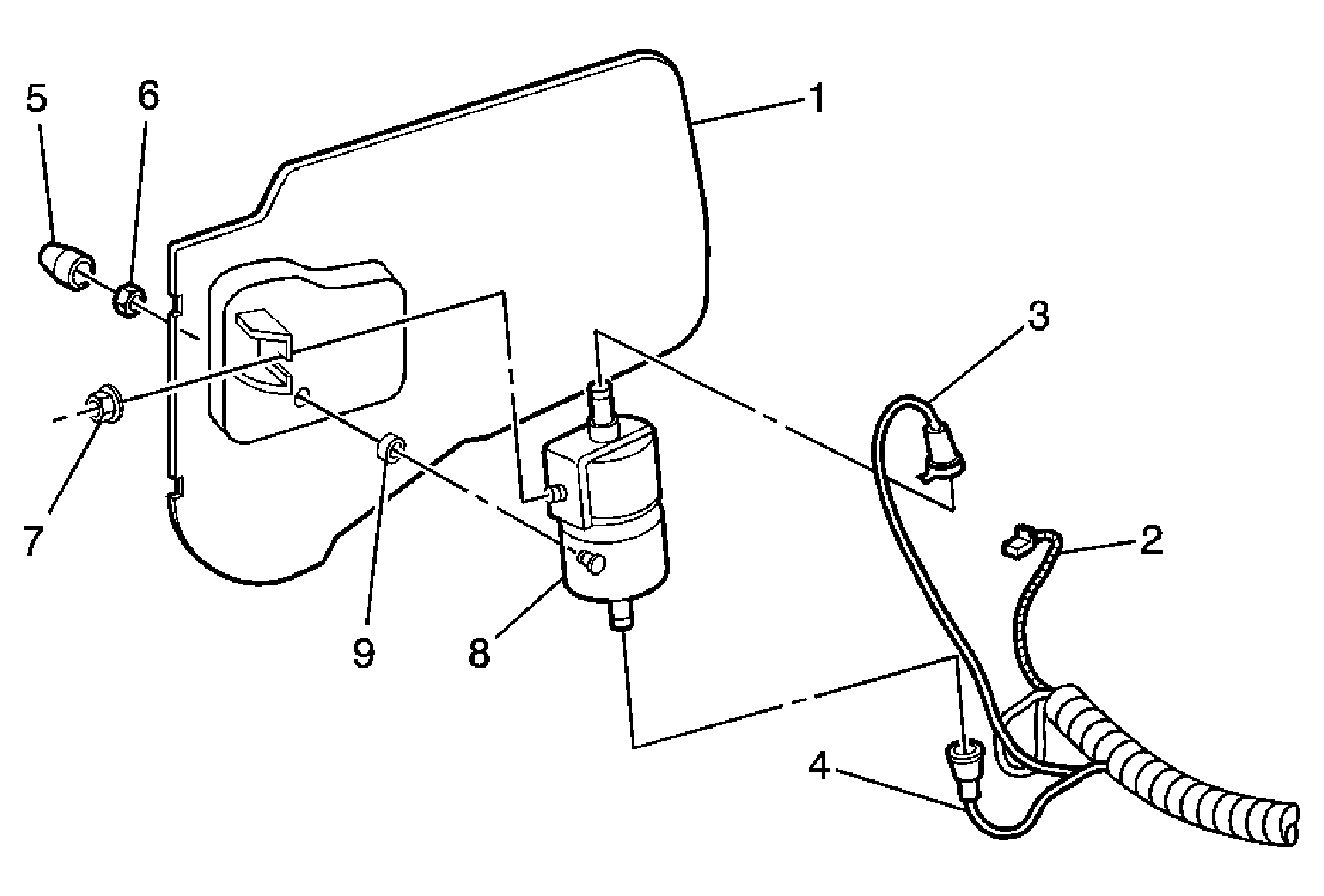

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Lower Rear Left Quarter Trim Panel- Refer to Trim Panel Replacement - Rear Quarter - Left . |
| 2 | Solenoid Auto Level Control Connector |
| 3 | Rear Suspension Strut Air Tube |
| 4 | Auto Level Control Air Compressor Tube |
| 5 | Auto Level Control Solenoid Inflator Valve Opening Cap |
| 6 | Auto Level Control Solenoid Valve Nut |
| 7 | Auto Level Control Solenoid Valve Washer |
| 8 | Auto Level Control Solenoid Valve Nut Tighten: 2.8 N.m (24.8 lb in) |
| 9 | Auto Level Control Solenoid Valve |
