Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the right engine splash shield. Refer to Splash Shield Replacement - Engine in Body Front End.

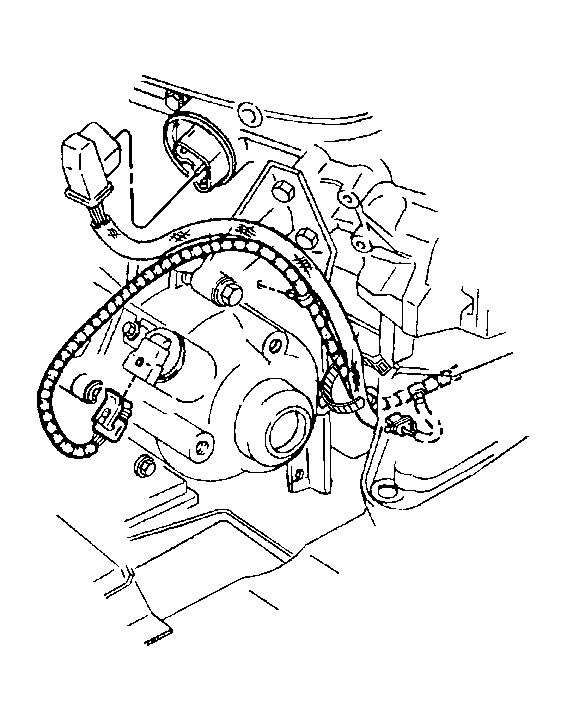

    4. Fig 1: View Of Vehicle Speed Sensor Wiring Harness Connector
    GM161096Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the vehicle speed sensor wiring harness connector.
    5. Fig 2: Identifying Vehicle Speed Sensor (VSS)
    GM10516Courtesy of GENERAL MOTORS CORP.
  5. Remove the vehicle speed sensor bolt (9).
  6. Remove the vehicle speed sensor (10) from the extension case.
    7. Fig 3: View Of VSS & O-Ring
    GM10711Courtesy of GENERAL MOTORS CORP.
  7. Remove the O-ring seal (11) from the vehicle speed sensor (10).
    8. IMPORTANT: Handle the vehicle speed sensor (10) carefully.
  8. Inspect the vehicle speed sensor and O-ring seal for the following:
    • Damaged connector
    • Cracked housing
    • Signs of rotor damage
    • Cuts or nicks on the O-ring seal (11)
