Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

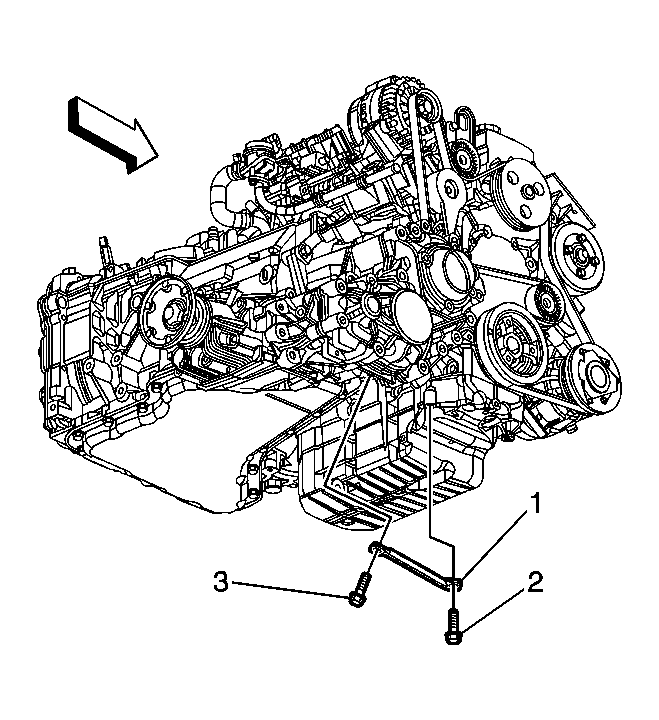

    2. Fig 1: Removing/Installing Transmission Brace (All Wheel Drive)
    GM1544759Courtesy of GENERAL MOTORS CORP.
  2. Remove the transaxle brace bolts (2, 3).
  3. Remove the transaxle brace (1).
