Transmission Identification Information
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

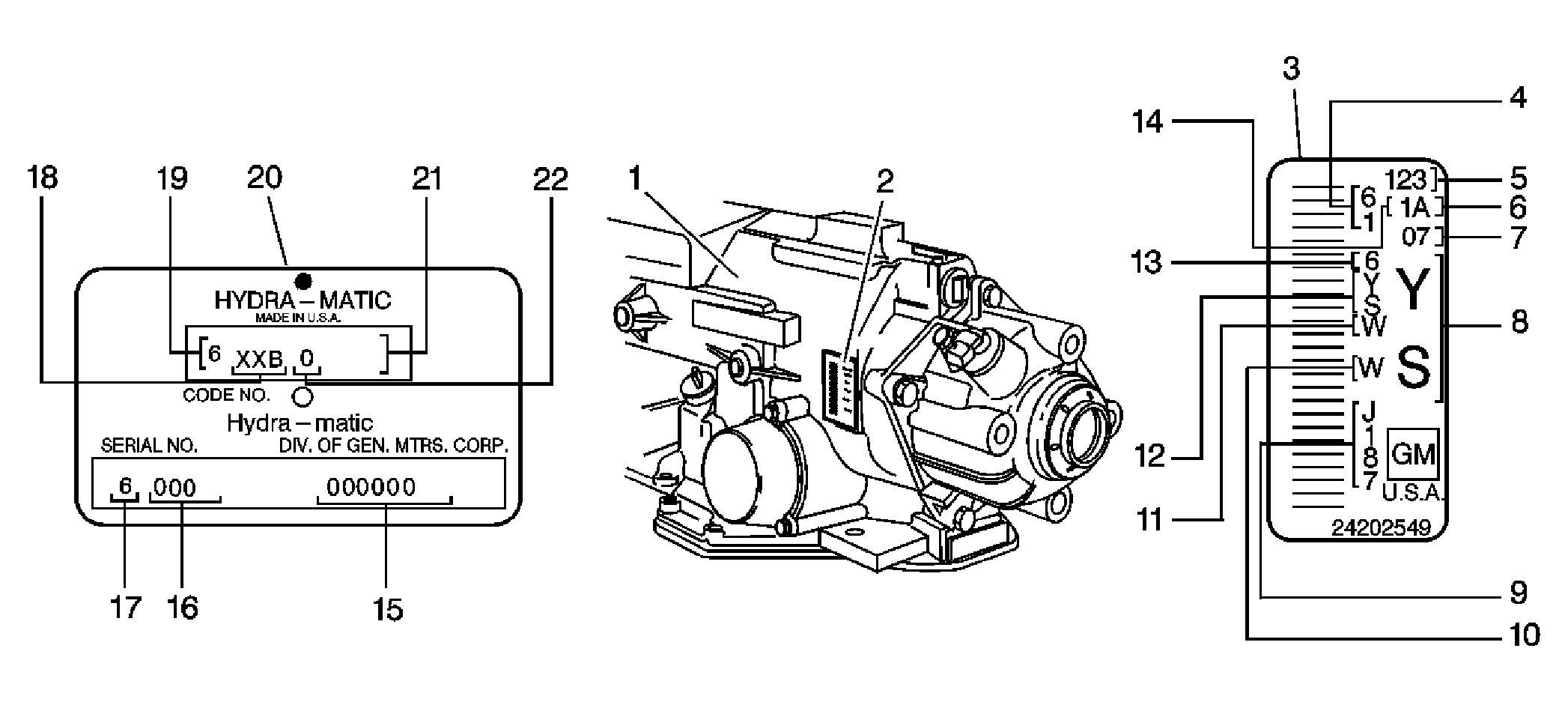

| Callout | Component Name |
|---|---|
| 1 | SRTA Tag Location |
| 2 | Transmission ID Location |
| 3 | Hydra-Matic 4T65-E ID Tag |
| 4 | Transmission |
| 5 | Julian Date |
| 6 | Shift Built A = First Shift; B = Second Shift; C = Third Shift |
| 7 | Update Level |
| 8 | Model |
| 9 | Serial Number in Base Code 31 |
| 10 | W = Warren Plant |
| 11 | Hydra-Matic 4T65-E |
| 12 | Model |
| 13 | Model Year 6 = 2006 |
| 14 | Line Built 1 = Line 1; 2 = Line 2; 3 = Line 3; 4 = Line 4 |
| 15 | Serial Number |
| 16 | Julian Date |
| 17 | Calendar Year 6 = 2006 |
| 18 | Model |
| 19 | Model Year 6 = 2006 |
| 20 | Hydra-Matic 4T65-E SRTA Tag |
| 21 | Control Number |
| 22 | Transmission |
