Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Service the generator as a complete unit.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the windshield wiper transmission link in front of the wiper motor and position out of the way. Refer to WIPER MOTOR MODULE REPLACEMENT in Wiper/Washer Systems.
  3. Rotate the engine forward. Refer to ROTATING THE ENGINE FOR SERVICE ACCESS in Engine Mechanical - 3.5L.
  4. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical - 3.5L.

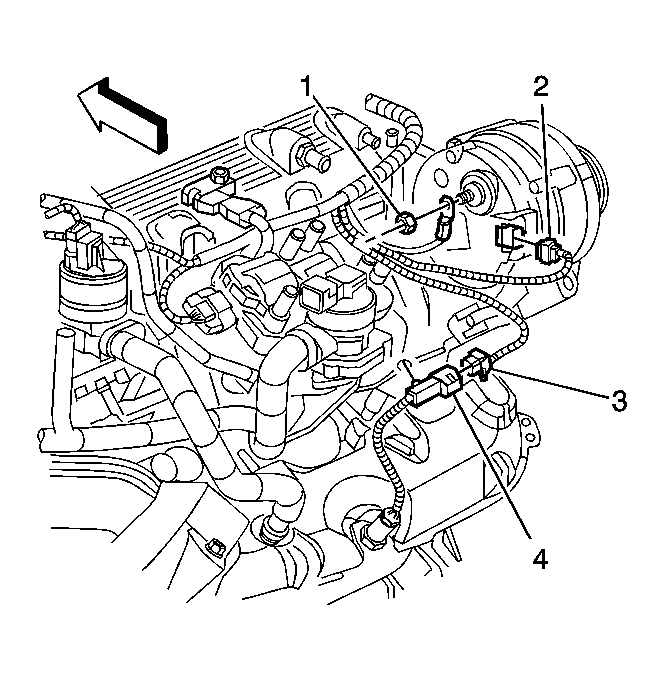

    5. Fig 1: Disconnecting/Reconnecting Generator Battery Positive Terminal
    GM1544748Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the generator battery positive terminal (1).
  6. Disconnect the regulator electrical connector (2).

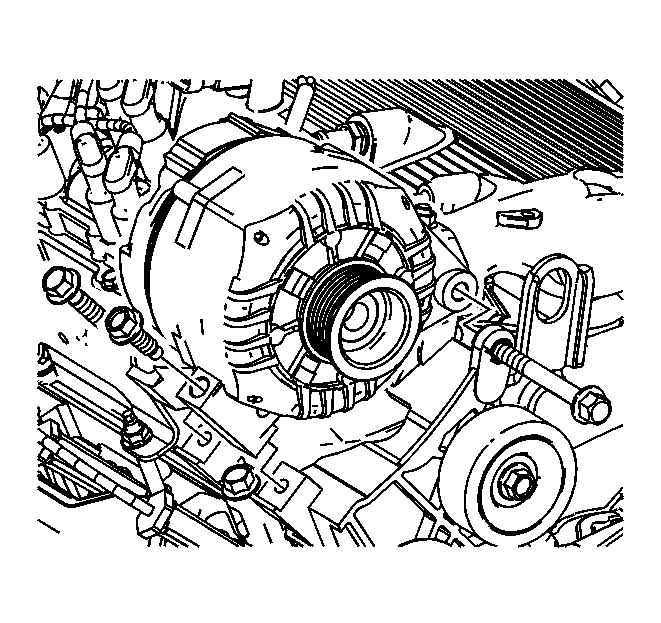

    7. Fig 2: Removing Generator Mounting Nuts And Bolts (3.5L)
    GM1239071Courtesy of GENERAL MOTORS CORP.
  7. Remove the generator mounting nuts and bolts.
  8. Remove the generator.
