Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator. Refer to Generator Replacement (LX9) .
  2. Remove the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT in Engine Mechanical-3.5L.

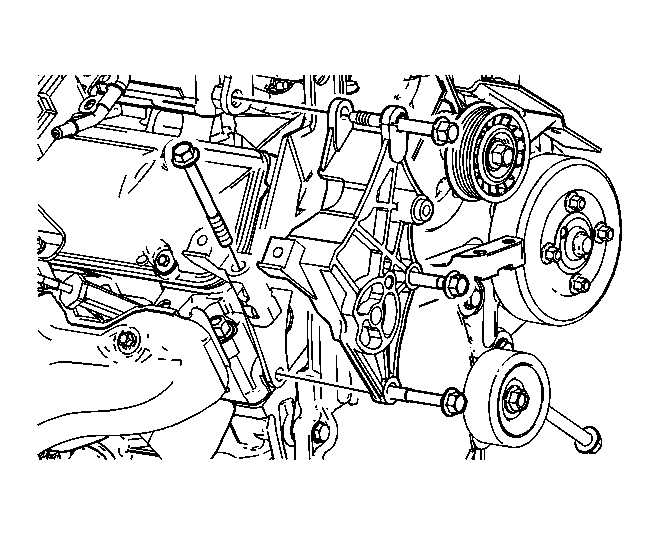

    3. Fig 1: Removing Generator Bracket Bolts
    GM1239046Courtesy of GENERAL MOTORS CORP.
  3. Remove the generator bracket bolts.
  4. Remove the generator bracket.
