Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

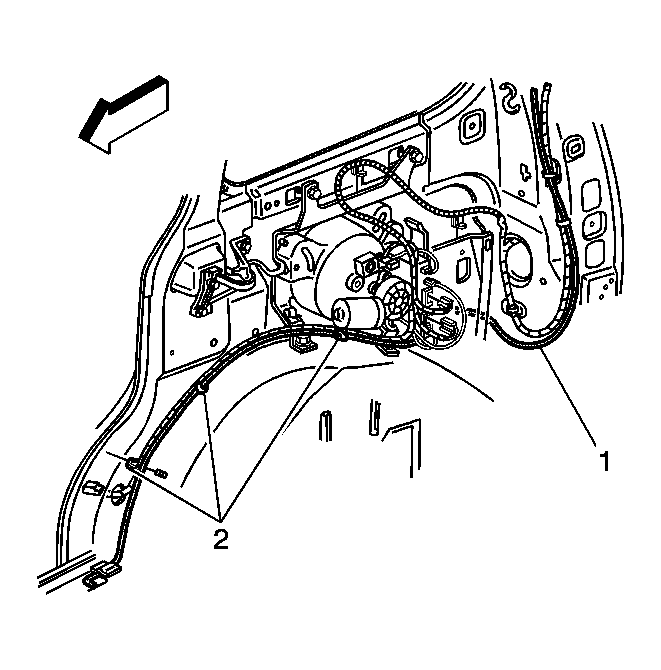

    Fig 1: Routing Washer Hose
    GM1480129Courtesy of GENERAL MOTORS CORP.
  1. Route the rear washer hose (1) along the right side of the vehicle and secure the retention clips (2).
    2. Fig 2: View Of Washer Pump Components
    GM1480131Courtesy of GENERAL MOTORS CORP.
  2. Apply washer solvent to the rear washer hose ends in order to secure to the liftgate connection (3).
  3. Position the headliner and secure in place. Refer to Headliner Replacement .
  4. Install the rear washer hose end through the opening in the dash panel.
  5. Tape the washer hose to the electrical harness loom approximately every 101.6-127 mm (4-5 in) apart beginning at the rear and working forward to the washer hose dash panel grommet.
    6. Fig 3: Disengaging/Reengaging Washer Hose Grommet
    GM1480128Courtesy of GENERAL MOTORS CORP.
  6. Secure the washer hose grommet (2) to the front dash panel (1).
    7. Fig 4: View Of Washer Pump Components
    GM512031Courtesy of GENERAL MOTORS CORP.
  7. Connect the forward portion of the rear washer hose to the washer solvent container, rear washer pump spout.
  8. Install the rear quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter - Right .
  9. Install the lower center trim panel. Refer to Trim Panel Replacement - Lower Center Pillar .
  10. Install the right cowl trim panel. Refer to Trim Panel Replacement - Cowl Side .
