Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Thermostat Housing

Courtesy of GENERAL MOTORS CORP.

NOTE: refer to FASTENER NOTICE in Cautions and Notices.

Position the thermostat housing.
Install the thermostat housing bolt/stud.
Tighten: Tighten the bolt to 2.5 N.m (18 lb in).

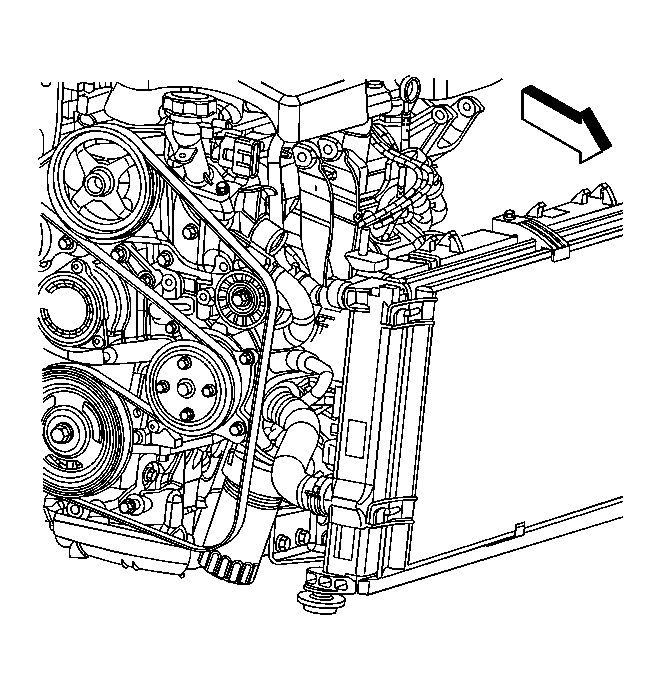

Fig 2: View Of Radiator Inlet & Outlet Hoses

Courtesy of GENERAL MOTORS CORP.

Install the radiator outlet hose to the thermostat housing.
Using a small flat-bladed screwdriver, release the hose clamp retention lock at the thermostat housing.
Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill) .
