Installation Procedure
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

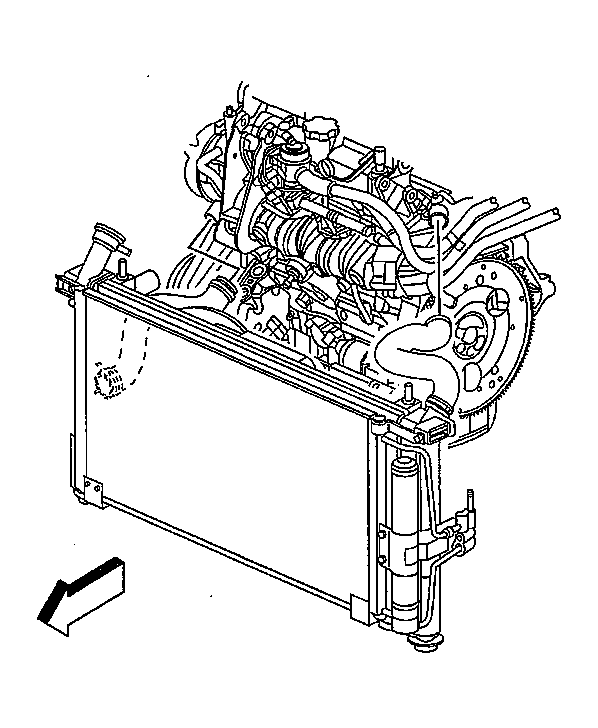

- Position the thermostat housing.
- Install the thermostat housing bolts.
Tighten: Tighten the bolt to 2.5 N.m (18 lb in).
- Install the radiator inlet hose to the thermostat housing.
- Using a small flat-bladed screwdriver, release the hose clamp retention lock at the thermostat housing.
- Install the air cleaner intake duct.
- Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill) .
